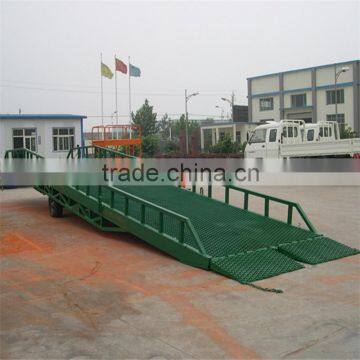

Help Center10T Capacity Hydraulic Tailgate Lift Container Yard Ramp
Related Products
-
Hot Sale True Win Factory Container Loading RampsUS$ 4,500 - 5,000MOQ: 1 Set -
Container Loading Ramp/forklift Loading RampsUS$ 4,500 - 5,000MOQ: 1 Set
-
10t Mobile Container Manual Lift Yard Ramp for SaleUS$ 4,500 - 5,000MOQ: 1 Set
-
Container Loading Ramp for Forklift 8.0T CapacityUS$ 4,500 - 5,000MOQ: 1 Set
-
Warehouse Mobile Container Ramp Hydraulic Truck Loading Ramp for ForkliftUS$ 4,500 - 5,000MOQ: 1 Set
Good quality dock ramp foldable steel loading ramp
- All-steel welded construction.
- Capacities from 4t to 30t.
- Wide range of capacities and sizes offered.
- Solid rubber tires standard, pneumatic tires optional
- Steel serrated grating.
- Double-action hydraulic pump.
Mobile Loading Dock Ramp Information | ||
1> The regular mobile of this ramp is : width -2m length -11.2m, | ||
2> Adjusting height range -0.8m-1.85m, | ||
3> And it aslo can be designed and produced accordign to customers requirements . | ||
4> This machine is suit for :often materail handling ,warehouse .wharf ,logistics center working place | ||
Mobile Loading Dock Ramp (with landing gear) Dimension | ||
1 | Model Number: | DCQY -10 |
2 | Rated Loading Capacity: | 10 Ton |
3 | Working form: | With landing gear (manual one) |
4 | Max adjustable height: | 1800mm |
5 | Overall length* Overall width: | 11200*2100mm |
Platform Size: | 2400*2100mm | |
Slope Size: | 7500*2100mm | |
6 | Table Material: | Gear steel grating (Function:anti-skidding, avoid ponding) |
7 | Lifting plate: | Size:1000mm Plate Lip: 300*20mm |
8 | Landing gear | Quantity: 1 Pair Static Load: 40 TON |
9 | Solid tire | Size: 500-8B Diameter:450MM |
10 | Safety locking | Quantity: 2 pcs |
Function: lock the container when loading and unloading | ||
Foldable front lips(12mm steel plate) can meet the height changes of trucks.
Moves easily on two big pneumatic tires(solid tires available).
A manual 2-speed hand crank for easy one-person height adjustment.
(Optional hydraulic pump or hand crank for positioning yard ramp height).
Our products are widely used in terminals, stations, warehouses and other places. According to the different
needs of users, as the special design in terms of dimensions, load bearing and so on. Hydraulic loading ramps
mounted on the side of the dock, and the dock floor and sides flush
Details&parts:
