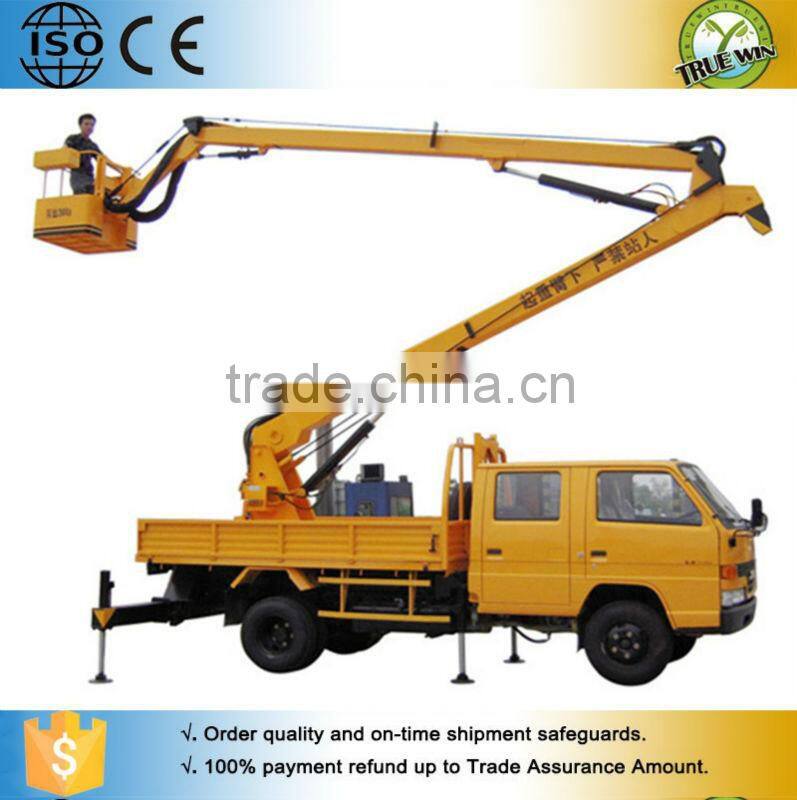

10m Diesel engine vehicle mounted boom lift platform
The 10m Diesel engine vehicle mounted boom lift platform for high-altitude operations. It can stride across the barriers to work , especially expert in working on the rough terrain narrow and rugged with four hydraulic automatic legs or only single one.
1. With full-automatic hydraulic legs, articulated booms, self-propelled, move upside and down automatically.
2. Double control methods. Worker could operate lift in up work basket or drive seat.
3. 360 degree rotation in the aerial, could across the barriers.
4. Diesel power, suitable for outdoor work in long range.
5. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
6. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
7. Emergency decline valve: it can go down when you meet an emergency.
The 10m Diesel engine vehicle mounted boom lift platform can also stride across without external power supply etc, so they are widely used in highways, boat yards shopping walls, stadiums, residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction.
Paremeters:
| model | LHSJZ-6 | LHSJZ-8 | LHSJZ-10 | LHSJZ-12 | LHSJZ-14 |
| max working height | 7.7 | 9.7 | 11.7 | 13.7 | 14.7 |
| max working radius | 1.5 | 2.2 | 2.7 | 3.2 | 3.5 |
| rotation range | 360° | 360° | 360° | 360° | 360° |
| loading capacity | 160 | 160 | 160 | 160 | 160 |
| overall size | 2.3*0.9*2.1 | 3.0*1.2*2.5 | 4.0*1.7*3.0 | 5.0*1.9*3.0 | 5.5*2.0*3.0 |
| weight | 1500 | 1700 | 1800 | 1900 | 2000 |
| lifting speed | 0.04-0.07 | 0.04-0.07 | 0.05-0.09 | 0.05-0.09 | 0.05-0.09 |
| working pressure | 10 | 10 | 10 | 10 | 10 |
| walking speed | 15-20 | 15-20 | 15-30 | 15-30 | 15-30 |
| anti-wind capacity | ≤5 level | ≤5 level | ≤5 level | ≤5 level | ≤5 level |
Also we provide special design and order.
Our service :
1. All the machines will be full tested before shipment
2. The total machine guarantee is 12 moths
3. Reply your inquiry in 24 working hours
4. Customized design is available,OEM are welcomed
5. Delivery the goods to our customer all over the world with speed and precision
6. Offer customer the lowest price with high quality lifting machine
Shandong true win construction materials co.,ltd is a professional manufacturer of aerial working platforms,logistics equipments and handling equipment for logistics ,Our company mainproducts are: Mobile scissor lift, Self-propelled lift, Stationary scissor lift, Aluminum alloy lift , Crank arm type lift, Guide rail lift, and Hydraulic yard ramp,have 8 series and more than 60 varieties. They are widely used for many industries such as plant maintenance, industrial installation, equipment's repair and maintenance, property management, warehouse, airport, port, station, gas station, stadium, museum, exhibition hall. All of our products have passed the detection of Check station of China Special Equipment and Manufacture License of Special Equipment of People's Republic of China and also has passed ISO9001--2000 quality system certification , the quality and performance of our products have won acceptance,all its products are not only sold well at home, but also exported to 30 countries around the world,mainly in Europe , south-Africa ,middle-east,south-east Asia,USA and south-Africa.Our products can fully meet the needs of different customers ,If you are interested in our products, please feel free to contact us for more information. We will be your the best reliable friend with our complete product range, excellent product quality and best sales services.
