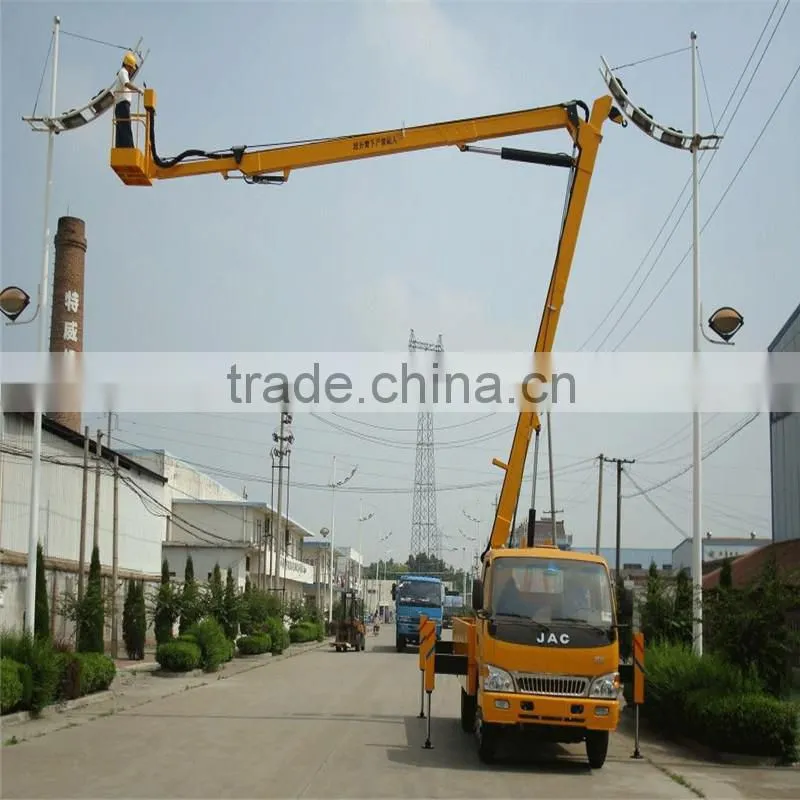

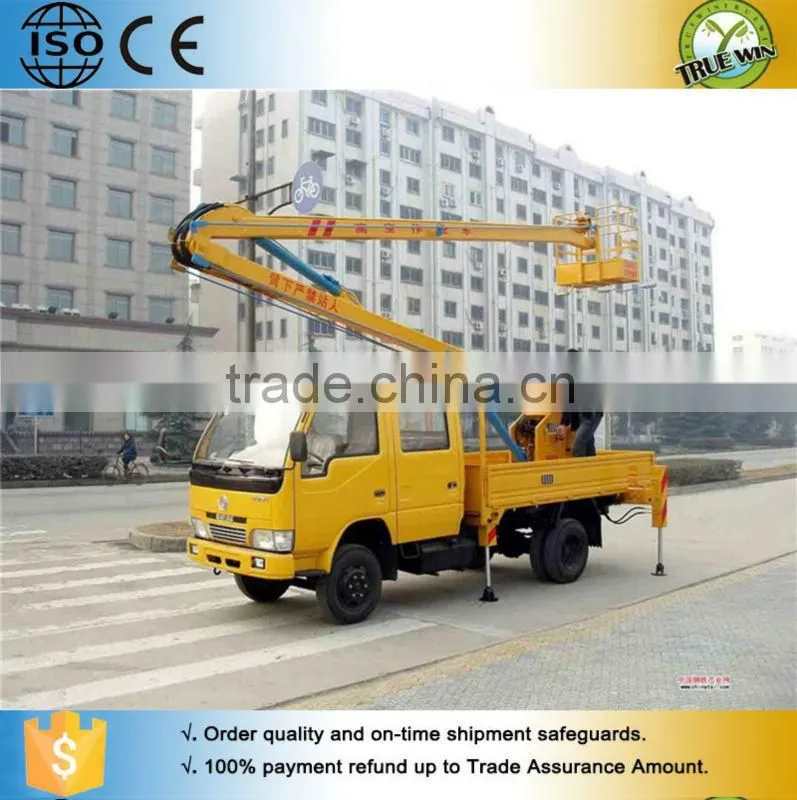

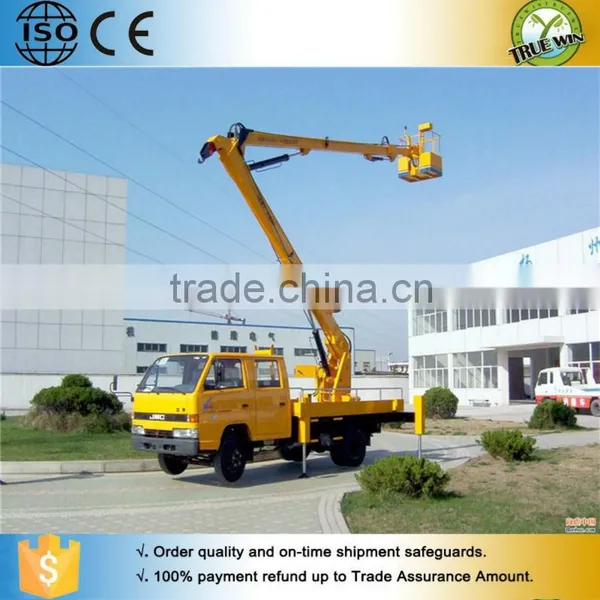

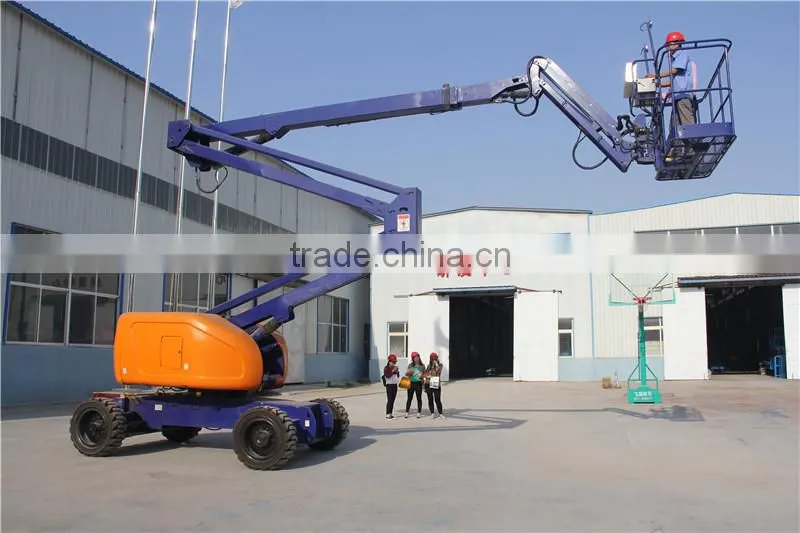

Truck mounted aerial platform for Bridge Inspection Hydraulic boom lift
- 5000 Set / Sets per Month
- QING DAO
- T/T L/C D/P D/A Credit Card PayPal
- China easy operated scissor lift platform, truck mounted platform scissor lift
- China low cost hydraulic elevating platform, truck mounted platform scissor lift
- 2015 hot sale double ladder stop type hydraulic scaffolding lift
- Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
- China factory direct sale self propelled scissor lift table / hydraulic scissor lift
- China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
Place of Origin: | Shandong, China | Brand Name: | TRUE WIN | Model Number: | LHSJZ6-13 |
Lift Mechanism: | Articulated Lift | Lift Drive / Actuation: | Hydraulic | Power: | 12KW |
Rated Loading Capacity: | 160KG | Min. Lifting Height: | 7.7M | Max. Lifting Height: | 14M |
Table Size: | 1100*650mm | Overall Dimensions: | 7400*1890*3110 | Weight: | 1500-2000KG |
Certification: | CE / ISO 9001 | Warranty: | 1 YEAR | After-sales Service Provided: | Overseas third-party support available |
Product Description
-- Perfect performance and beautiful shape
-- Max height 14.7m
-- Capacity 160kg
-- Certificate CE
-- Light, easy to move, diesel engine (batteries is alternative)
-- Rotate 360°, and being able to across obstructions, large operation area. 360°
-- With articulating boom structure, be rotary to 360°, having the special function .
-- Smart structure, takes light intensity light steel.
-- One stop but different points operation.
-- In case of rough road, it not only supports with the four legs but also with only one leg. It is easy for operation efficiency.
Our products can be made by your needs.
Model | Working height | Working radius | Traveling angle | Total dimension | Total weight | Lifting speed | Working pressure | Traveling speed | Max endurable wind grade | Loading capacity |
(M) | (M) |
| (MM) | (KG) | (M/S) | (Mpa) | KM/H | (KG) | ||
LHSJZ-6 | 7.7 | 1.5 | 360° | 2300x900x2100 | 1500 | 0.04-0.07 | 8 | 15-20 | ≤5 | 160 |
LHSJZ-8 | 9.7 | 2.2 | 360° | 3000x1200x2500 | 1700 | 0.04-0.07 | 8 | 15-20 | ≤5 | 160 |
LHSJZ-10 | 11.7 | 2.7 | 360° | 4000x1700x3000 | 1800 | 0.05-0.09 | 10 | 15-30 | ≤5 | 160 |
LHSJZ-12 | 13.7 | 3.2 | 360° | 5000x1900x3000 | 1900 | 0.05-0.09 | 10 | 15-30 | ≤5 | 160 |
LHSJZ-13 | 14.7 | 3.5 | 360° | 5500x2000x3000 | 2000 | 0.05-0.09 | 10 | 15-30 | ≤5 | 160 |
1.After working, the lift platform must be fold and should be cut power supply off.
2.The machine should be kept inside room.
3.The joint of machine must be lubricated frequently.
4.The seal ring should be changed immediately when it does not work well.
5.The hydraulic components must be cleaned enough when they are changed. If the component is not available, the input part of oil cylinder should be sealed to prevent the crash and eyewinker of oil system.
6.The hydraulic oil must be changed in two months when the machine is first used. And afterward the hydraulic oil should be changed by the working situations. (Hydraulic oil NO.10 in summer, and winter 30#)
7.Electronics Automatic leveling: more accurate and reliable.
self proprlled boom lift
car carrying boom lift

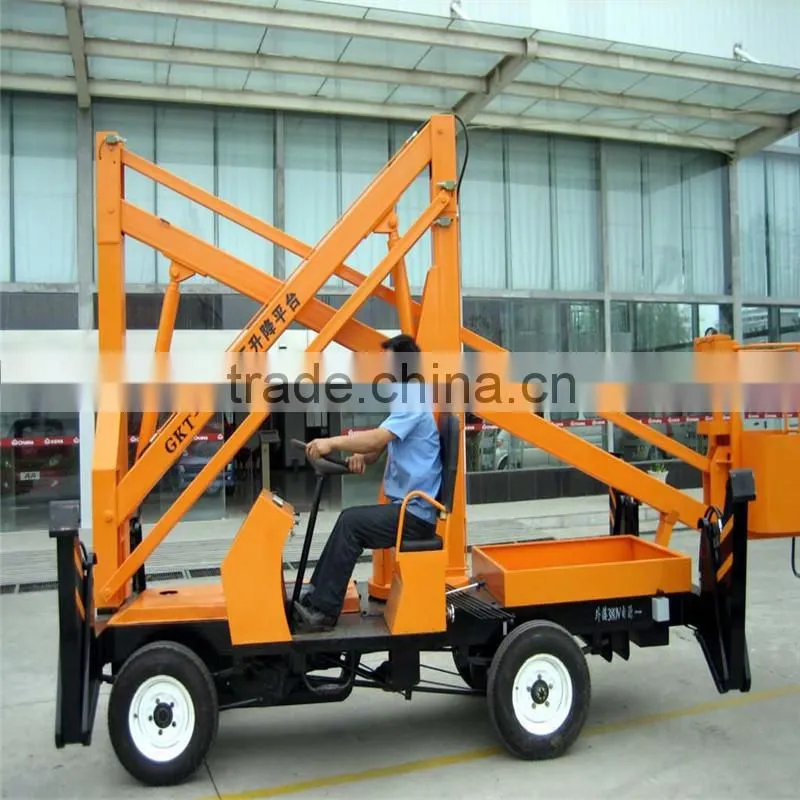

diesel articulated lift
Two sources of power:Storage battery and Diesel engine.And the storage battery works without noise.

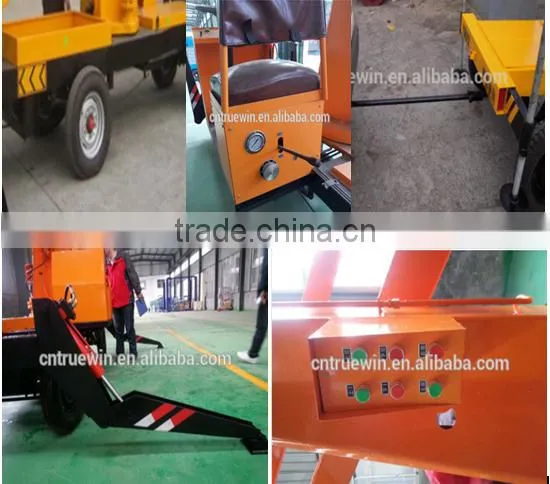

With four full-automatic hydraulic legs,it can be more stable.
Boom rotation 360°, so it can work across the barriers.
We are a professional manufacturer of kinds of Hydraulic Lift in China. Welcome to visit our website for more details
1.All the machines will be full tested before shipment
2. The total machine guarantee is 12 moths
3. 24 Hours technical support, email, telephone or video online
4. User-friendly english manual for machine using and maintaining
5. Several sets wearing parts will be free for you
Shan Dong True Win Construction Material Co.,Ltd is a professional manufacturer of aerial working platforms,logistics equipments and handling equipment for logistics ,Our company main products are: Mobile scissor lift, Self-propelled scissor lift, Stationary scissor lift, Aluminum alloy lift , Crank arm type lift, Guide rail lift, and Hydraulic yard ramp,have 8 series and more than 60 varieties. They are widely used for many industries such as plant maintenance, industrial installation, equipment's repair and maintenance, property management, warehouse, airport, port, station, gas station, stadium, museum, exhibition hall. all of our products have passed the detection of Check station of China Special Equipment and Manufacture License of Special Equipment of People's Republic of China and also has passed ISO9001-2000 quality system certification , the quality and performance of our products have won acceptance,all its products are not only sold well at home, but also exported to 30 countries around the world,mainly in Europe , south-Africa ,middle-east,south-east Asia,USA and south-Afr ica.Our products can fully meet the needs of different customers ,If you are interested in our products, please feel free to contact us for more information.we will be your the best reliable friend with our complete product range, excellent product quality and best sales services.
Q:Who are you? Trade Company or manufacturer?
A: We are manufacturer and we have our own trade company.
Q: When the product can be delivered?
A: Commonly the lead time will be within 15 days after payment.
Q:What’s the Min order to your company?
A:1 set.The sample order, if we have stocks, we will send out the products within 1 week.
Q:What’s the advantage of your company?
A:We have exported our lifts and service to more than 100 countries. We have speclized team work for you, you will get our feedback within 24 hours./ Germany and Italian advancedmanufacturering technology.
Q:What need you know when i inquiry to you ?
A: We need to know your Max Capacity,Platform size and Lift height.
