4G RAM 512G SSD Mini Desktop PC Case with Fan 1.7Ghz CPU RJ45 HD VGA COM Wifi Support
AMD E2 1800 MINI PC
Model |
Parameter Description |
RAM |
SSD/HDD |
Package |
N340 |
VGA, HDMI, USB2.0 * 4, RJ45 Network port, audio input / output, onboard two COM ports (the shell does not support), Support Bluetooth, Not support HDD High quality iron shellAMD E2-1800 dual-core 1.7GHZ |
SO-DIMM DDR3 204PIN Max. 4G RAM (1G, 2G, 4G) |
Support Only Msata SSD Max. 512G (8G,16G,32G,64G,120G,256G,512G) |
335*240*75 (mm) & 1.3kg |
Cost-effective N340 mini PC
Partaker N340 Product description
High End quality
Excellent User Experience
High compatibility
Special smart design
Specification:
Master Control | |
CPU |
AMD E2-1800(Dual core 1.7G) |
Built-in OS |
WIN XP SP3(By default) |
Display | |
Graphics card |
AMD Radeon HD7340 Core hd graphics card |
Resolution |
Max 1920×1200,32bit color depth,60Hz |
Memory | |
RAM |
SO-DIMM DDR3 204PINS (Max. 4G RAM) |
Hard Disk |
All sizes of Msata SSD |
Sound card |
HD Multichannel Sound Card ALC662 |
Ethernet |
10/100/1000Mbps self-adaption |
WIFI |
802.11.b/g/n(300Mbps wifi Optional) |
I/O Port |
|
Display port |
VGA+HDMI |
USB2.0 |
4 |
Ethernet port |
RJ45 Lan port,RTL8111E 1000M |
Power input port |
1 Inner diameter 2.5mm, External diameter 5.5mm |
Audio |
Standard 3.5 Audio input and output |
Appearance | |
Machine size |
200X200X40(MM) |
Weight |
Machine weight:Less than 1.0Kg Packed weight: about 1.4Kg |
Power and Working Environment | |
Input |
DC100-240 V AC/50-60Hz |
Output |
DC12V/3A |
Type |
External power adapter mode |
Consumption |
17W |
Noise |
0 Decibel |
Temperature |
Vertical 0-40 Centigrade |
Humidity |
10%-85% |
Partaker N340 features
1.Ultra low energy consumption, CPU AMD E2-1800 series,only 17W full consumption.
2.High display performance,adopt ultra hd graphics that supports HDMI 1080P full hd output.
3.N340 features a better price/performance ratio,the high speed performance can fulfill all requirements of Education, virtualization, office, games, hotel rooms etc.
4.The case of N340 uses high carbon fiber compound material, it features light weight and has a perfect antiknock compressive ability, its overall beauty of line and smart design make the computer more strong and high grade. N340 can stand, lie or hang, this is a preferred TC equipment system integration project.
Upgrade Service:
1. WiFi Optional, if need wifi, double antenna builtin wireless add extra $8(150Mbps), add $10(300Mbps) . Choose one from 150M and 300M.
2. USB Bluray DVD add $48, Normal DVD add $28

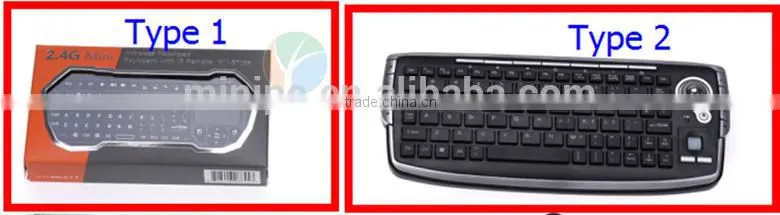

3. 2.4G Air mini Keyboard and Mouse add $18 (choose one type)
4. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.
Ref. Photo as belows,
(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, 300M wifi,
buy 10pcs for $10, Upgrade value, 1pc=$1)
System:
4G RAM, 512G SSD included
1. DDR3 NB Memory SO-DIMM- - 1.5V-1G- $11
2. DDR3 NB Memory SO-DIMM--1.5V- 2G- $21
3. DDR3 NB Memory SO-DIMM--1.5V-4G- $4
1. DDR3L NB Memory SO-DIMM-1.25V-1.35V-2G- $24
2. DDR3L NB Memory SO-DIMM--1.25V-1.35V-4G- $44
Tips:
1.5V is normal voltage
1.25V-1.35V is low voltage
mSATA 8G: $11
mSATA 16G:14
mSATA 32G: $18
mSATA 64G: $33
mSATA 128G: $53
mSATA 256G: $93
SATA 3 128M Cache BGA-512G- $255
If customer buy the configuration with RAM, SSD, HDD, We can install as belows, XP/windows 7/Ubuntu Linux optional (if not leave message, we will ship at Random.)
