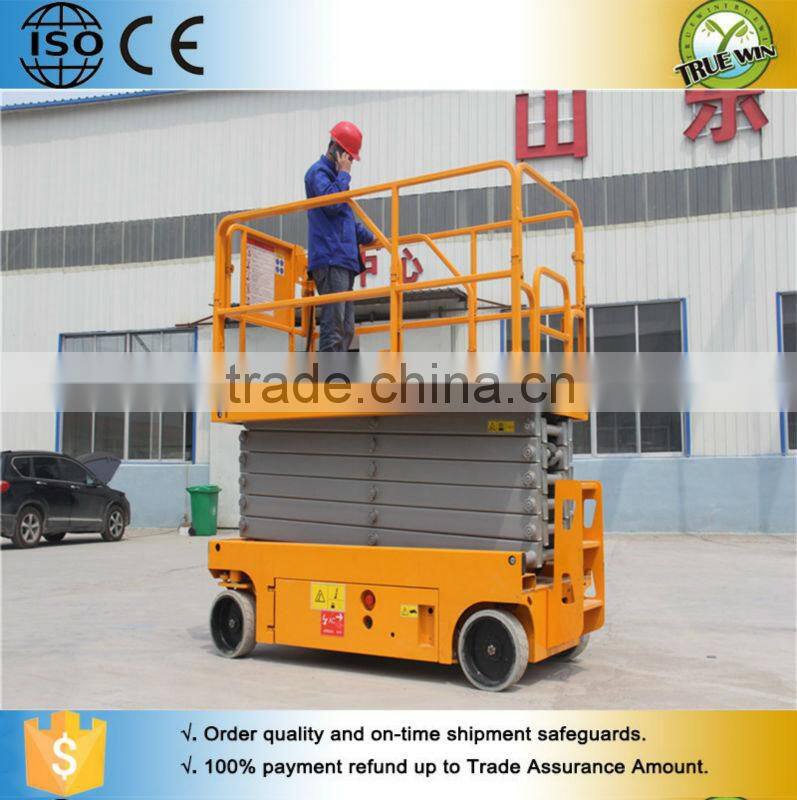

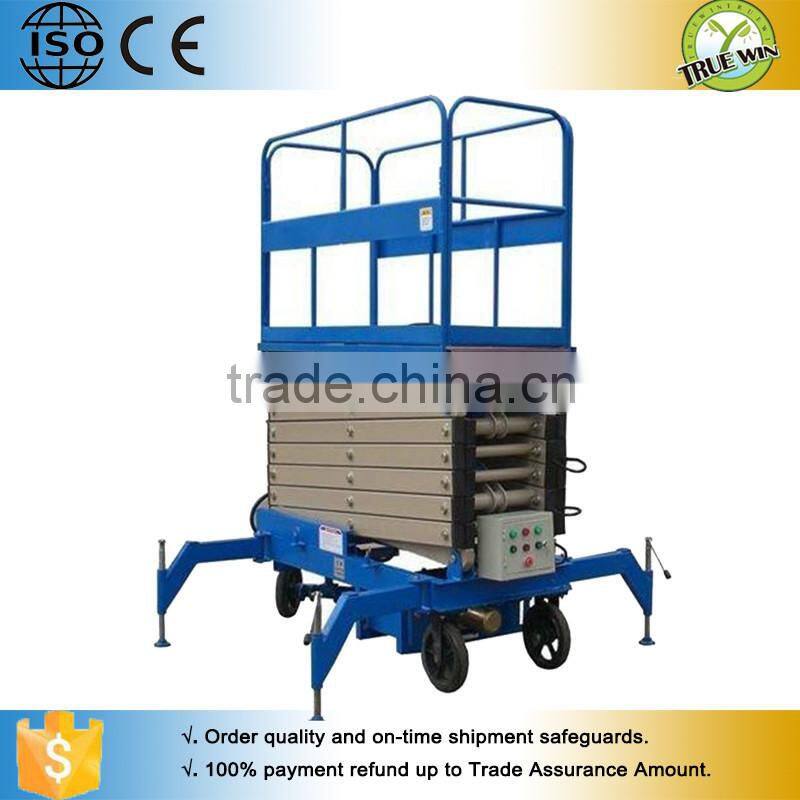

| Mobile Scissor Lift | Self-propelled Scissor Lift | Vehicle Mounted Scissor Lift | Scissor Car Lift |
| Lifting Height: 4-18m | Lifting Height: 4-18m | Lifting Height: 4-18m | Lifting Height: 4-18m |
| Loading Capacity: 500-1000kg | Loading Capacity: 500-1000kg | Loading Capacity: 500-1000kg | Loading Capacity: 500-1000kg |

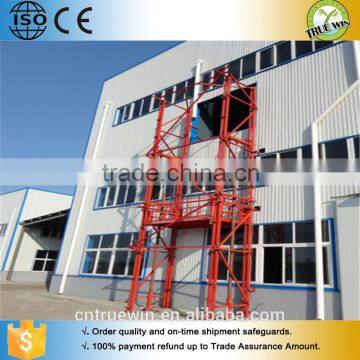

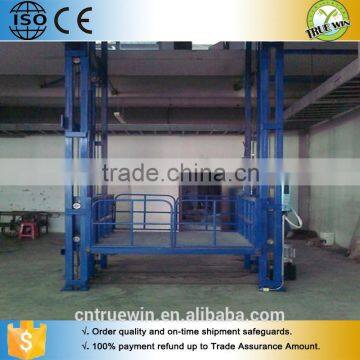

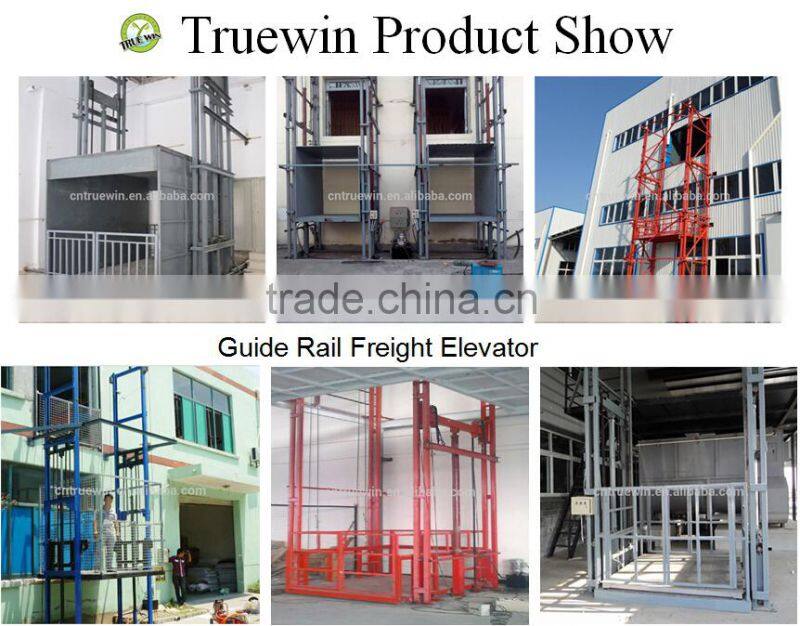

Fixed guide rail cargo hydraulic chain freight elevator
Product Description
The Fixed guide rail cargo hydraulic chain freight elevator is used for conveying cargos between different storeys,especially in the space narrow as well as inaccessible to pit excavation.
Model | Max Loading Capacity(KG ) | Max Lifting height( MM) | Min.height( MM) | Table size(MM ) | Power(KW) |
CWSJD0.5-4.5 | 500 | 4500 | 150 | 2000*1500 | 2.2 |
CWSJD1.0-4.5 | 1000 | 4500 | 150 | 2000*1500 | 3 |
CWSJD2.0-4.5 | 2000 | 4500 | 150 | 2000*1500 | 3 |
CWSJD3.0-4.5 | 3000 | 4500 | 160 | 2000*1500 | 3 |
CWSJD0.5-7.5 | 500 | 7500 | 150 | 1200*1200 | 1.5 |
CWSJD1.0-7.5 | 1000 | 7500 | 150 | 1800*1400 | 2.2 |
CWSJD2.0-7.5 | 2000 | 7500 | 150 | 2000*1500 | 2.2 |
CWSJD3.0-7.5 | 3000 | 7500 | 160 | 2000*1600 | 3 |
CWSJD1.0-10.5 | 1000 | 10500 | 150 | 1800*1400 | 2.2 |
CWSJD1.0-14 | 1000 | 1400 | 150 | 1800*1500 | 2.2 |
CWSJD3.0-4.5 | 3000 | 4500 | 160 | 5000*3000 | 4 |

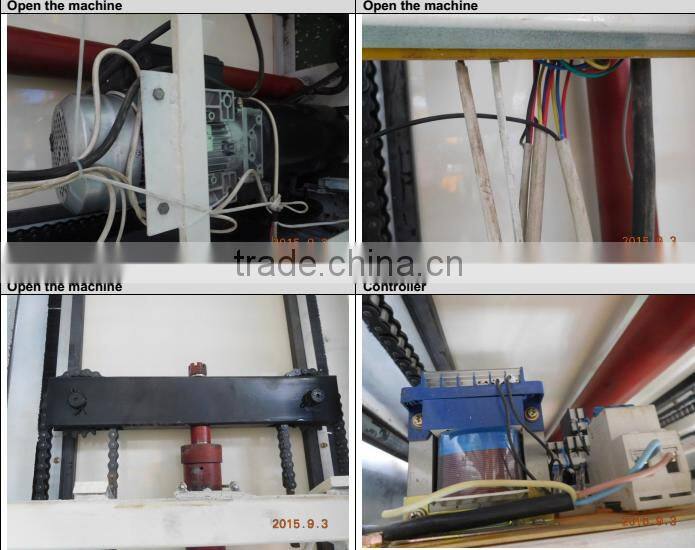

Hydraulic and lift chain as driven force.
² Lift Drive:hydraulic driven and chain
² Multi-point Control:operating buttons set on each storey and also the lifting platform
² Installation:suitable for inground and overground
² Solid Structure , big capacity , smoothly running and convenient to installation andmaintenance.
² Vide Application:Range from chemical, to electricity,nuclear industry,explosive ect.
1. Spillover valve, it can prevent high pressure when the machine moves up.
2. Manual emergency valve, it can go down to the nearest floor and open the door when you meet an emergency.
3. Manual pump: it can move up the nearest floor and open the door when you meet an emergency.
4. Pipe fracture valve, when the hydraulic system pipe fracture, it can cut down the channel of the oil to stop the falling.
5. Overload protection, when the goods on the platform is over the capacity, the overload protect device will work to stop the platform lifting up.
