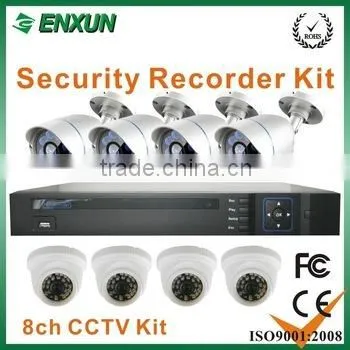

MVR-HK783 8ch DVR KIT 960P dvr security system
DVR description:
8ch AHR KIT 960P/720P HDMI,Audio&RS485,1MP 720P AHD camera,High-Definition Kit, APP: N_EYE
*VGA,HDMI,CVBS sync output
*VGA,HDMI output 1920×1080
*Support AHD and 960H Analog camera
*Support preview image or image amplification
*Support mobile phone monitoring(iPhone, Android Windows Mobile, BlackBerry,Symbian)
*Support P2P
*2kg
| Model: | MAR-1004ED |
| main processor | High-performance embedded microprocessor |
| Operating system | embedded LINUX operating system |
| video compression format | H.264 |
| display image resolution | PAL:720P @ 50FPS NTSC: 720P @ 60FPS |
| Switch model | 4ch AHD 720P or 2ch AHD 720P+2ch 960H |
| motion detection | each channel can setup 192(16×12) detection area; multi-level sensitivity; 1-6 levels adjustable |
| area mask | Suport |
| Language | English,French,German,Italy,Poland,Portugal,Russia,Spanish,Thai……. |
| audio intercom | no |
| recording mode | manual, motion,schedule,alarm |
| recording storage | HDD,network |
| recording speed | PAL @25FPS; NTSC @30FPS |
| playback | Local: 4CH ; Remote: 4CH |
| backup mode | support HDD, USBpen drive storage and backup |
| video input | 8ch with POE |
| video output | 1CH VGA, 1CH HDMI, 1CH BNC |
| audio input | 4ch channel |
| audio output | 1channel |
| alarm input | no |
| alarm output | no |
| network | 1x10/100Mbps,RJ45 interface |
| communication | RS485 |
| USB | 2 USB2.0, Support upgrade via usb pen drive |
| HDD | 1pcs SATA HDD |
| Power supply | DC +12V /5A |
| consumption | 12W( Not included HDD ) |
| temperature | 0℃-+55℃ |
| humidity | 10%-90% |
| dimension | 252*213*42mm |

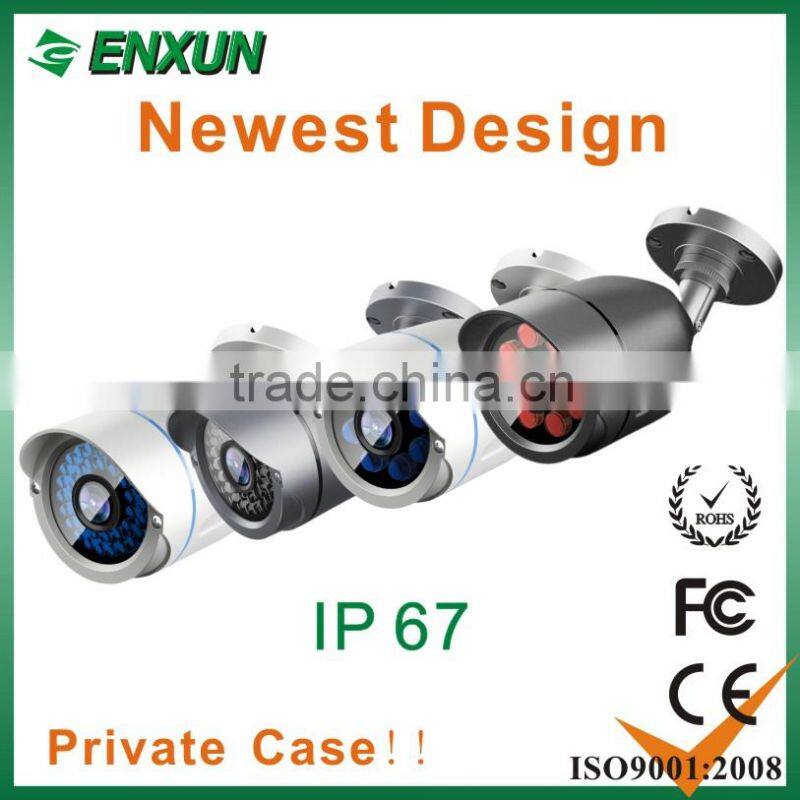

Camera specification:
1.0MP-1/4 cmos 720P, with IR-Cut,3016 Better than 9712 Bullet Camera
IR Waterproof Camera IP67
•Board Lens 3.6mm/F2.0
•6pcs Array 24pcs
•Dimension:165X62X64mm
•Weight:0.5kg
For more information, you can contact, I am online all working day, thanks!
Skype: sky19891130
QQ: 1959679327
Wechat: 18503091897
What'sApp: 0086 18503091897
Facebook: skyyu2011 at

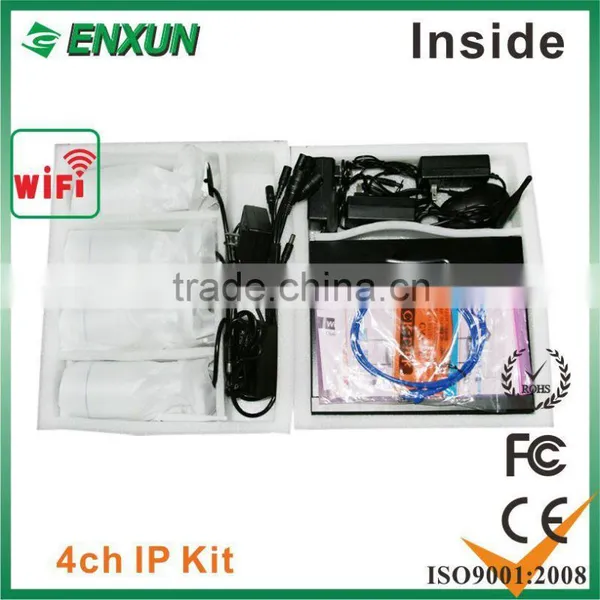

Neutral package, Color box, OEM design box
OEM Service
International Express

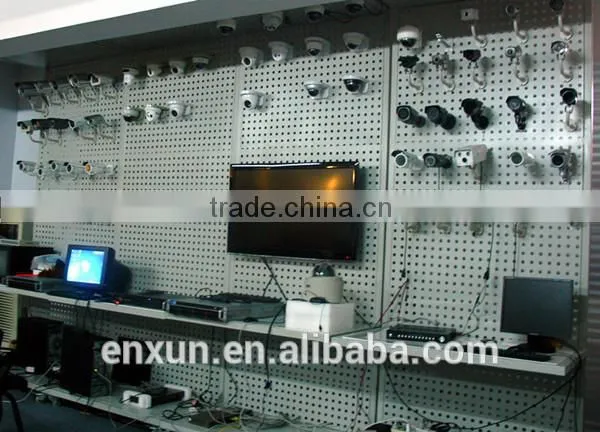

Show Room
Certification & Honor
Exhibition
Sales Team
