SMPS 700 Wallbox

Specifications

1.High efficiency, Low weight and volume are achieved through the utilization of switch mode technology.
2. Wall mounted.

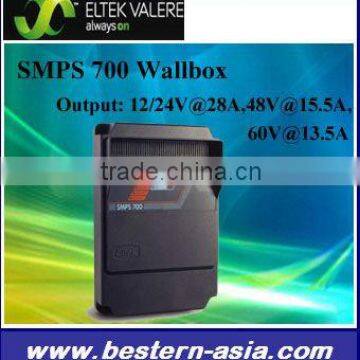

Switch Mode Power Supply: SMPS 700 Wallbox

The Eltek range of wall mounted power supplies has been specifically developed to meet the DC powering requirements for the telecommunications, industrial and marine industries. High efficiency, low weight and volume are achieved through the utilization of switch mode technology.

The SMPS 700 Wallbox offers the following features

1. Applications as a power supply or battery charger for both portable and stationary equipment
2. Power factor corrected input providing reduced harmonics and minimal input power requirements
3. Wide Input Operating Range for greater immunity
4. Automatic Overtemperature derating for increased reliability
5. Optimal recharge characteristics through Output Power Limiting
6. Alarm and Control Facilities for local and remote monitoring
7. Compliant with International Standards including Marine Applications

Input Voltage: 230V+-20% Single phase

Harmonics: According to IEC 1000-3-2

Output Voltage: 12V, 24V, 48V or 60V Nominal

Output Current: 12V/24V @ 28A, 48V @ 15.5A, 60V @ 13.5A

Efficiency: >91%

Operating Temp: -10~55degC

Dimensions: 272*370*132mm(W*H*D) / 10.7*14.6*5.2” (W*H*D)
