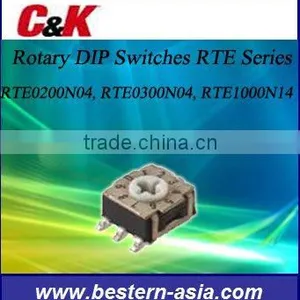

Help CenterC&K RTE1000N14 Rotary DIP Switches (RTE Series)
Related Products
-
C&K KMT211G LFS Tactile SwitchesNegotiableMOQ: 10 Pieces -
C&K S202031SS03Q Slide SwitchesNegotiableMOQ: 10 Pieces
-
7101k12CWAV2BE2, Miniature Toggle Switches,C&K SwitchNegotiableMOQ: 1000 Pieces
-
C&K 7101MD9AV2BE Tiny Pushbutton SwitchesNegotiableMOQ: 1000 Pieces
-
C&K TP12SH9AVBE Small Pushbutton SwitchesNegotiableMOQ: 1000 Pieces
Specifications
1. Original C&K RTE1000N14 X5pcs exstock2. Rotary SPDT, SP3T, SP4T functions
3. Rotary binary-decimal and hexadecimal coding
Features/Benefits
• Thru-hole and surface mount models
• Miniature size with robust stainless steel cover
• Rotary SPDT, SP3T, SP4T functions
• Rotary binary-decimal and hexadecimal coding
• RoHS compliant
Typical Applications
• Timers, automation components
• Computer and peripherals
• Alarms, access control
• Instrumentation
Specifications
CONTACT RATING:
Gold: 100 mA max. 10μ A min. 30 V DC max. 20 mVDC min.
Silver: 100 mA max. 1 mA min. 50 V DC max. 2 VDC min.
MECHANICAL LIFE: RTE02/03: 1,500 actuations; RTE04/10/16:
20,000 actuations
CONTACT RESISTANCE: 100 m½ max. initial;
150 m½ after life
INSULATION RESISTANCE: RTE02/03: 1013 ½ min.
RTE04/10/16: 1010 ½ min. initial
DIELECTRIC STRENGTH: RTE 02/03: 500 Vrms;
RTE 10/16; 300 Vrms
OPERATING TEMPERATURE: -25°C to 85°C.
STORAGE TEMPERATURE: -40°C to 85°C.
PACKAGING: N or R terminations in tube.
V termination in box. G termination in reel, 750 pieces per
reel. G termination with flush actuator, 1250 pieces per reel.
Order Information:
PC Mount-Terminal Option N
| PART NUMBER WITHOUT ESD PIN |
WITH ESD PIN | NO. POS. | Function | Qty Per Tube |
| RTE0200N04 | RTE0210N04 | 2 | SPDT | 65 |
| RTE0300N04 | RTE0310N04 | 3 | SP3T | 65 |
| RTE0400N04 | RTE0410N04 | 4 | SP4T | 65 |
| RTE1000N14 | RTE1010N14 | 10 | BCD | 65 |
| RTE1600N44 | RTE1610N44 | 10 | HEXADECIMAL | 65 |
Right Angle Mount-Terminal Option V
| PART NUMBER | NO. POS. | Function | QUANTITY |
| RTE0400V04 | 4 | SP4T | 150 per box |
| RTE1000V14 | 10 | BCD | 150 per box |
| RTE1600V44 | 16 | HEXADECIMAL | 150 per box |
Surface Mount-Terminal Option G
| PART NUMBER | NO. POS. | Function | QUANTITY PER REEL |
| RTE0200G04 | 2 | SPDT | 1250 |
| RTE0300G04 | 3 | SPDT | 1250 |
| RTE0400G04 | 4 | SP4T | 1250 |
| RTE1000G14 | 10 | BCD | 1250 |
| RTE1600G44 | 16 | HEXADECIMAL | 1250 |
