Fanless Alluminum Mini pc USB 3.0 C1037u 4G RAM 64G SSD

Celeron 1037u is currently the most competitive in cost & performance

which is what exactly people looking at today.Ultra compact form factor (UCFF),

small form factor (SFF), mini pc gained popolarity

over the last couple of years,

especially for those passive cooling series of mini-PCs.

Emphasis:

6*USB 2.0

Mini PC Rear I/O:

Fanless

Upgrade Service:

1. WiFi Optional, if need wifi,(150Mbps) single antenna builtin wireless add extra $8

2.Mounting add $3

3.1*COM Port optional add $3

4. USB Bluray DVD add $48, Normal DVD add $28

5. 2.4G Air mini Keyboard and Mouse add $18 (choose one type)

4. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.

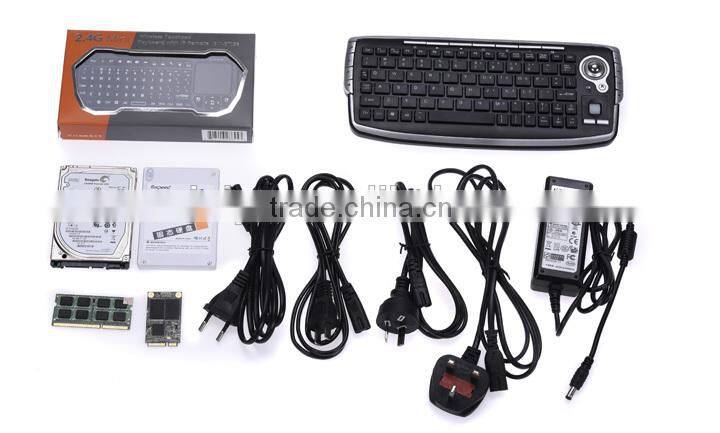

Ref. Photo as belows,

4G RAM, 64G SSD

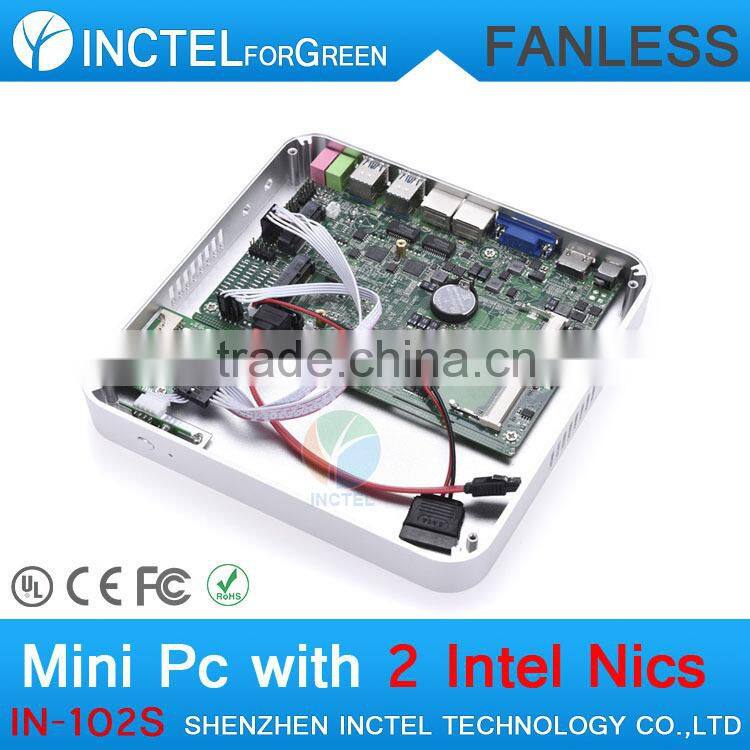

If customer buy the configuration with RAM, SSD, HDD, We can install as belows,

Major news announcement:

Slim version C1037U successful listing. Description: Size: 197X197X29MM beyond MINI thickness (36MM), and is fanless operation, first in the world. So the ultimate thickness was able to support up to 8GB memory, support for dual hard drives (one MASTA SSD, a laptop hard drive, the largest 2000GB) support 3D gaming, Blu-ray HD all solid-state, fanless, dust, the world's thinnest, the world's lowest quality to ensure foolproof, all solid design, 7X24-hour operation without pressure, current production board testing of aging 0 damage. About the detonation of the global mini-computer market. Dare, you did not expect, but we have done. This is innovation.

The world's first high-definition computer C1037U fanless successful development of today's engineering prototype has been fully tested, 7X24 hours of reliability testing PASS 55 degrees ambient temperature box running 3D 2 hour test PASS solid-state design, all with self-healing capabilities burned tantalum capacitors, inductors imported all one piece. Will bring a first-class experience, first-class quality. The low-power processor INTEL CPU is in the top, CPU performance, more than twice over D2550, D2550 Core graphics card performance over five or more.

World's first C1037U fanless mini computer world premiere
C1037U 29MM extreme ultra-thin version has a surprise listing

Features:

1. Onboard IVB platform Celeron dual-core C1037U 1.8GHz CPU ( integrated graphics HD Graphics) strong performance, overall performance over D2550 performance 2-3 times more
2. Gigabit LAN support diskless boot definition HDMI interface supports both Blu-ray 1080P HD output hardware solution software solution
3.12V external DC power supply , green, everyday use only 12W to 16W power
4. Six USB 2.0 interface fully 1000M card Wireless 150M or 300M WIFI network optional
5. Intel NM70 Express Express Chipset
6. Supports boot function calls
7. All solid , shock, drop and long-term stable and reliable operation
8. Specific system protection technology restart System Restore , all protected system , the virus can not invade
9. Exclusive RAM disk technology is mature applications , read and write speeds of up to 1300M / S, is a traditional hard drive speeds more than 20 times . All the system writes the RAM disk completed , protecting the SSD solid state disk , long service life of up to 10 years. (4 GB or more of memory optional feature )

Market positioning:

1 living room HD computer TV in the living room below , as the network after connecting TV movie player , Internet , and viewing photos to use , but also can download machine , download movies ( large capacity drives )
2 business office preferred . Online shopping mall , shop office use, environmentally friendly energy , save electricity . Only 15W power down , corporate offices , saving space. Many advantages , the typical business office committed to make.
3 rooms dedicated computer -aluminum exterior , elegant, upscale . Placed hotel is very convenient , all- solid-state design , not damaged, no dry sound , low power consumption , energy saving.
4 education industry dedicated computer terminal than the low clouds have better performance , easier software compatibility , better color , faster , more suitable for the education sector .
5 industrial computers designed for industrial users reservation and serial port, and the design of the machine , can be fully qualified for industrial applications , all solid-state design, all quiet design , the overall board design are taking into account the needs of industrial users .
6 users call center has a large number of mature applications

The picture shows the rear panel of the interface map
Parameters are described below :
• Onboard Intel Ivy Bridge Celeron dual-core C1037U 1.8GHz CPU ( integrated HD Graphics) 2M three cache , power consumption 12W fanless
• Memory DDR3 SO-DIMM *1 ( maximum support 8GB)
• 1 * RJ45 RTL8111DL 10 ~ 100 ~ 1000M Ethernet LAN
• Graphics Card Intel HD Graphics graphics core, default 256M memory, up to 1024M, support 1920 * 1080
• SATA SSD optional 8G,16G,32G,64G,120G ( or notebook hard drive 160GB 320GB 500GB 1TB 2TB)
• 4-6 x USB 2.0 ports , including two front , rear 4, 1 Extra COM port ( optional )
• Front USB and Audio Interface
• Optional ( non- standard ) 150M or 300M Super Signal Dual Antenna WIFI

Pictured on the CPU parameter information , see the number of cores , the production process has reached an advanced 22NM process
Pictured on the experience of scores WIN7 system , CPU speed of the computer experience points reached 5.8 points, but more alarming is that 3D gaming graphics score of 6.1 points
Pictured on Master Lu performance test results , showing obtained silver medals, as a slightly larger than the palm of your hand and weighs 850 grams , fanless operation , power 15W mini computer , it is already a miraculous performance

Measured reach 1.0Gbps Gigabit Ethernet LAN speed networking to ensure high-speed stability , and the perfect support for diskless applications
Under the WIN7 start 77 program startup speed of less than 20 seconds , beating 99% of computers, was named the star god machine 360 .

Detailed configuration

CPU interface BGA package CPU board stickers
Onboard Intel Ivy Bridge CPU Celeron dual-core C1037U 1.8GHz CPU ( integrated HD Graphics) CPU bus (FSB) 1024MHz
Chipset Intel NM70 Express Chipset
Three cache (L3 Cache) 2MB,, CPU integrated
BIOS AMI BIOS, ACPI supported, support caller boot function
System Memory 1 SO-DDR3 SDRAM memory slot , up to 8GB DDR SDRAM
Built-in graphics core built-in Intel HD Graphics Display
Support CRT interface supports VGA output interface supports HDMI output and can vary significantly synchronous output
NIC onboard RTL 8111DL 10/100/1000 BaseT LAN optional super- 150M or 300M dual antenna signal WIFI
ALC662 sound card using the chip to provide 6-channel audio
SATA 1Serial II ATA interface, support for 3Gb / s
MINI PCIE two MINI PCIE interface supports full-height half MSATA SSD Support MINI PCIE Wireless LAN
WIFI Optional 150M WIFI or 300M WIFI built-in modules , external antennas to enhance signal
USB 6 USB 2.0 interfaces ( four on-board rear, two on the front panel )
Rear panel VGA HDMI 1 * RJ-45 4 * USB ports 1 * DC (in)
12V AUDIO-OUT AUDIO-MIC

DC IN 12V power supply support

Sizes 205mmx 140mmx40mm
Weight : 850 grams to about 1000 grams
Temperature:
Operating Temperature
0 ° C ~ 70 ° C (32 ° F ~ 140 ° F)
Storage Temperature:
-20 ° C ~ 80 ° C (-68 ° F ~ 176 ° F)

Best Choise with less money,why not check out immediately?

FANLESS - 0.00dB Noise Mini PC in the world

We will offer you best servicE

Do it now !!!

Do you feel INCTEL's enthusiasm and professionalism?

                         FREEE SHIPPING

Free shipping is only applicable to HK, To other countries, we offer reasonable freight rate or even lower than the paid rate (If you made an order, assuming you accept this):

Nommally we ship via DHL, UPS, FEDEX, and EMS, HK Post, there are some explanation,

Flexible shipping cases as belows,

Case 1: Your shipping area is remote location for DHL. You could find out if your area is remote area or not on DHL the website:  /jsp/first.jsp

Case 2: DHL is not allow to use in your area. Like Brazil, AR, Russian ,Kazakhstan. (So we ship via EMS or HK Post)

Case 3: If UPS or DHL are both appliable for your area , we will send it at randomly.
Good news for Russian customers, though DHL, UPS, Fedex etc express are unavailable to deliver to Russia in our area, we choose eEMS(EMS upraded version) to ship parcel by default, safe, fast, with better ability of customs clearance(Russia Customs is strictest in the world). Delivery within about 5-10 working days by e-EMS.

Case 4, Via HK post (mostly Spain prefer by HK post)

Except all of 4 cases, If your address is remote area for us, you should add extra shipping fees for DHL/ UPS/EMS/Fedex etc(welcome to consult our Pre-sales).

Above All, if our dear customer have its own ideas on the shipping method and declared value request, please leave message on the order, or consult our pre-sales.
