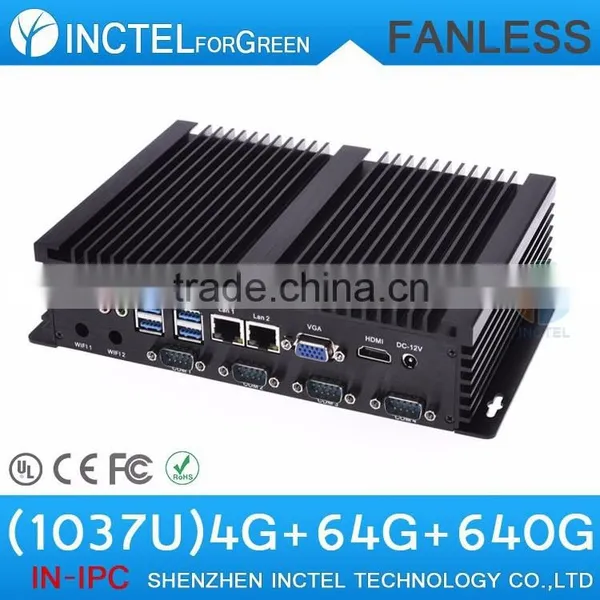

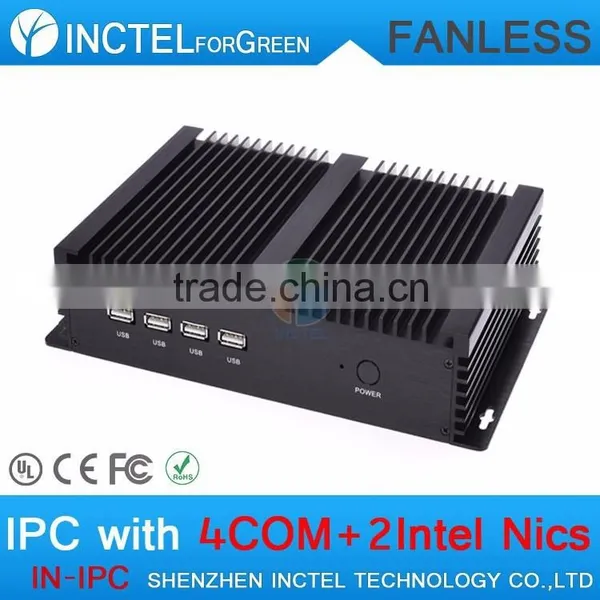

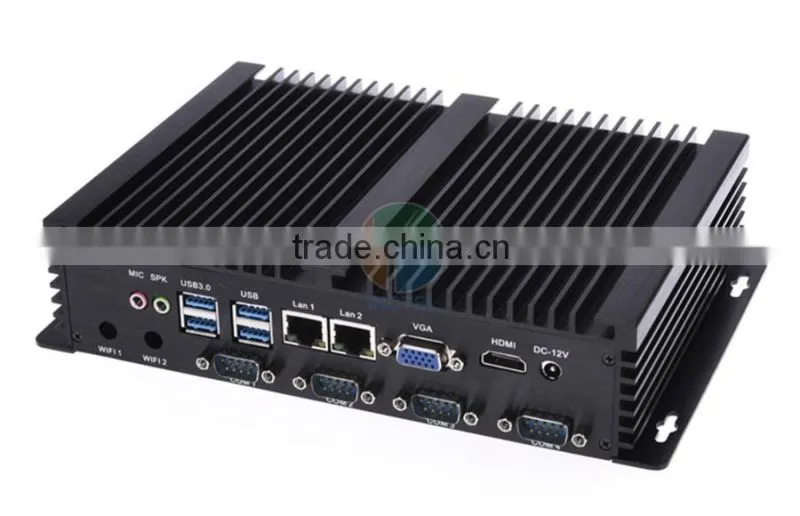

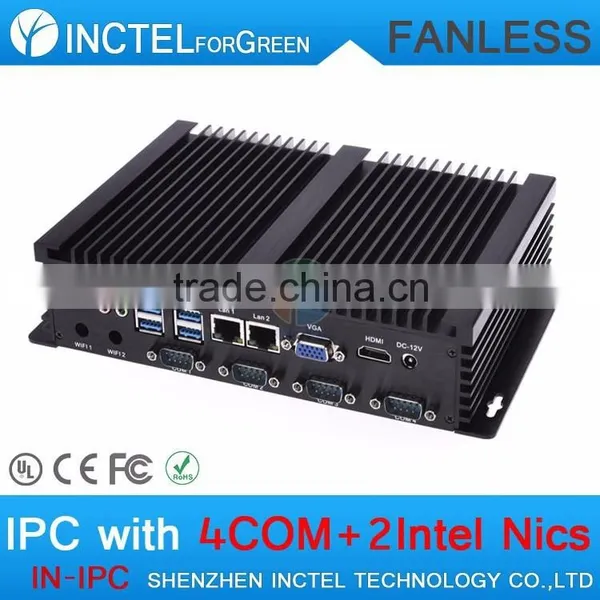

Industrial PC 1037 IPC is currently the most competitive in cost & performance
which is what exactly people looking at today.Ultra compact form factor (UCFF),
small form factor (SFF), mini pc gained popolarity
over the last couple of years,
especially for those passive cooling series of mini-PCs

Emphasis:
CPU: IVB platform Intel Celeron dual-core C1037U 1.8GHz
GPU: Intel HD Graphics 2500, 797628 KBytes /L3 2MB

Intel HM77 Chipset
Dual Intel 82574L Gigabit Network Card

          4*USB 3.0

Fanless

Upgrade Service:

1.WiFi Optional, if need wifi, double antenna builtin wireless 150M add extra $8, 300M add $10

2. Bluetooth and WiFi 300M together Builtin add $20

3. USB IR Infra-red+ PC Remote Control add $15 (No battery inside)

4. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.

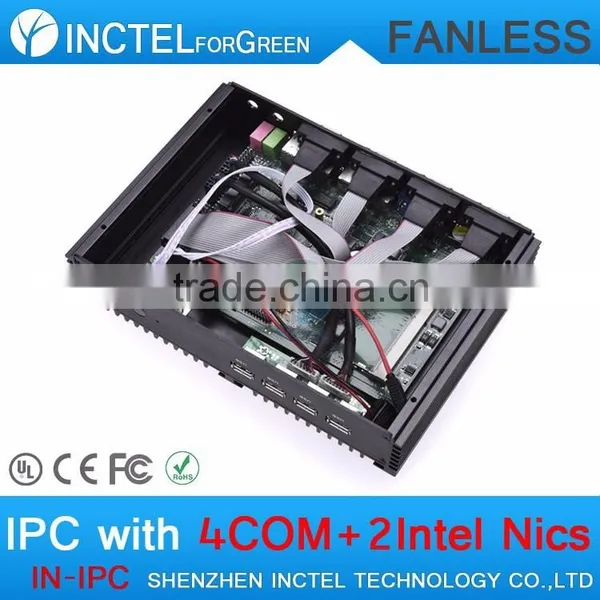

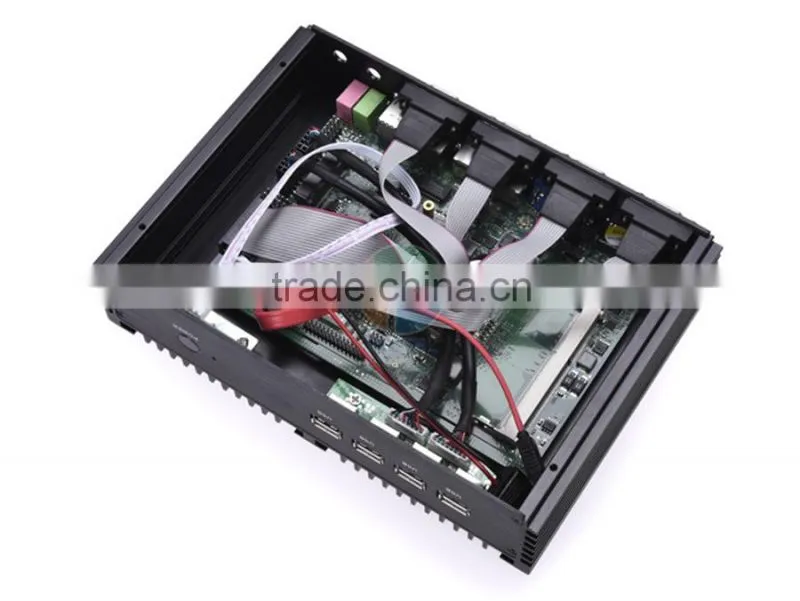

Ref. Photo as belows

(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, Upgrade value, 1pc=$1)

4G RAM  64GSSD  320G HDD

If customer buy the configuration with RAM, SSD, HDD, We can install as belows,
XP/windows 7/Ubuntu Linux optional
(if not leave message, we will ship at Random.)
Charged WIN.8 add extra $5, Server 2003 add extra $5
Above OS is OEM cracked Version, if need orginal, needs to purchase separately
Original: Win7:$55;Win8:$65

Original Windows, please buy it locally!
For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales

Important Tips: The cheapest industrial computer in the whole world!

Industrial PC 1037 IPC revamped market, older discontinued. At the same time introduced the I3 processor dual Gigabit IPC, the difference is price higher than 1037U. The new improved circuit design, has become more mature pure industrial machines, new and improved power supply circuit design, full use of ON-powered design, reliable, high-voltage protection, current limiting protection, anti-burn protection. At the same chipset big upgrade, using HM77 chipset, more advanced, updated four USB3.0 4 x USB2.0 supports six Serial four RS232 serial board adds two RS485 serial ports (the cabinet needs the next batch extraction interface) while upgrading to dual Gigabit NIC INTEL INTEL NIC card notoriously expensive, the price is five times the original price RTL8111DL, but notoriously reliable, stable, compatible well. WIN7 WIN8 free driver, LINUX-free drive NAS Free 7X24-hour drive to ensure that never loss, RTL card can not, the industrial area networks must INTEL card.

The majoy modification,
1. New with Dual Intel 82574L Gigabit Nics
2. New with Intel HM77 Chipset
3. 4*USB 3.0

Have stock, can ship out in 24 hours!

Fanless industrial computer market, Electrify Autoboot support, Restore AC Power Loss,Super Ice Thorn Cooling chassis, dual Gigabit LAN, 8 USB include 4*USB3.0, 4*USB2.0 4*COM ports, support 7*24 hours working, support dual display. Simultaneous Display or Asynchronous Display.
Microarchitecture: Haswell

Fanless Computer advantages:

The computer with a fan, a long time fan noise will become increasingly large , even the best part of the fan will be broken , causing rework , while generating fan duct , inhale a lot of dust , more than half a year later , the computer board plot thick dust , can easily lead to short circuit the computer , and then cause rework . So the dust is considered to be a computer predators, no fan design ensures not only stability, but also to ensure the long-term use without dust , 0 noise annoyance never broken fan noise 0 db is the dream of many computer users computers if we dream plus mini- volume low-power will become more perfect.

Mini fanless industrial computer HTPC factory living room Computer Factory Direct Wholesale!

1. Onboard Celeron dual-core IVB powerful platform C1037U 1.8GHz CPU ( integrated graphics HD Graphics) performance, overall performance over D2550 performance more than 2-3 times ,
2. Gigabit Ethernet interfaces to support diskless boot HDMI output supports high-definition Blu-ray 1080P HD hardware solution software solution
3.12V external DC power supply , environmental protection, daily using only 12W to 16W power
4. 4 USB3.0 ports 4 USB 2.0 ports, two 1000M Gigabit Lan
5.4 COM Ports
6. Intel HM77 Express Express Chipset
7. Supports boot function calls that can support Msata3 SSDs
8. All solid , shock , drop , long-term stable and reliable operation,solid state disk speed of 160M / S
9. Biggest advantage is no fan noise can be zero dust . Dust is a natural enemy of the computer , the computer noise nuisance trouble. The machine fully resolved
10. Msata support and 1* 2.5 -inch notebook hard drive support, Builtin.

CPU Overview
Model
Celeron 1037U
Processor Series
Celeron
Core Name
Ivy Bridge
Core / thread
Dual-core dual-threaded
The Process
22nm
TDP power
17W
CPU frequency
Frequency
1.8GHz
Acceleration Technology
No
Maximum support memory frequency
DDR3 1600
CPU cache
Secondary cache
2 × 256KB
Three cache
2MB
Graphics Core
Integrated graphics core
Be
Graphics core
Intel HD Graphics
Core Frequency
350-1000MHz
Function parameters
Energy-saving technology
Support for energy-saving technology
64-bit computing
Support for 64-bit computing

1: The living room PC with HD HDMI output , TV output sound and picture synchronization connection can be hard to decode Blu-ray high-definition movies , Internet , fanless , to ensure long-term use no dust , no noise.
2 : Business office preferred dual- core four-thread CPU, has been completely meet the daily office use, access, processing services handy , and business volume use , save electricity. Compared to ordinary desktop computers, the machine is only about 16W power daily
3 : dedicated computer rooms aluminum exterior , elegant, upscale hotel rooms in very convenient, all- solid-state design , not damaged, no dry sound , low power consumption , energy saving .
4: The education industry dedicated computer terminals have better performance than low-end cloud , more convenient software compatibility , better color , faster , more suitable for the education sector
5 : Industrial PC designed for industrial users can be customized serial port, and the machine design , industrial applications can be fully qualified , all- solid-state design, all quiet design , the overall board design are taking into account the needs of industrial users . The entire board of all tantalum capacitors, life for ten years . 7X24 -hour long test is stable and reliable .

C1037U mini computer FAQ:

What is a fanless computer, not previously used , what are the features and advantages of it ?
About fanless computer : fanless computer nearly two years before for domestic manufacturers to master the core technology, the early years only a small number of overseas Chinese and Taiwan manufacturers can develop and produce fanless computers, common configuration price vrey high, mainly for users require high -quality, high stability, long-running , zero noise, no dust.
Ordinary computer uses fan cooling fan with no comparative difference is:
1 ) noisy, prolonged use of affected people feel belittled , even silent fan , a long time after the big sound
2 ) No matter how high- quality fan over one to two years , there will be corrupted rates , causing computer repair, no fan of passive
Cooling, users never have to repair damage to the fan , greatly reducing the quality of the risk of your computer.
3 ) Turn the fan for a long time , a lot of dust into the exhaust at the same time , older month long, there will be a lot of dust inside the computer together Set , causing a short circuit , the fan speed down and so on, will also increase the risk of damage to the computer . Dust is known to
Computer predators , fanless computer specifically address this dust computer predators .

This computer already installed a MSATA SSD , but also re- install the laptop hard disk? Did not see a fixed position ?

The machine supports MSATA SSDs , because speed, small size is very convenient , so most do use this disk system disk , if that is not enough space , you can add a laptop hard disk for data , we will provide notebook hard drive power cable , SATA interface cable , giving you leads, connect it directly to your hard drive can be identified using screws be ready for you . Fixed position on another cabinet panel has four dedicated hard drive screws holes.

Machine supports 5.1 channel output it? How to set or wiring ?
The machine can support 5.1 channel output, if you only have an ordinary computer speakers, then the machine behind the sound hole , so only output 5.1 sound, not a true 5.1 . To use 5.1 , the machine must be connected to the power amplifier , power amplifier connected to five or more speakers. We have a dedicated hall living room PC experience , is to use the 5.1 channel , the specific connection method is HDMI port HDMI cable to the computer and the other end connected directly to the input of the HDMI port on the amplifier . Then connect a TV or projector 's HDMI output to the amplifier . All speakers connected to the amplifier, speakers connection method you use amplifier reference manual . After this connection the effect is quite shocking , whether it is picture and sound quality are very good, convenient to the living room to the corporate computer users can experience the hall to experience the effect .

This computer can be connected to a large TV projector or large it? Big screen output effect okay ?
The machine can be connected to any large screen display devices, image quality can be achieved fully 1080P full HD effect. There had been a large number of users , the company specializes experience hall connecting two display devices, a 55 -inch TV , another W8000 projector , 150 -inch projection screen , the effect of first-class quality is good.

This computer is so small, or no fan , really zero noise , but the performance right ? Play games?
This machine adopts the latest technology INTEL low-power processor , no fan around 15W Total power , but the performance is very calendar harm , sufficient to office business applications , the living room computer , running WIN7 also very smooth, stress-free Blu-ray HD , 50GB of HD movie playback without any pressure or abnormal , 3D HD also normal playback. But also to support a large number of 3D games, Need for Speed is currently running over 14 , no pressure . Cross Fire is very smooth. Similar requirements and these games 3D games can be stable , smooth play .

No fan I have not used a computer before , no sound really attractive , especially for the living room , but withstand use it? Will not be too hot ?
The machine uses the latest energy-saving technology INTEL processor , heat has been reduced to a minimum , we have developed the process, the amount of post-partum have done a lot of stress tests , CPU 60 several times until the highest , but no air conditioning in the environment . The usage is not your everyday use high CPU utilization in a long time , the temperature will be lower than the temperature and pressure testing. Estimated that about 50 degrees, so there is no pressure on the CPU temperature , the large number of laptop CPU 78 degrees up and down frequently .

  Normal CPU temperature below 80 degrees for the machine to use, without any impact on the CPU life , ease of use . The company has been doing for years fanless computers , fanless computers in China is probably the most successful of our production and sales is also the largest . So for fanless computers, we experience the full , in the research and development devoted to the heat, the temperature did rigorous design and testing. The machine adopts the chassis close to CPU, using imported Japanese silver thermal paste , and therefore can not fold under the motherboard, will affect the adhesion of the silver thermal paste , thereby affecting the heat . Because the chassis cater to the radiator , so the surface temperature of the CPU with the same staffing will feel the heat , this is a normal phenomenon , fanless computer surface is so , you can still ease of use , do not fearing .
