Home > Products > Aluminium Aerial Lift > 10m Single Aluminum Mast Lift Man Lift Platform Hydraulic Vertical Platform Lift
10m Single Aluminum Mast Lift Man Lift Platform Hydraulic Vertical Platform Lift
US$ 3,000 - 6,000
/ Set
1 Set(Min. Order)
- QINGDAO
- T/T
You May Like
-
Double Mast Alluminum Alloy Hydraulic Stage Platform
-
1 / 2 / 3 / 4 Mast Mobile / Vehicle-Based Aluminum Electric Telescopic Lift / Platform Table
-
New Style Hot Selling Aluminum Motorbike Stand Lift
-
2015 The Newest Hot Sell Hydraulic Lift for Furniture
-
Factory Crazy Selling Aluminum Motorcycle Lift Dirt Bike Stand
-
Newest Hot Sale Promotion Tilt Back Aluminum Lift Table
Product Details
| Place of Origin | Shandong, China | Brand Name | Truewin | |
| Model Number | SJL | Lift Mechanism | Telescoping Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 1.1kw | |
| Rated Loading Capacity | 100-200kg | Min. Lifting Height | 1.5m | |
| Max. Lifting Height | 14m | Table Size | 550mm*550mm | |
| Overall Dimensions | 1200mm*750mm*1980mm | Weight | 200KG&optical | |
| Certification | CE&ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Product Description
Telescoping lift aluminum lift
- Advantage of Aluminum lift :
1.Double controllers,one is on the work platform,another is on the ground.
2.Light weight,easy to move and operate.
3.With non-trace universal wheels (Polyurethane wheels/solid rubber wheel), moved freely. No
Damage to the ground floor.
4.Stainless steel guardrails, nice appearance, good anti-corrosive ability.
5.Small size,easy to go through small spaces and store.
6.Optional color, as your preference.
Aluminum lift' Main parameters:
| Model(mast) | Lifting Height(m) | Load Capacity(kg) | Table Size(mm) | Overall Dimension(mm) | Motor Power(kw) | Overall Weight(kg) |
| YBC0.1-6(I) | 6 | 100 | 550*550 | 1380*700*1980 | 0.75 | 420 |
| YBC0.15-6(II) | 6 | 150 | 1150*650 | 1400*800*1980 | 2.2 | 480 |
| YBC0.1-8(I) | 8 | 100 | 600*600 | 1380*700*1980 | 0.75 | 460 |
| YBC0.15-8(II) | 8 | 150 | 1300*650 | 1650*800*1980 | 2.2 | 520 |
| YBC0.1-10(I) | 10 | 100 | 600*600 | 1500*800*2650 | 0.75 | 480 |
| YBC0.15-10(II) | 10 | 150 | 1450*650 | 1750*800*1980 | 2.2 | 580 |
| YBC0.15-12(II) | 12 | 150 | 1550*650 | 1800*900*1980 | 2.2 | 600 |
| YBC0.15-12(III) | 12 | 150 | 1550*750 | 1880*1200*1980 | 2.2 | 900 |
| YBC0.15-12(IV) | 12 | 150 | 1550*750 | 1880*1200*1980 | 2.2 | 1100 |
| YBC0.15-14(II) | 14 | 150 | 1550*650 | 1900*1200*2400 | 2.2 | 660 |
| YBC0.15-14(III) | 14 | 150 | 1550*750 | 1900*1400*2600 | 2.2 | 1000 |
| YBC0.15-14(IV) | 14 | 150 | 1550*800 | 1900*1400*2600 | 2.2 | 1400 |
| YBC0.15-16(II) | 16 | 150 | 1550*650 | 1900*1200*1700 | 2.2 | 700 |
| YBC0.15-16(III) | 16 | 150 | 1550*750 | 1900*1400*2700 | 2.2 | 1250 |
| YBC0.15-16(IV) | 16 | 150 | 1550*800 | 1900*1400*2700 | 2.2 | 1600 |
| YBC0.15-18(III) | 18 | 150 | 1700*750 | 2100*1400*2800 | 2.2 | 1500 |
| YBC0.15-18(IV) | 18 | 150 | 1700*800 | 2100*1400*2800 | 2.2 | 2150 |

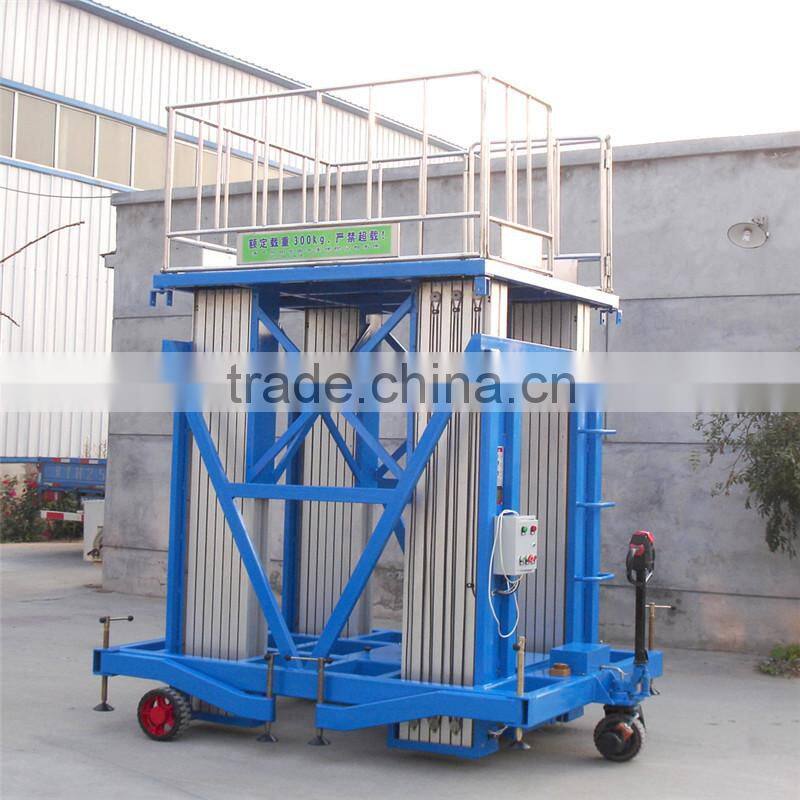

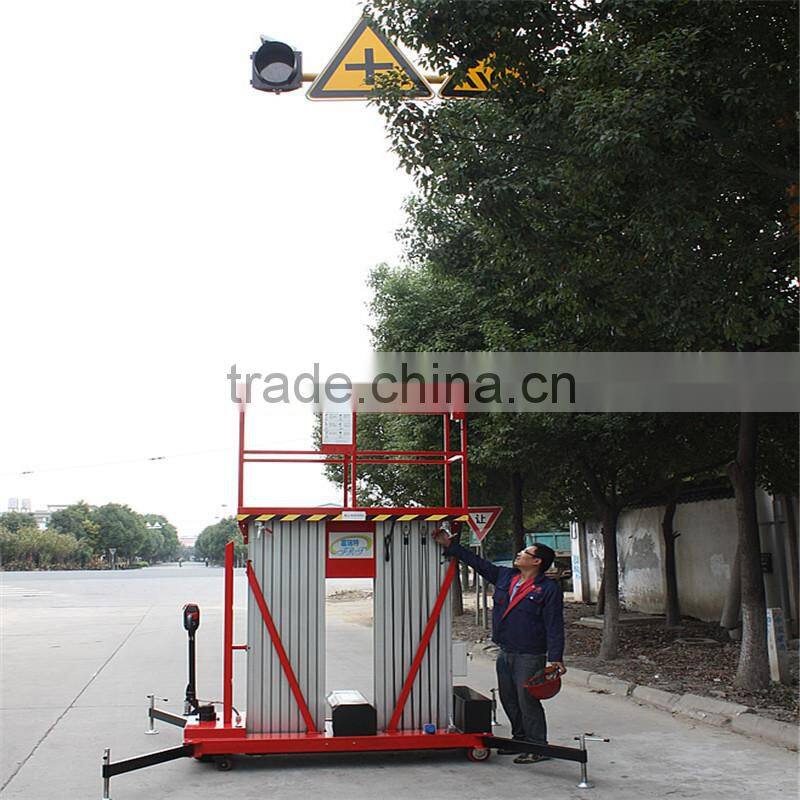

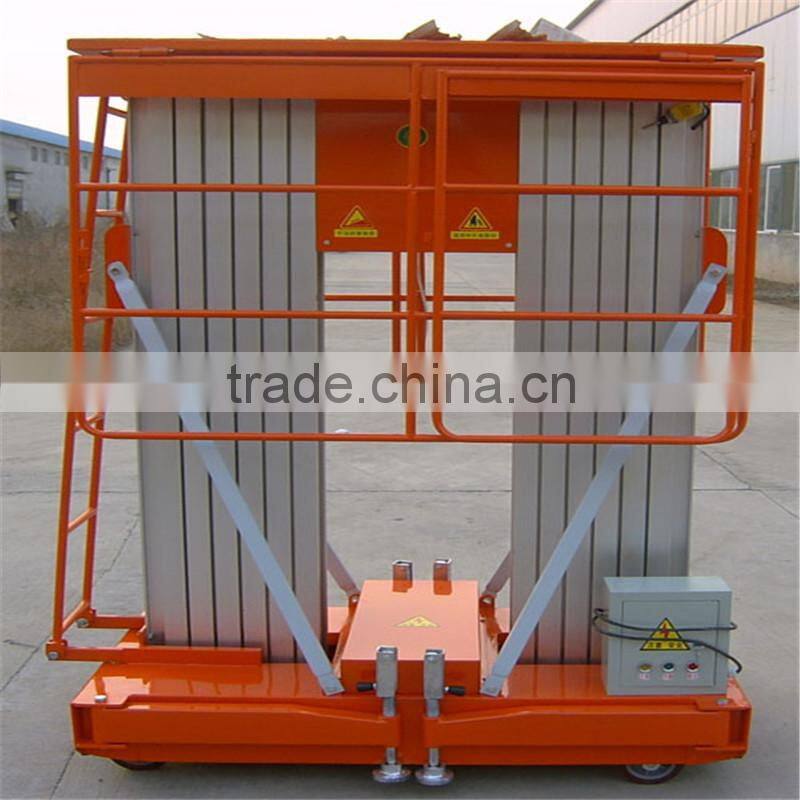

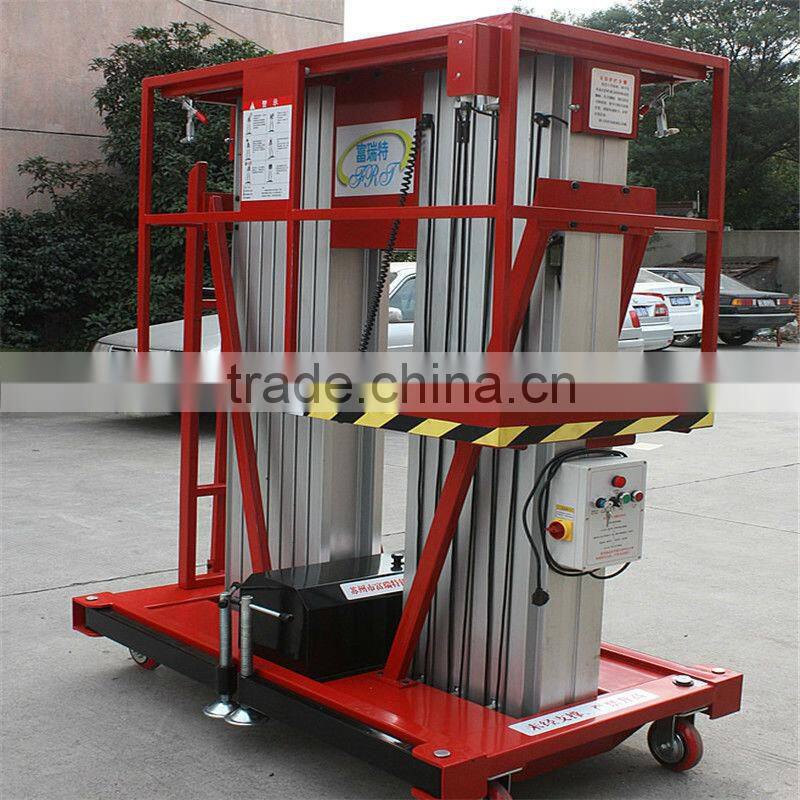

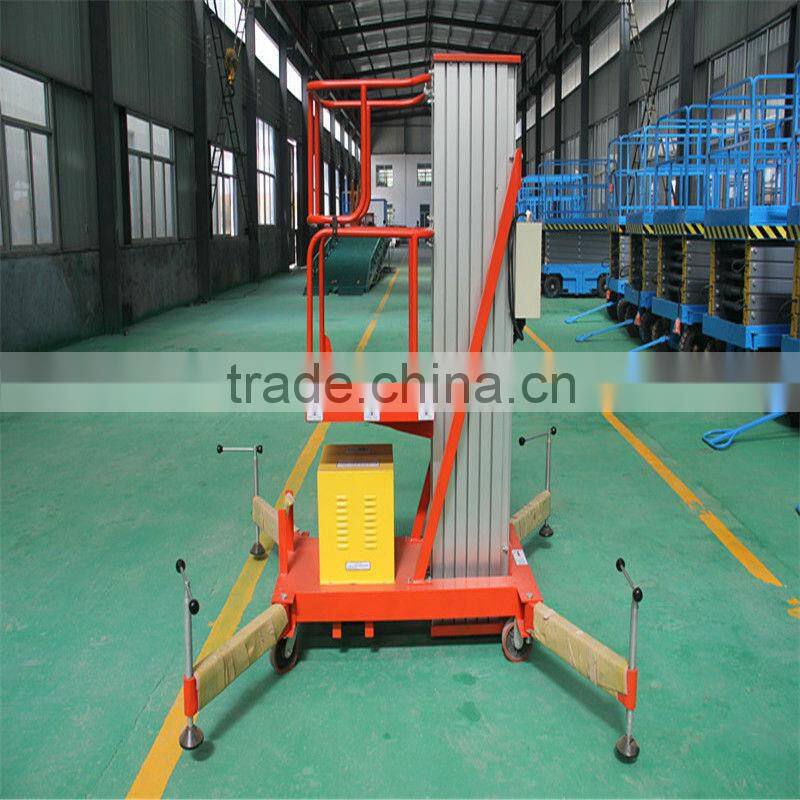

- Aluminum lift Picture shows
Our Services
Our service :
1. All the machines will be full tested before shipment
2. The total machine guarantee is 12 moths
3. Reply your inquiry in 24 working hours
4. Customized design is available,OEM are welcomed
5. Delivery the goods to our customer all over the world with speed and precision
6. Offer customer the lowest price with high quality lifting machine
Payment terms
Beneficiary:OT-SHANDONG TRUE WIN CONSTRUCTION MATERIAL
Account No.:0120177817117
Address: SUITE 610 6/F TOWER 1 SILVERCORD 30 CANTON RD TST KLN HONG KONG
Bank:BANK OF CHINA(HONG KONG)LTD
Bank address: 1 GARDEN ROAD, HONG KONG
SWIFT CODE: BKCHHKHH
Account No.:0120177817117
Address: SUITE 610 6/F TOWER 1 SILVERCORD 30 CANTON RD TST KLN HONG KONG
Bank:BANK OF CHINA(HONG KONG)LTD
Bank address: 1 GARDEN ROAD, HONG KONG
SWIFT CODE: BKCHHKHH
Contact Us
- Shandong True Win Construction Material Co., Ltd.
- Contact namelichao lian Chat Now
- Phone86-0531-85942227
- AddressA4-07, Jinan Fenghuangshan Cross-Border Electricity Industrial Park, No. 3, Fenghuangshan Road, Tianqiao Dist.
