Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 1/3" Sony Super HAD II CCD Infrared Camera

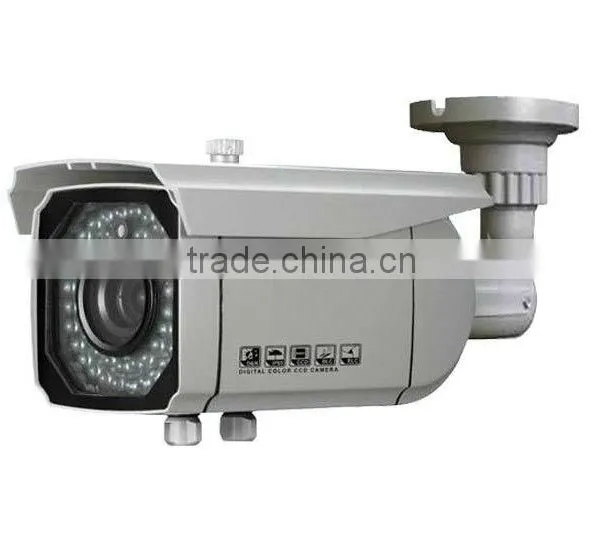

1/3" Sony Super HAD II CCD Infrared Camera
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
ES500-MR-7707U2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bule-I DSP 600TVL Box Cctv Camera With OSD, WDR, Zoom FunctionUS$ 52 - 53MOQ: 1 Piece -
Cheap Cctv Camera ,1/3 Sony CCD 700TVL Security Camera CCTV CameraUS$ 50 - 70MOQ: 1 Piece
-
1/3 Sony CCD 700TVL IP Waterproof Cctv Camera SystemUS$ 50 - 70MOQ: 1 Piece
-
2013 Hotsell High Focus Cctv Camera,sony Chip 700tvl Cctv CameraUS$ 50 - 70MOQ: 1 Piece
-
Top 10 CCTV Camera IR Megapixel HD Bullet Camera 1200tvlUS$ 10 - 30MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
ES500-MR-7707U2
Type
Analog Camera
Style
Bullet Camera
Sensor
CCD
Technology
Infrared
Special Features
Waterproof / Weatherproof
Specifications
Specification1/3" Sony Super HAD II CCD infrared camera
Resolution 700TVL High Resolution
IR Distance 50-60 m
Featurer:
• Camera CCD Sony Color CCD or IT CCD Option
• Resolution 700TVL High Resolution (650/600/540/480/420TVL option)
• Infrared LED 66pcs Xφ5 Leds
• IR Distance 50-60 meters
• Mini. Illumination 0 Lux (IR LED on)
• Lens 2.8-12mm Varifocal 2M Pixels Lens
• Optional Color White/Black
• Voltage DC12V or AV24V/DC12V optional
Specification:
| Model NO. | ES500-MR-6707U2 | ES500-MR-7507U2 | ES500-MR-7707U2 |
| VIDEO | |||
| Image Device | 1/3" Sony Super HAD II CCD | ||
| TV System | PAL/NTSC | ||
| Effective Pixels | PAL:500 (H)*582(V);NTSC:510(H)*494(V) | PAL:976(H)*582(V);NTSC:976(H)*494(V) | |
| Scanning System | 2:1 Interlace | ||
| Synchronization | Internal | ||
| Horizontal Resolution | 540TVL | 600TVL | 700TVL |
| Min. Illumination | 0 Lux (LED on) | ||
| S/N Ratio | >48dB | ||
| Video Output | 1Vp-p,75ohm, BNC | ||
| LENS | |||
| Lens Type | 2.8-12mm Varifocal 2M Pixels Lens | ||
| OPERATIONAL | |||
| BLC | Auto | ||
| Gain Control | Auto | ||
| Gamma Correction | >0.45 | ||
| E-Shutter | PAL:1/50 ~ 1/100,000sec; NTSC:1/60 ~ 1/100,000sec | ||
| Infrared LED | 66pcs x φ5 Leds | ||
| IR Distance | 50-60 Meters | ||
| ENVIRONMENTAL | |||
| Operation Temperature | -10°C ~ 50°C | ||
| Storage Temperature | -20°C ~ 60°C | ||
| ELECTRICAL | |||
| Input Voltage/ Current |
DC12V,1000mA or AC24V / DC 12V optional | ||
| Adapter Requirement | DC12V1.5A | ||
| MECHANICAL | |||
| Color | White/Black | ||
| Dimensions | 310x200x148mm | ||
