Reasonable Single Mast Aluminum Lifter Aluminum Motorcycle Lift Aluminum Man Lift
- QINGDAO
- T/T
You May Like
-
5% Discount In The Third Word! Electric Lift Ladder/Telescopic Lift
-
Dual Ladder Aluminum Cylindrical Telescopic Lift, Platform Lift
-
True Win Indoor Vertical Aluminum Ladder/single Person Lift for Constraction Site
-
Aerial Street Light Lift/aluminum Telescopic Ladder
-
100KG 10M Single Column Moveable Hydraulic Vertical Platform Lift/portable Man Lifting Equipment/aluminum Ladder for Home
-
Aluminum Electric Aerial Work Platform Man Lifter With CE Certification
Product Details
| Place of Origin | Shandong, China | Brand Name | Truewin | |
| Model Number | MAL | Lift Mechanism | Telescoping Lift | |
| Lift Drive / Actuation | Hydraulic | Power | 1.1kw | |
| Rated Loading Capacity | 100-200kg | Min. Lifting Height | 1.5m | |
| Max. Lifting Height | 14m | Table Size | 550mm*550mm | |
| Overall Dimensions | 1200mm*750mm*1980mm | Weight | 200KG&optical | |
| Certification | CE&ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Hydraulic single aluminum lift
The lightweight maneuverability and durable design of the aluminum man lifts make them a versatile option for a wide variety of rental, light-duty construction and maintenance applications.
-- Emergency stop button
-- Auxiliary platform lowering
-- Dual activated up/down switch
-- Level sensor confirm proper set-up
-- Outrigger storage sockets
-- Standard rear access forklift pocket
-- Overhead crane attachment point
-- Easy loading in pickup trucks

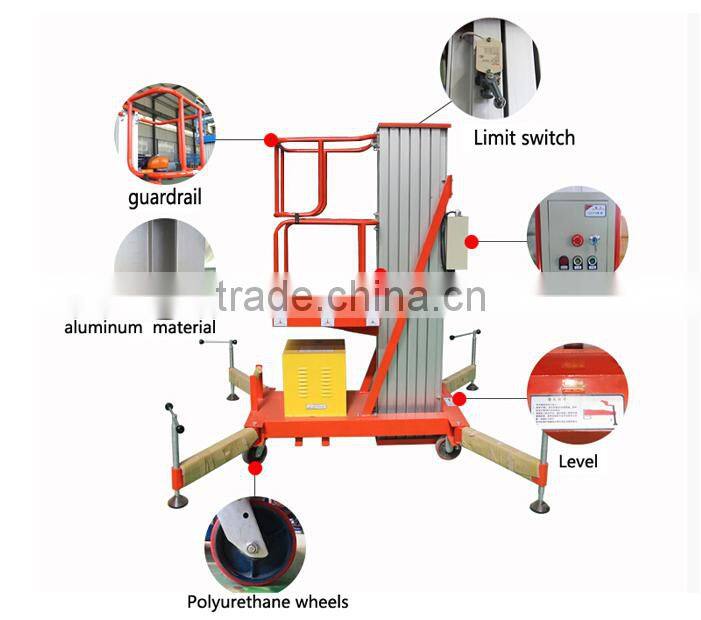

Features:
Dual operation system: on the working platform and the base.
Level adjustment before lift working:
Stabilizer for precise leveling
Single Aluminum Lift are made up of high grade aluminum profile and equipped with the universal wheels, easily pushed around to the designated sites.
Specifications:
| Item# | MAL | |
| Measurements | Metric | US |
| Working height | 10.00 m | 32 ft 10 in |
| Platform height | 8.00 m | 26 ft 3 in |
| Height - stowed(w.o.rail) | 1.99 m | 6 ft 6.3 in |
| Length - stowed | 1.30 m | 4 ft 3.2 in |
| Width | 0.76 m | 2 ft 6 in |
| Caster size(front/rear) | Φ130 / Φ200 mm | Φ5 / Φ8 in |
| Productivity | ||
| Maximum platform occupancy | 1 person | |
| Lift capacity | 150 kg | 330 lbs |
| Outrigger footprint (l/w) | 1.68/1.48 m | 5 ft 6 in/4 ft 10 in |
| Platform Dimensions: (l/w/h) | 0.68/0.64/1.10 m | 27/25/43 in |
| Raise / lower speed | 0.16/0.30 m per second | |
| Ground clearance | 0.05 m | 2 in |
| Power | ||
| AC models | 110-230V/50Hz | |
| DC models | 12V | |
| Weight | ||
| AC models | 362 kg | 798 lbs |
| DC models | 400 kg | 880 lbs |
Similar products:
Team&clients:
Certification&Trade Assurance:
FAQ:
Delivery Time? (From 1 week to 1 month after we receive the order)
Payments? (T/T and L/C, other kinds, pls contact with us)
MOQ? (1 set)
Trade term? (FOB/CIF to your nearest seaport)
Application field? (Construction, shipyard, industrial, airport, municipal garden or others)
A. Daily or refueling: Check the parts are good or bad Check hydraulic oil level and colour
B. Every 250hours or 3months: Change lubricating oil Check cylinders
C. Every 500hours or 6 months: Check tubes, pipes and value
D. Every 1000 hours or 1 year: Change hydraulic oil Grease rotation bearing and wear pads
E. Every 2000 hours or 2 years:Check hydraulic tank, lid and vent
F. Note: Maintain the chassis according to the Chassis’ Service manual
