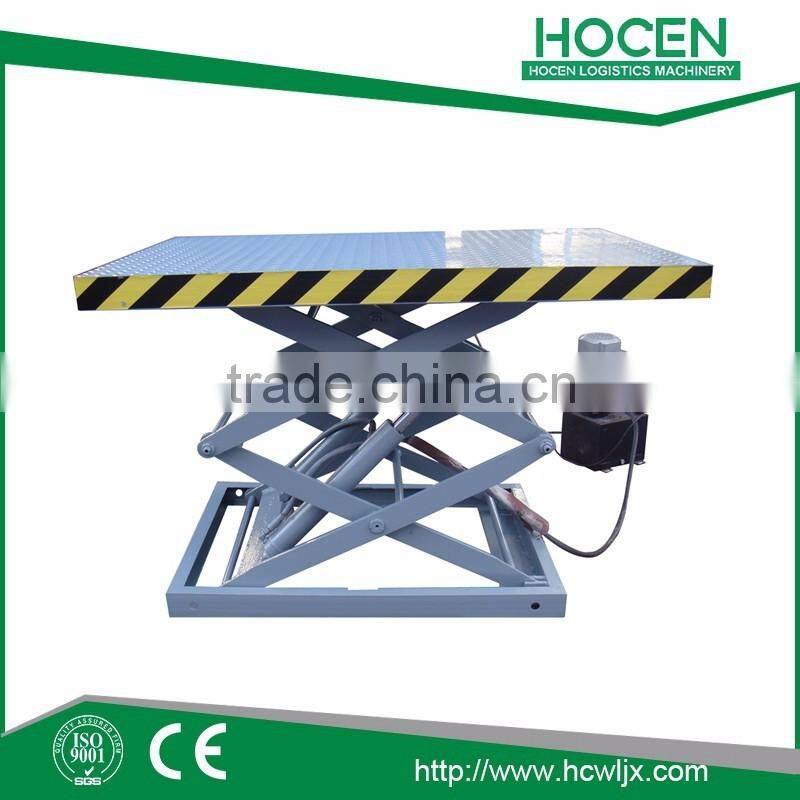

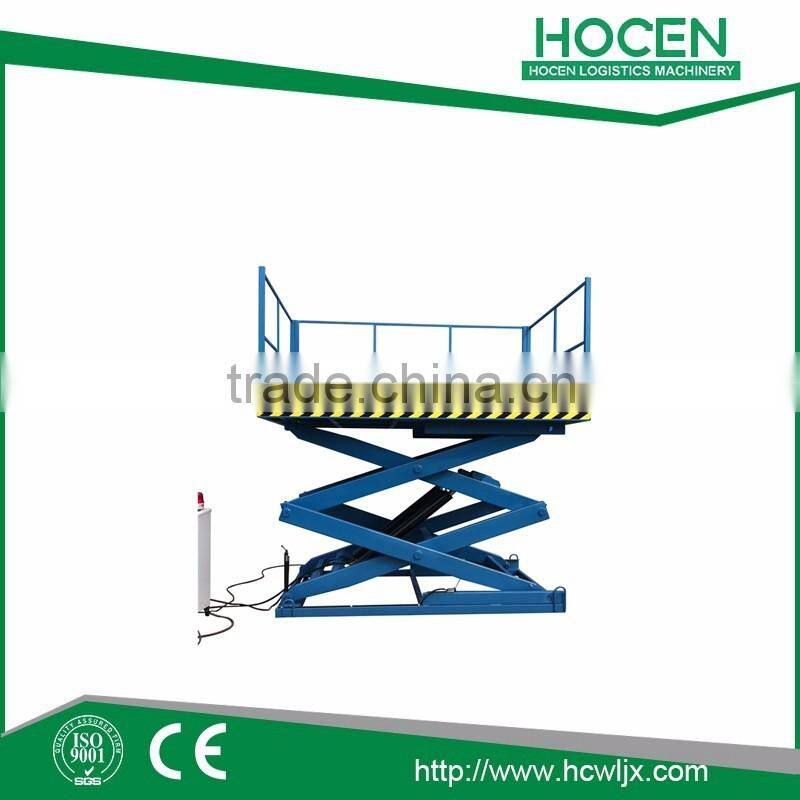

Customized Stationary Hydraulic Scissor Lift table
1.Lift table is valuable material handing for use as a feeding on assembly line.
2. With new heavy duty steel construction design, this lift table can give user safety guard.
3. Large working table of this lift table can offer enough space while working.
4. Hand operated table descent control.
5. Easy action foot operated hydraulic lift for raising lift table top to desired level.
6. Robust castors with safety wheel guard and brakes on the two swivel castors, for greater safety wheel loading and unloading.
7. Lift table is with option: chrome plated handle, painted handle, folding handle and silid handle
1.Heavy duty range.
2.Single and double scissor available.
3.Skirting available as option.
4. Portable and mobile lift table.
Data for Lifting table 1Kg=2.2lb,1inch=25.4mm | |||||||
Item /Type | HC-LT15 | HC-LT30 | HC-LT35 | HC-LT50 | HC-LT70 | HC-LT75 | HC-LT100 |
Loading Capacity(kgs) | 150 | 300 | 350 | 500 | 700 | 750 | 1000 |
Table height (Min.)(mm) | 220 | 285/340 | 355 | 285/340 | 445 | 420 | 380 |
Table height (Max.)(mm) | 720 | 880 | 1300 | 880 | 1500 | 990 | 990 |
Dimension of table(mm) | 700×450 | 815×500, 850×500 | 910x500 | 815×500, 850×500 | 1220x610 | 1000×510 | 1016×510 |
Caster wheel size(mm) | Φ100×25 | Φ125×40 | Φ125×40 | Φ125×40 | Φ125×40 | Φ147×50 | Φ127×50 |
Foot pedal cycles(times) | ≤28 | ≤27 | ≤53 | ≤27 | ≤97 | ≤45 | ≤82 |
Height in all(mm) | 950 | 990 | 975 | 990 | 195 | 990 | 980 |
N.W.(Kgs) | 46 | 77 | 105 | 81 | 105 | 125 | 140 |
Folding | YES | YES | --------------- | YES | ------------- | --------------- | --------------- |

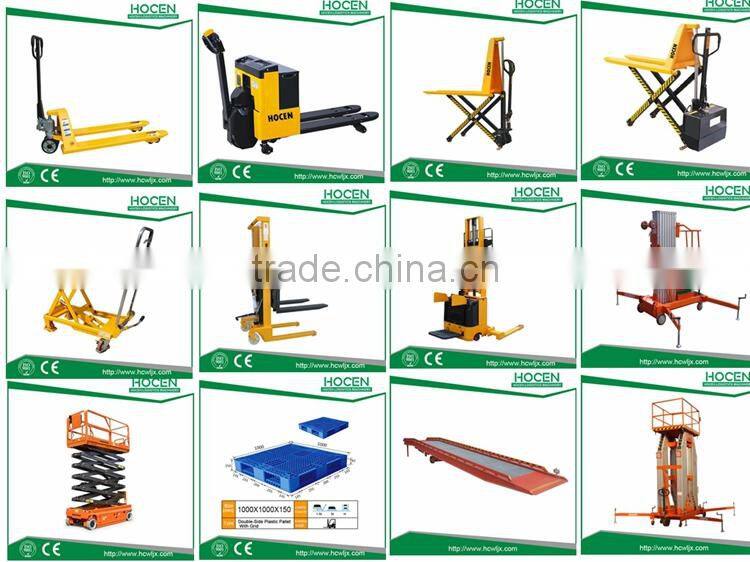

More Products to Choose
Q:Why choose Suzhou Haocheng Logistics Machinery Co.,LTD?

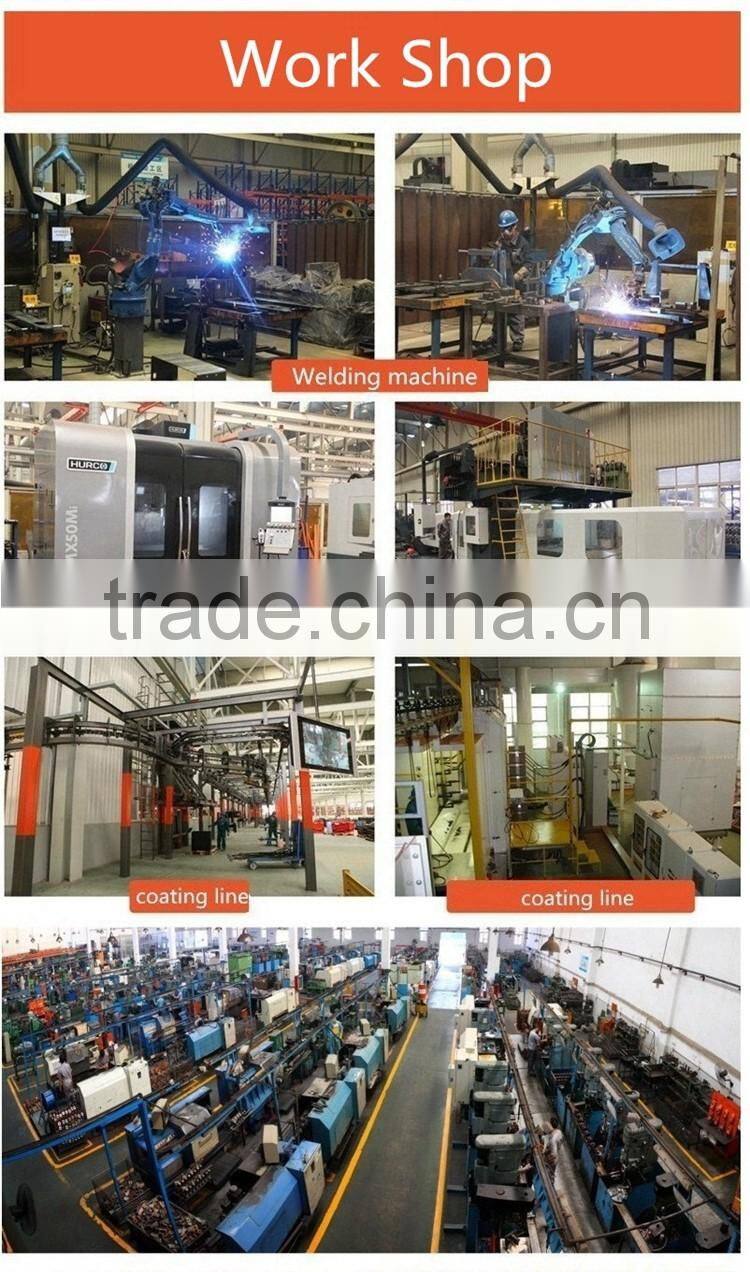

A:Because we are professional Manufacturer which has more than 16years OEM experience, most parts of products produced by ourselves.E.g. Pump and cylinder are produced by high-technology CNC machine;welding do use the aoto welding robot machine.
Q:What about the quality of the products?
A:We have five inspectionsteps during the production.
1th, inspect material according to ISO 2859
2th, 100% inspection in production process
3th, 100% inspection when assembling finished(Load Limiting Device Test and Proof Load Test)
4th, inspect products before shipment according to ISO 2859
5th, inspection by buyer (if need)
Note: We will ensure that 100% qualified before shipment
Q:What's the leadtime?
A:Nomally 45 days.
If you book more than 5 items mixed in one container, it will be 60 days.
If you book one item in one container, it will be 30 days.
Q:What about the guarantee?
A:One year after shipment.
If the problem coursed by factory side, we will supply free spare parts or products untill the problem solved.
If the problem coursed by customer, We will supply technic support and supply spare parts with lower price.
Q:Why your price is a little higher than other factory or trading company?
A:Because we would like to follow a win-win stratery so that we can have a long business relationship,which is good and important for both of us.
So we do not sell light weight products or sticker high capacity(like 5 ton sticker 10 ton)
We ensure that every products from Tongli are goods genuine and prices reasonable.
