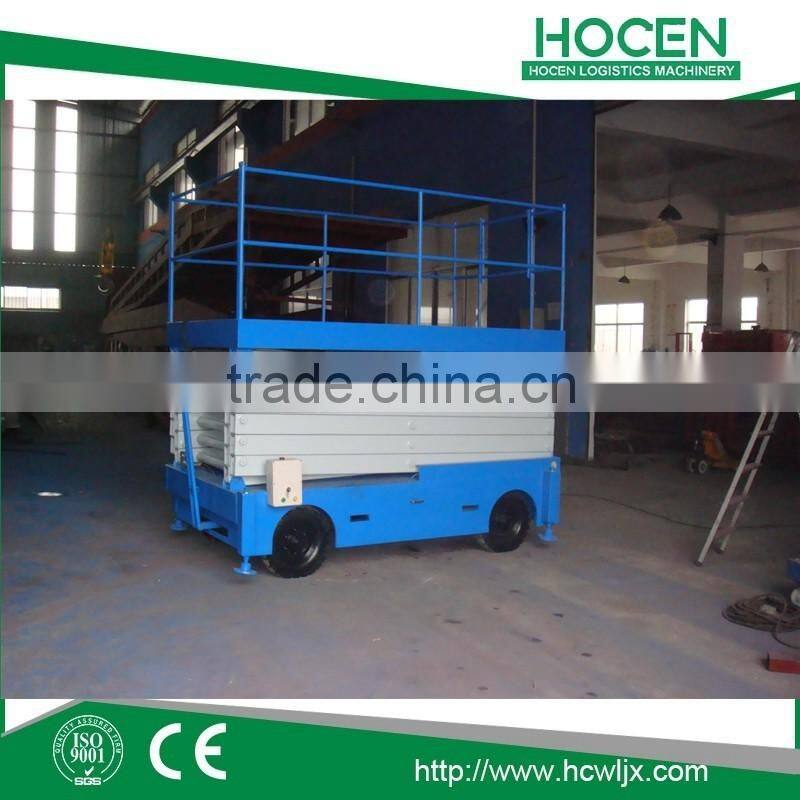

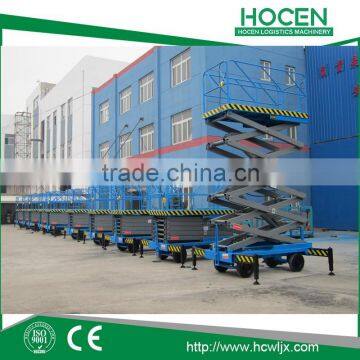

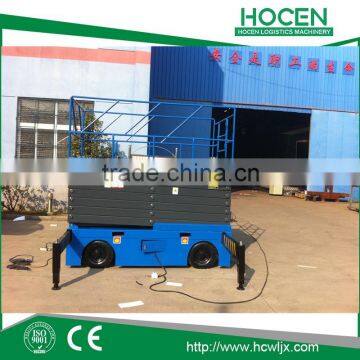

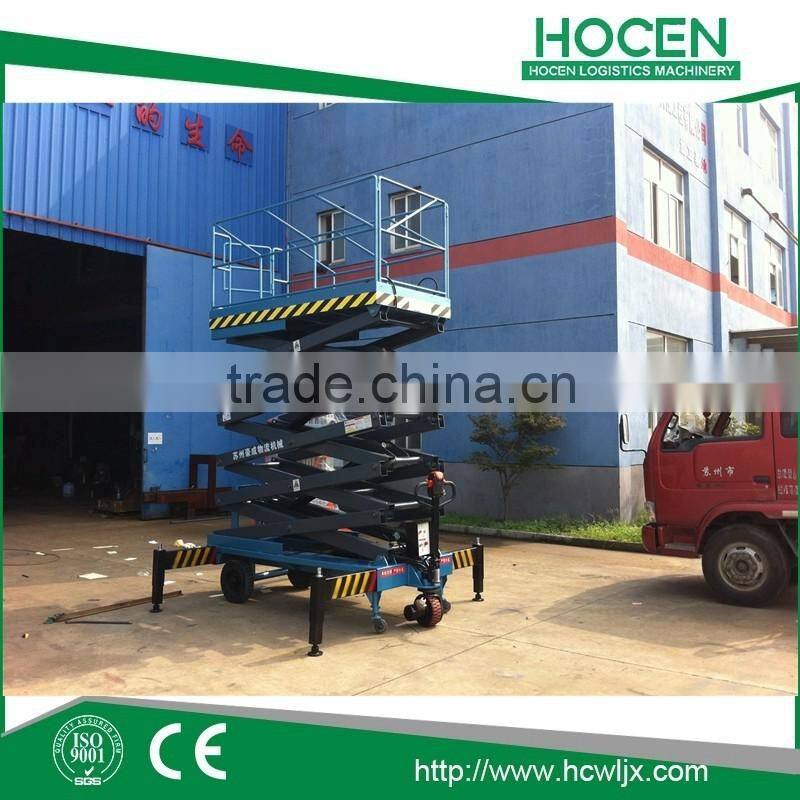

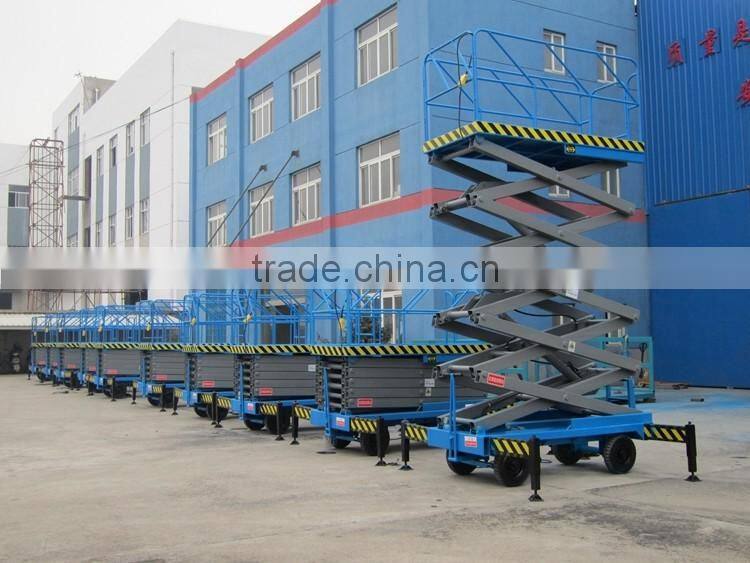

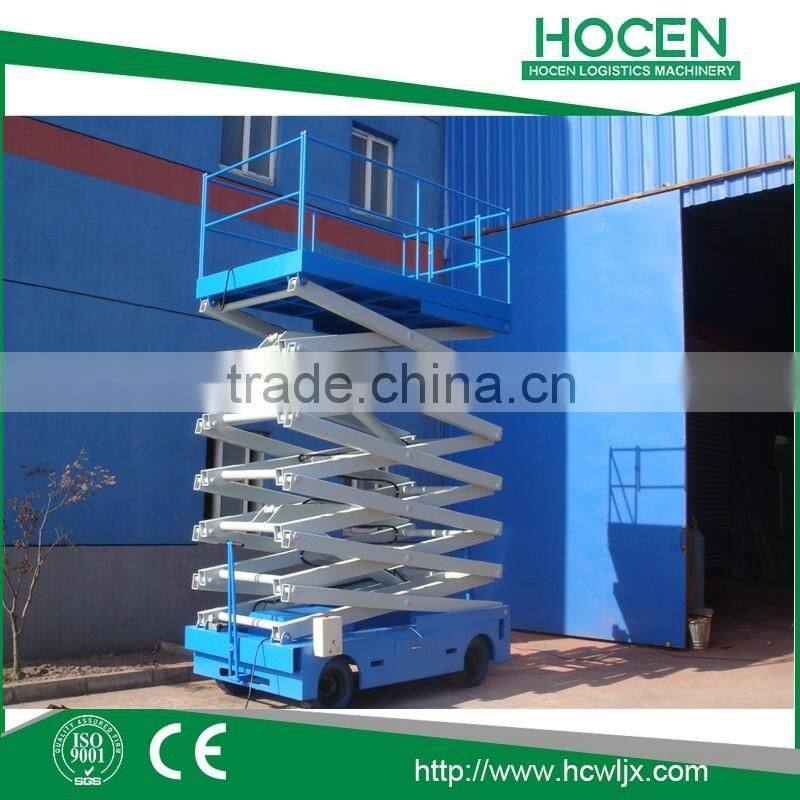

12M Scissor Lift Pallet Truck Aerial Work Platform Material Handling Hand Lift Order Picker Harga Hand Stacker Manual Harga Lift
- 30 Unit / Units per Month
- Shanghai
- T/T
- China easy operated scissor lift platform, truck mounted platform scissor lift
- China low cost hydraulic elevating platform, truck mounted platform scissor lift
- 2015 hot sale double ladder stop type hydraulic scaffolding lift
- Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
- China factory direct sale self propelled scissor lift table / hydraulic scissor lift
- China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | HOCEN | Model Number: | SJY0.4-12 |
Lift Mechanism: | Scissor Lift | Lift Drive / Actuation: | Hydraulic | Power: | 1.5kw |
Rated Loading Capacity: | 300kg | Min. Lifting Height: | 1500mm | Max. Lifting Height: | 9000mm |
Table Size: | 1800mm*1000mm | Overall Dimensions: | 2000mm*1200mm*1600mm | Weight: | 1200kg |
Certification: | ISO9001-2008 | Warranty: | one year for hydraulic scissor lift platform | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

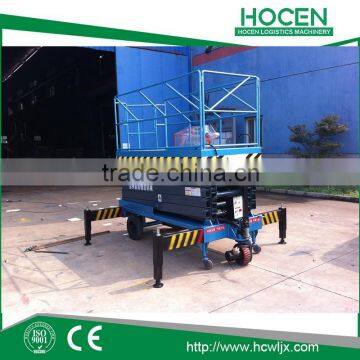

12M Scissor Lift Pallet Truck Aerial Work Platform Material Handling Hand Lift Order Picker Harga Hand Stacker Manual Harga Lift
Hydraulic scissor lift platform description:
Mobile lift platform is versatile aerial work special equipment.The it scissor mechanical structure, make the lifting platform lifting has high stability, wide operating platform and high bearing capacity, make the work high above the range is bigger, and is suitable for many people work at the same time.It makes the work high above the more efficient, safe and more security.
Note: all mobile aerial work platform can be configured mobile work platform and ac/dc power and hand pump power
Hydraulic scissor lift platform advantage:
Lifting mechanism were made with high strength manganese steel major form.
To prevent lifting platform overload safety device.
Have a safety protection valve to prevent hydraulic pipeline rupture.
Outage case emergency drop device.
Lifting platform power matching
Ac 380 v power supply (general configuration)
Ac 220 v power supply
Dc power DC24V
Manual hydraulic pump power manual/electric dual power
Ac and dc dual power.
Safety configuration:
1.Limit switch
2.Over load protection
3.Rubber Oil pipe:double deck steer wire
4.Velocity fuse protection.
Hydraulic scissor lift platform parameters:
Model Numbe | Rate load (kg) | Maximum height(mm) | Minimum heigt(mm) | table size(mm) L*W | Rise time(s) | Power (kw) | Weight(kg) | ||||||||
SJY0.45-3 | 450 | 3000 | 850 | 1400×700 | 16 | 1.1 | 400 | ||||||||
SJY0.45-5 | 450 | 5000 | 950 | 1400*850 | 43 | 1.1 | 620 | ||||||||
SJY0.3-6 | 300 | 6000 | 950 | 1800×880 | 49 | 1.1 | 650 | ||||||||
SJY0.45-6 | 450 | 6000 | 950 | 1800×880 | 54 | 1.1 | 650 | ||||||||
SJY0.45-7.5 | 450 | 7500 | 1350 | 1800×1000 | 72 | 1.5 | 1100 | ||||||||
SJY0.3-9 | 300 | 9000 | 1500 | 1800*1000 | 75 | 1.5 | 1200 | ||||||||
SJY0.45-9 | 450 | 9000 | 1550 | 1800×1000 | 80 | 1.5 | 1260 | ||||||||
SJY0.3-11 | 300 | 11000 | 1600 | 2100×1150 | 83 | 1.5 | 1320 | ||||||||
SJY0.45-11 | 450 | 11000 | 1600 | 2100×1150 | 88 | 2.2 | 1380 | ||||||||
SJY0.3-12 | 300 | 12000 | 1750 | 2450×1350 | 85 | 2.2 | 1700 | ||||||||
SJY0.45-12 | 450 | 12000 | 1600 | 2450×1350 | 90 | 3 | 1850 | ||||||||
SJY0.3-14 | 300 | 14000 | 1800 | 2450×1350 | 98 | 3 | 2200 | ||||||||
SJY0.45-14 | 450 | 14000 | 1800 | 2450×1350 | 120 | 3 | 2500 | ||||||||
SJY0.3-16 | 300 | 16000 | 1980 | 2750*1500 | 130 | 3 | 2200 |

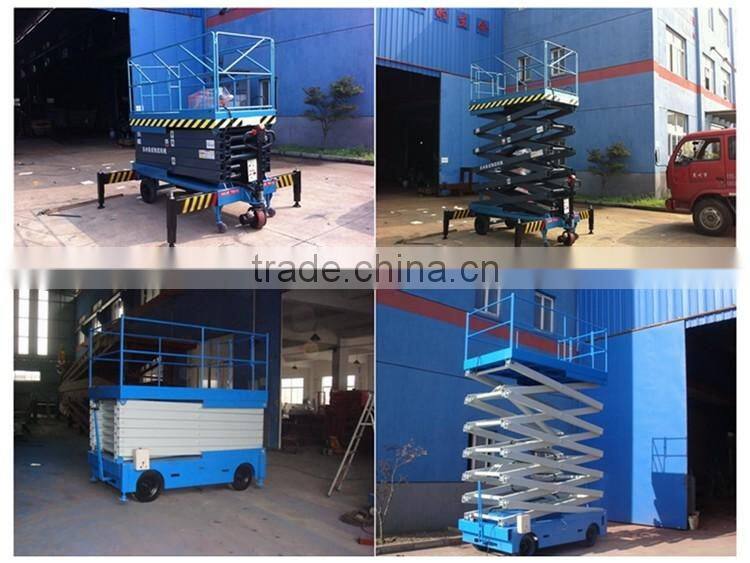

More products for your reference:
Hao Cheng service:
1. We supply ONE-STOP-SHOP solution service for logistics equipment.
2. We supply one year warranty and continuous parts supply
3. Company located in Suzhou,We also supply the ONE-STOP-SHOP logistics service for export business,Our nearest export port is Shanghai.
OUR COMPANY INFORMATION
ABOUT US
Established in 2008, Suzhou Haocheng Logistics machinery is a professional manufacturer and exporter that is concerned with the design, development and production of logistics equipments . We are located in Suzhou City. Jiangsu province. China , with convenient transportation .....
OUR ADVANTAGE
We have over 48 employees, an annual sales figure that exceeds USD 8 million and are currently exporting 25% of our production worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
OUR HONOR
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South Korea, American ,Thailand. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking ....
OUR CUSTOMER AND EXHIBITION:
Model Of Packing:
Method:Pallet,Wooden Case or Nude Packing...
We accept make to order,so pls tell me more detail about:
1.Max rate load(kg)
2.Max height (mm)
3.Table size (L*W)
4.Power and voltage
5. If it is possible, please send us the ddrawing, thanks!!
