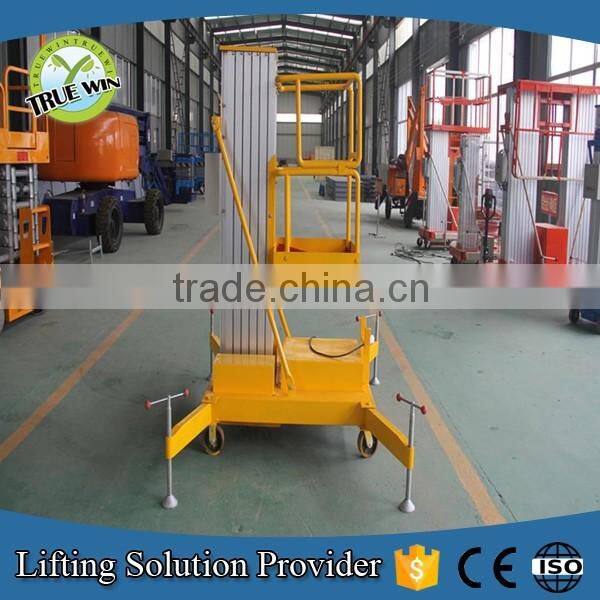

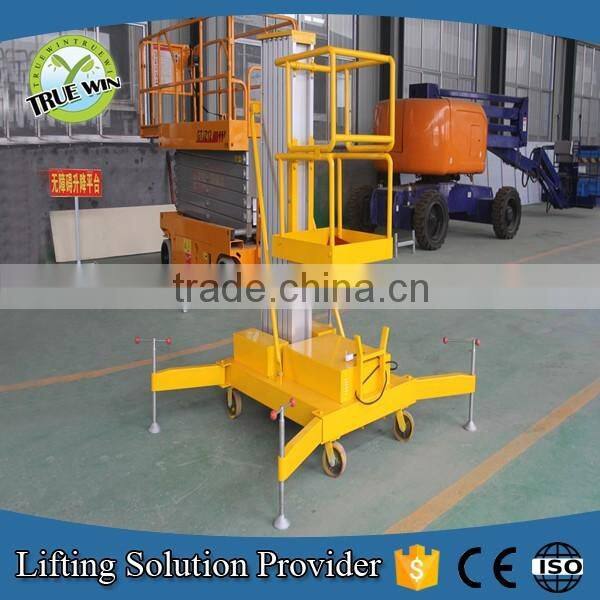

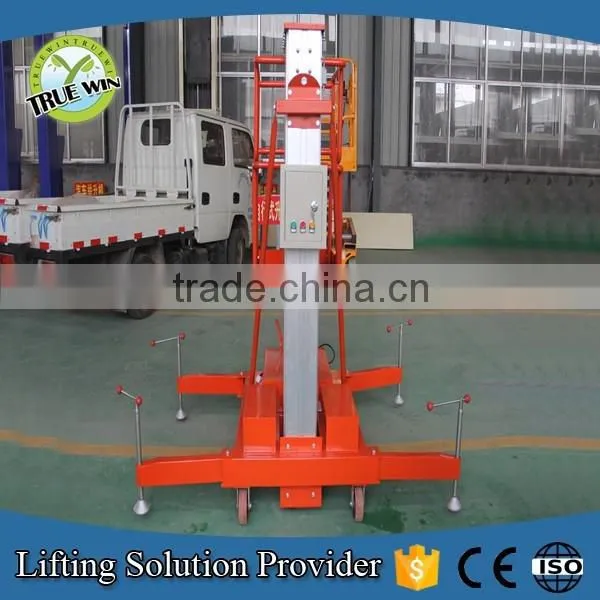

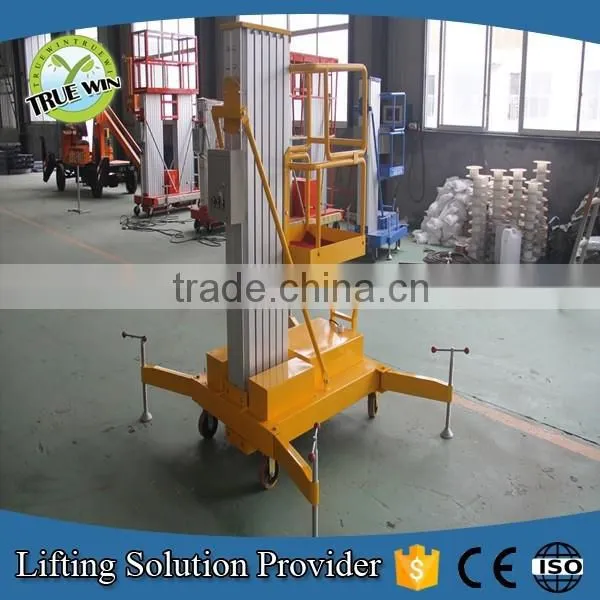

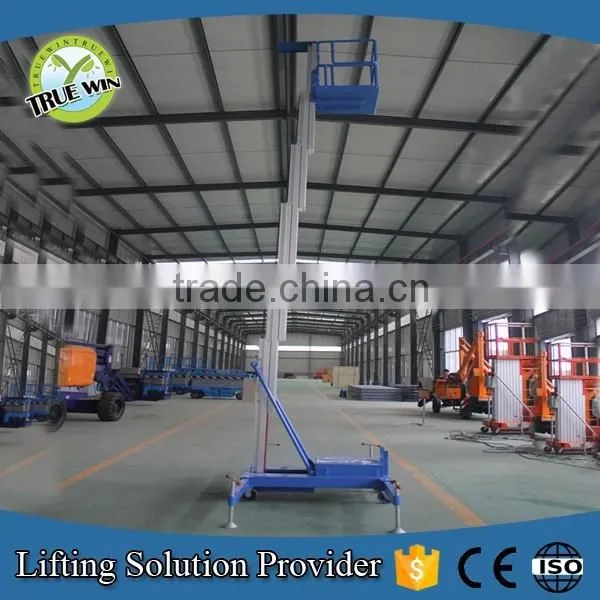

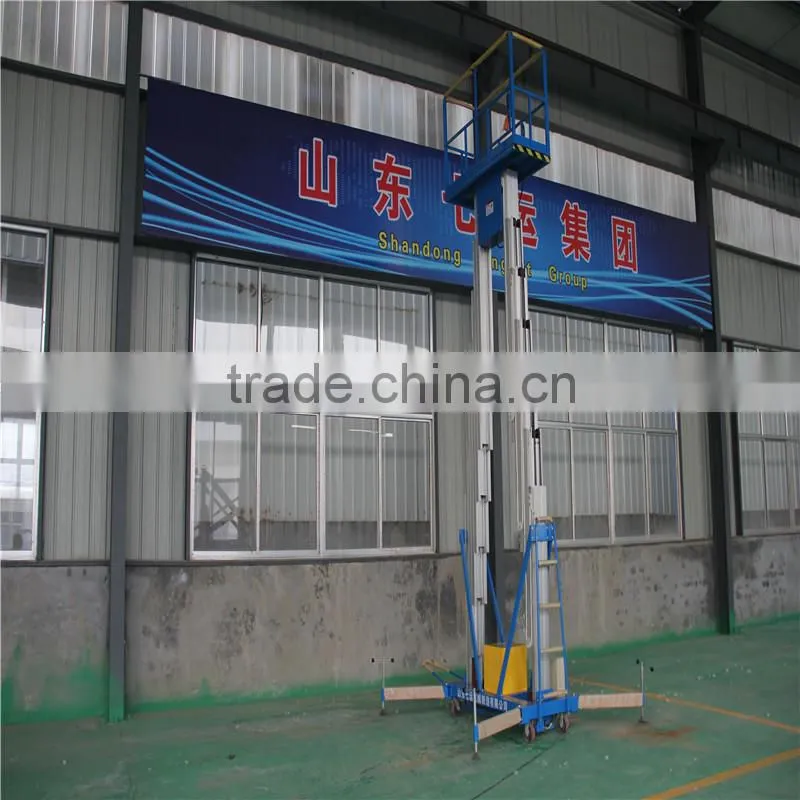

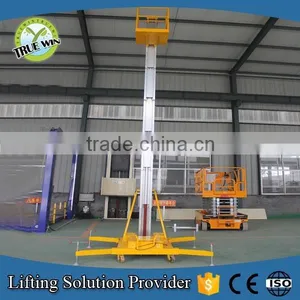

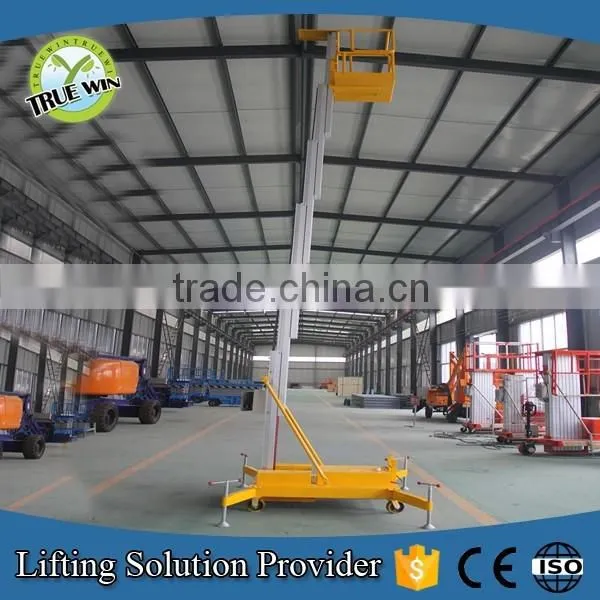

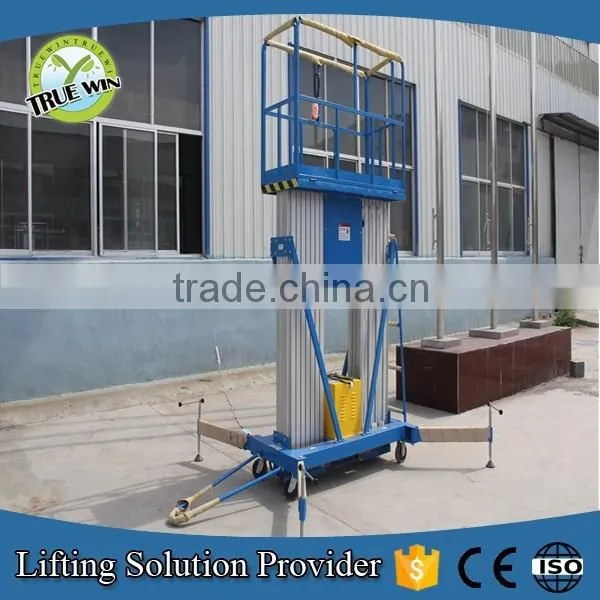

China High Strength Aluminum Alloy Materials Elevated Work Platform
- Qingdao
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
Portable Safety Stable Aluminum Alloy Lift Platform for Multi Pensonnel Work
-
Good Quality 8 Meter 0.1ton Single Post Aluminium Alloy Lifter
-
Good Quality 6 Meter 0.1ton Single Post Aluminium Alloy Lifter
-
Good Quality 6 Meter 0.1t Single Mast Aluminium Alloy Lifter
-
Portable Lift Table Aluminum Alloy Aerial Work Platform
-
28' Portable Electric One Person Lift
Product Details
| Place of Origin | Shandong, China | Brand Name | True Win | |
| Model Number | QYLH | Lift Mechanism | Lift Chain | |
| Lift Drive / Actuation | Hydraulic | Power | 1.5kw | |
| Rated Loading Capacity | 200kg | Min. Lifting Height | 0.5m | |
| Max. Lifting Height | 14m | Table Size | 1500*600mm | |
| Overall Dimensions | 1450*890*1980mm--1750*950*2300mm | Weight | 550kg | |
| Certification | CE ISO9001 | Warranty | 12 Months | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Aluminum alloy hydraulic lifting platform is built with high strongth aluminum alloy materials.It is a classical design vertical man lift for light duty aerial working,with the flexible pyramid design.
The safety protection device and imported pump,increases the service life and safety Assurance.
Type | Lift height | Outline size(mm) | Table size(mm) | Load capacity(kg) | Oil cylinder | Motor (kw) |
Single mast | 6m | 1300*800*1620 | 600*600 | 125 | 50*1 | 0.75 |
8m | 1375*830*1980 | 600*600 | 125 | 50*1 | 0.75 | |
10m | 1400*900*1980 | 600*600 | 100 | 50*1 | 0.75 | |
Dual mast | 6m | 1450*890*1980 | 1200*540 | 200 | 50*2 | 1.5 |
8m | 1450*890*1980 | 1200*600 | 200 | 50*2 | 1.5 | |
10m | 1550*890*1980 | 1400*600 | 200 | 50*2 | 1.5 | |
12m | 1700*920*1980 | 1500*600 | 200 | 50*2 | 1.5 | |
14m | 1750*950*2300 | 1550*600 | 200 | 60*2 | 1.5 | |
Three mast | 12m | 1300*2000*1980 | 1450*540 | 200 | 60*3 | 2.2 |
14m | 1200*1950*2350 | 1600*880 | 200 | 60*3 | 2.2 | |
16m | 1200*2000*2650 | 1780*800 | 200 | 60*3 | 2.2 | |
Four mast/six mast | 16m | 2000*1000*2650 | 1700*800 | 200 | 60*4 | 2.2 |
18m | 2100*1000*2800 | 1700*500 | 200 | 60*4 | 2.2 | |
20m | 2400*1300*2950 | 1700*500 | 200 | 60*4 | 2.2 |
The most spacious platforms for light duty aerial working.
The platforms are packed in Plywood case.We will arrange the shipment within 20 days after signing the contract.
1.The safety protection device and imported pump,increases the service life and safety Assurance.
2.One year warranty for whole machines.
4.Free training to end-users.
5.24 hours online service and support.
