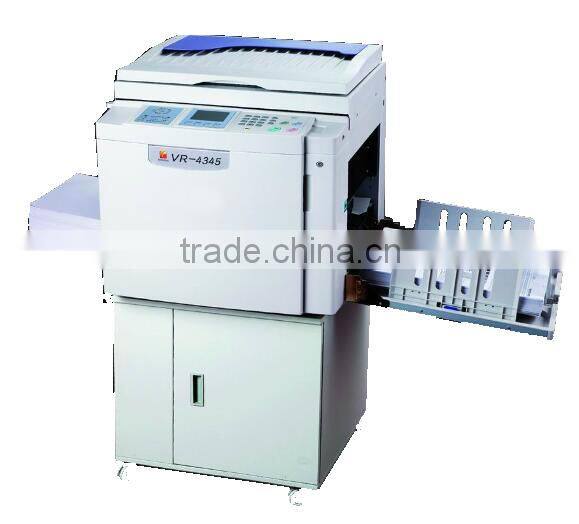

B4 Digtal Duplicator with Long Time Free Technical Support

Model

VR-4345

Type

Digital, desktop

Control Panel

Middle LCD Control Panel

Master- Making

High Speed Digital Thermal Master-Making

Scanning

Glass Platen

Printing Type

High-speed digital master-making/

Fully automatic stencil printing

Original Type

Book/Magazine(no more than 10kgs),sheet

Image Mode

Text/Picture/Text & Picture/Newspaper/Screen

First Copy Time

Approx. 25 seconds(A4)

Scanning Resolution

300dpi*400dpi

Original Size(min/max)

50mm*90mm-297mm*420mm

Scanning Area (max)

297mm*420mm

Printing Area (max)

250mm*355mm

Paper Size(min/max)

90mm*140mm-297mm*420mm

Paper Weight(min/max)

35gsm-210 gsm

Paper Feeding Plate:

Approx. 1000 sheets (70gsm)

Paper Receiving Plate:

Approx. 1000 sheets(70gsm)

Production ratios/zoom

Standard:

Enlargement:115%, 122%, 141%

Reduction:, 94%, 87%, 81%,71%

Free Zooming:50%-200%(in 1% steps)

Printing Speed

5 selections(55,70,85,105,130sheets/min)

Printing Position Adjustment

Horizontal: ±20mm Verticals: ±10mm

Ink Feeding

Fully Automatic(600ml/bottle)

Master Feeding

Fully Automatic(Approx 178sheets/roll)

Master Eject Box Capacity

More than 25 sheets - 40 sheets

Other Function

Ink Saving Mode, Fast Ink Output, Two In One Function, Middle aperture clearance, Automatic/Manual Equation Ink, Printing Density Adjustment, Scanning Density Adjustment, Master-Making Density Adjustment, PC Connection, Master-Making From U Disk (Option) , Network Printing (Option), Security Function, Automatic Standby, Automatic Shutdown, Automatic Printing Density Control.

Power Supply

220V-240VAC,50/60Hz

Dimension(D*W*H)

Using: 1320(D)*625(W)*560(H)

Storage: 635(D)*625(W)*560(H)

Machine Weight

Approx. 67Kgs

(without packing)

Features:

Intelligent flat bed scanner

Middle LED screen operation panel

Two in one

PC connection

High speed print
