Single Color Offset Numbering Printing Machine with Perforation
- 100 Unit / Units per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Plate Type: | Flatbed Printer | Place of Origin: | Jiangsu, China |
Brand Name: | Ruicai | Model Number: | 56IINP | Usage: | Paper Printer |
Automatic Grade: | Automatic | Voltage: | 220V/50Hz | Gross Power: | 1.3kw |
Dimensions(L*W*H): | 2089*1060*1340mm | Weight: | 930kgs | Certification: | ISO9001 CE |
After-sales Service Provided: | Overseas service center available |
Product Description

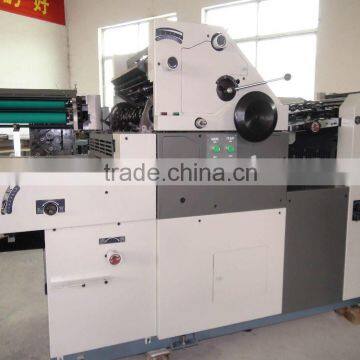

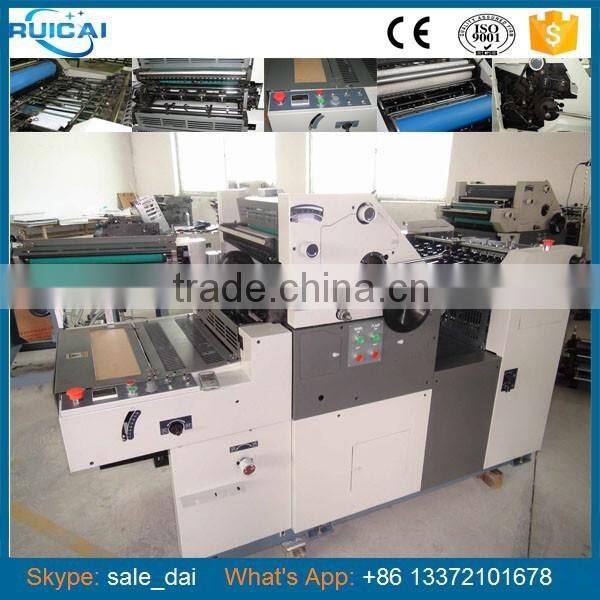

Single Color Offset Numbering Printing Machine with Perforation 56IINP
Model | 56IINP |
Max Printing Area | 540*380mm |
Max Paper Size | 560*395mm |
Blanket Size | 560*455*1.95mm |
Paper Type | 28-250g |
Ink Roller | Main system 14pcs(3 form ink rollers),NP system 6pcs(2 form ink rollers) |
Dampening Rollers | 4 pcs (1 form dampening roller) |
Registering mechanism | Roller type side lay |
Plate Size | 560*455*0.15mm |
Printing Speed | 2000-9000pcs/hr |
Numbering device | Straight type (horizontal): 63 heads Max. (9 heads on a ring × 7 rings on a shaft) Convex type (vertical): 56 heads Max. (7 heads on a ring × 8 rings on a shaft) |
Letter press printing device | Cylinder type: 90 × 345mm Max. Mounting ring type: 30 × 40mm Max. |
Perforating device | Cross perforation: Min 25mm Vertical perforation: 5mm(blade-perfo type) |
Main Motor | 0.75kw |
Air Pump Motor | 0.55kw |
Machine Size | 2089*1060*1340mm |
Machine Weight | 930kgs |
56IINP single color offset printing machine with number printing
1) Single color offset printer for sale
2) Equipped with multi-purpose NP system
3) Suitable for resin relief plate printing available
4) Ink applicator for number printing adopts open-close type, which can be opened and closed within an angle of 120 degrees
5) Two ink form rollers in NP system enable to get enough ink for relief printing and color printing
6) Line-pressing device can simultaneously press both column and lateral lines
7) Lines are precisely pressed in the right location
8) Double sheets detection:It can avoid the problem such as double sheets,paper overlap and non-stop.
9) Exact registration:Front paper stopper of registration, both side-pulled-paper stopper, paper feeding horizontal registration, paper feeding table slight adjustment,plate cylinder registration of up/down.
10) Preset counter:This machine adopts electromagnetic preset counter. If the quantized printing work finishes, the paper feeding stops automatically.
11) Double sheets detection:It can avoid the problem such as double sheets,paper overlap and non-stop.
12) The whole machine is controlled by PLC. There are functions such as auto press, auto stop while paper jam, powder jet, steps running forward and backward.
1. Ruicai Provide 20 months warranty for all customers.
2. During warranty, we provide free normal spare parts once machine has probem.
3. Ruicai will solve customer's machine problem within 24 hours from the time problem raised.
4. Ruicai has enough spare parts for machines.
5. When machine out of warranty, Ruicai still provide free technical support and spare parts charged to customers.
