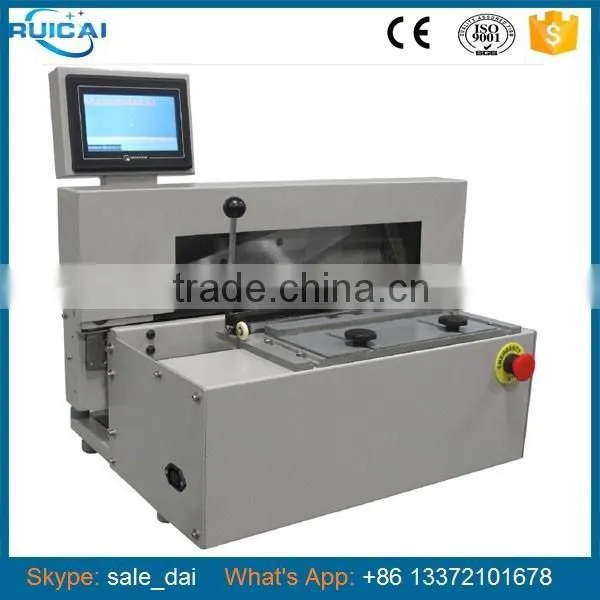

Electrical Index Cutting Machine

Name: Electrical Index Cutting Machine
Brand: RUICAI
SKU: 131411045

US$ 1,000 - 2,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Type:

Other, Electrical Index Cutting Machine

Automatic Grade:

Automatic

Suzhou Ruicai Electron Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Electrical Index Cutting Machine

Automatic Grade Automatic

Place of Origin Jiangsu, China

Brand Name RUICAI

Model Number RC-32A

Voltage 220V/110V

Power(W) in

Dimension(L*W*H) 80*620*600mm

Weight 45kgs

Certification CE

Warranty 20 months

After-sales Service Provided Overseas service center available

Electric Index Cutting Machine

Electrical Index Cutting Machine
Max. Width	320mm
Number of tabs	2~31
Max. number of sheets	30 sheets
Power Supply	220V/110V (Optional)
Machine Weight	45kg
Machine dimensions	80×620×600mm
Characteristics
RC-32A Electrical Index cutting machine This index cutting machines allows you to create your index / tab dividers on books, booklets and single sheet quickly and easily. It can be used in copy shop, printing house, office, school and etc. Put the sheets against left side and clamp, step the foot pedal and cut off the first part. Move to the second position automatically; put the cutter part in the gap. Page to the next position and cut, repeat this activity till finish the job.
Description
PLC control system, programming the cutting position, length and number of sheets as needed. Touchable color LCD screen, convenient setting. Foot pedal. Allowing choose system default position in auto-mode,or control the cutting position manually. Index cutting the bound books as well as single sheet. Up to 31 index dividers to any length up to 320mm. Suitable for paper and cardboard which between 70~500gsm. Can cut 30 sheets in a single stroke. Great for repeat or regular jobs. High-quality special blade, exclusive knife type arc design, cutter body is fully closed to ensure the operator’s safety.
