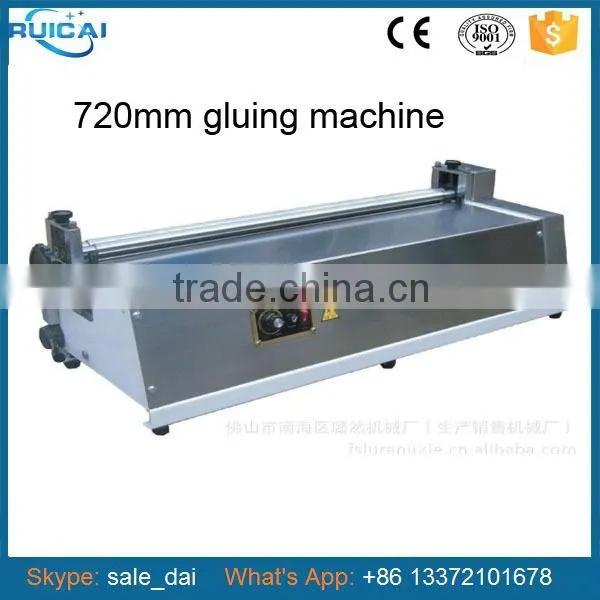

450mm/530mm/720mm/1000mm Desktop Electric Adhesive Gluing Machine

Model

JS720

HJS720

Max Gluing Length

700mm

700mm

Max Gluing Thickness

80-400g

80-400g

Speed

0-40m/min

0-40m/min

Cold Gluing (White Glue)

Yes

Yes

Hot Gluing (Hot Melt Glue)

no

Yes

Power

90W

Machine Weight

45kgs

60kgs

Machine Size

920*330*310mm

1150*470*460mm

Characteristics

1 Install:

The machine must be placed on a horizontal work surface, without serious tilt phenomenon, otherwise, will allow the glue to one end of the gathering while outflow glue tray outside

2 test machine:

Power before the test machine, manually turn the handle (clockwise), without any exceptions, turn on the power switch (this switch and motor adjustment knob at the same electrical panel), rotary motor tune speed knob, the machine starts from slow to fast rotation. (Note that the hot melt adhesive glue machine before adding water to open the machine oh non-heating anhydrous)

3 Adjustments for:

a subbing layer thickness adjustment: simultaneously rotating layer thickness regulating handle (this handle the left and right of each one), with a rubber roller to move back and forth, and the gap between the upper rollers is changed, thereby adjusting a

Satisfied with the thickness of the adhesive layer. Then tighten the screw on the nut. Adjustment range of layer thickness 0.03 ~ 0.10MM.

platen roller adjustment: Loosen the platen roller adjustment knob (about each one) on the star handle, nut rotating under it, can move up and down the platen roller. To bring up the paper gap Note

: This gap should be at least greater than the layer thickness of the tone. This will keep the platen roller with glue.

4 plastic tray disassembly:

Native plastic disc structure parallelogram body, gently pulling the plastic tray handling the handle to the downstream limit can only counterclockwise, remove the plastic tray, let go, plastic trays will automatically reset, re-

Repeat the above procedure, the plastic tray fitted.
