Help CenterNew Walkie Talkie TYT Tyera TC-3000B 4W 16CH UHF 400-520MHz Scan VOX Emergency Alarm Non-standard CTCSS/DCS Code Ham Radio
Related Products
-
New Black Professional FM Transceiver FDC FD-830 UHF 400-470MHz 16CH 5W Scan VOX Emergency Alarm Rain-proof IP54 Walkie TalkieNegotiableMOQ: 1 Piece -
New Orange TeGood TG-189 UHF 400-480 MHz 5W 16CH Monitor Flashlights With Earpiece FM Transceiver Small Walkie TalkieNegotiableMOQ: 1 Piece
-
New Green TeGood TG-189 UHF 400-480 MHz 5W 16CH Monitor Flashlights With Earpiece FM Transceiver Small Two Way RadioNegotiableMOQ: 1 Piece
-
New Red/Blue/Green/Orang TeGood TG-189 UHF 400-480 MHz 5W 16CH Monitor Flashlights With Earpiece FM Transceiver Walkie TalkieNegotiableMOQ: 1 Piece
-
New Blue TeGood TG-189 UHF 400-480 MHz 5W 16CH Monitor Flashlights With Earpiece FM Transceiver Small Walkie TalkieNegotiableMOQ: 1 Piece
Specifications
Frequency range :UHF:400-520MHzchannel :16
Hot spots
- Multi-functional side-key assignment
- Non-standard CTCSS/DCS code
- End-tone elimination/Emergency alerm
All of our item are brand News | |
Model |
Tytera TC-3000B |
Frequency Range |
UHF:400-520MHz |
Channel capacity |
1400mAh |
Output power |
4W |
Operating Voltage |
7.2V |
Antenna Impedance |
50 ohm |
Working Temperature |
-20°C—+60°C |
Mode of operation |
Simple |
Frequency Spacing |
12.5/25kHz |
Battery capacity |
1400mAh |
Color |
Black |
Dimension(Exclude antenna) |
115x52x31mm(LxWxH) |
Weight(Include Battery) |
179g |
Feature | |
CTCSS/DCS |
Yes |
Non-standard CTCSS/DCS code |
Yes |
English voice prompt |
Yes |
Battery-saving function |
Yes |
High-low power selectable |
Yes |
PC software programming |
Yes |
Ultra-long standby time |
Yes |
Wide/narrow bandwidth selectable |
Yes |
End-tone elimination |
Yes |
Emergency alarm |
Yes |
VOX function |
Yes |
Scan function |
Yes |
Specification | |
Modulation mode |
16k¢F3E |
Spurious radiation |
<=7.5µW |
Modulation noise |
<-40dB |
Modulation distortion |
<=+-5kHz |
Frequency stability |
5ppm |
Maximum deviation |
<=+-5kHz |
Current |
<=1100mA |
Audio response |
(300-3000Hz):+6.5—-14dB |
Adjacent CH. Power |
.=65dB |
Intermediation sensitivity |
8—12mV |
Receiver | |
Sensitivity |
<=0.2µV |
Occupied bandwidth |
<=16kHz |
Selectivity |
>=65dB |
Intermediation |
>=55db |
Audio power |
1W |
Audio distortion |
<=5% |
Frequency stability |
5ppm |
Current |
60mA(when standby)150mA(when working) |
Audio response |
(300-3000Hz):+7—-12.5dB |

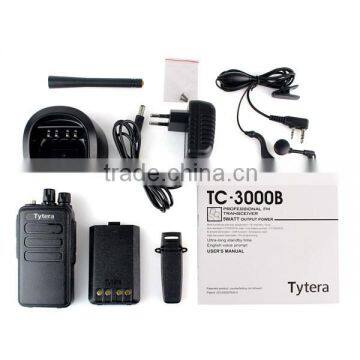

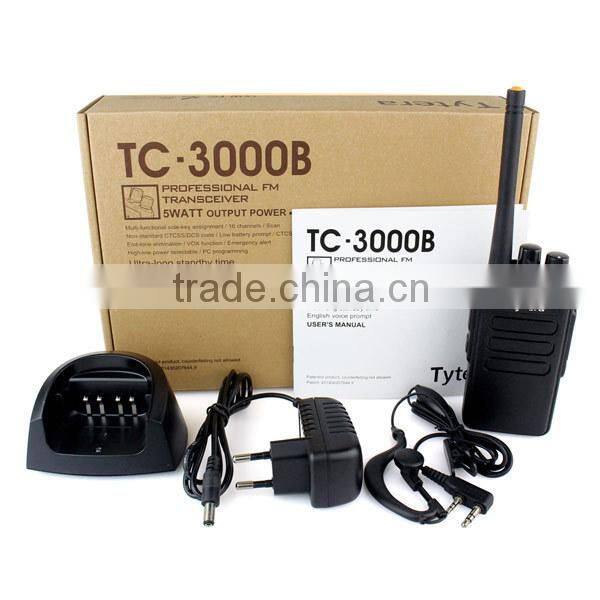

1 X Portable radio
1 X Antenna
1 X Li-ion battery pack
1 X LI-ion charger
1 X Belt clip
1 X Earpiece
1 X Sling
1 X User's manual
