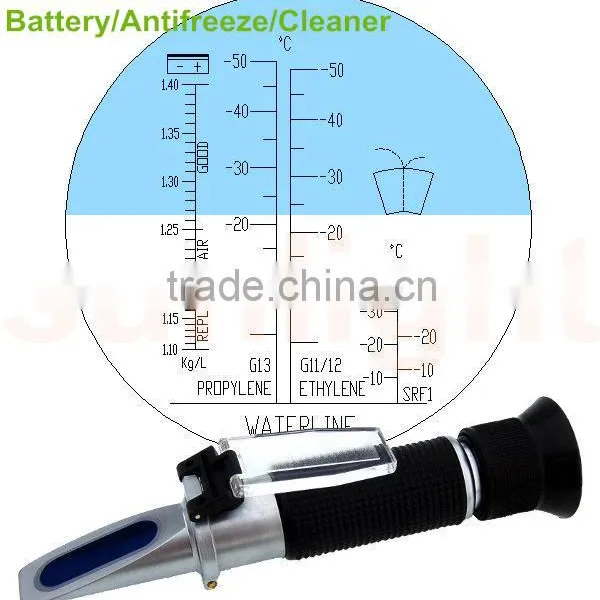

RHA-503ATC Car Antifreeze Battery Cleaner Fluid Refractometer
Application:
The RHA series are designed for measuring the concentration of the battery fluids. the freezing point of antifreeze liquid and windshield cleaning fluid. With the indication of the percentage you may know at which temperature the fluid will be frozen for both propylene glycol and ethylene glycol. It can also be used for checking the strength of electrolyte solution battery.
Specification:
Model |
RHA-100ATC |
RHA-200ATC |
RHA-300ATC |
RHA-415ATC | RHA-503ATC |
Measuring Range |
|
|
|
|
|
Ethylene Glycol |
-84 ° F ~ -32 ° F |
-60 ° F ~ 0° F |
-60 ° F ~ 32° F |
-60°C -0°C | -50 ° C ~ 0° C |
| Ethylene Glycol(%) | - | - | - | 0 to 100 % | - |
Propylene Glycol |
-60 ° F ~ - 32 °F |
-50 ° F ~ 0 ° F |
-50 ° F ~ 32 ° F |
-50 ° C ~ 0 ° C |
|
Battery |
1.100-1 .400 sg |
1.100-1 .400 sg |
1.15-1 .30 sg |
1.10 to 1.40 sg | 1.100-1 .400 sg |
Cleaner |
- |
- |
- |
- | -40 ° C-0 ° C |
Resolution |
|
|
|
|
|
Ethylene Glycol |
5 ° F |
5 ° F |
5 ° F |
5 ° C | 5 ° C |
| Ethylene Glycol(%) | - | - | - | 5% | - |
Propylene Glycol |
5 ° F |
5 ° F |
5 ° F |
5 ° C |
|
Battery |
0.01sg |
0.01sg |
0.01sg |
0.01sg | 0.01sg |
Cleaner |
- |
- |
- |
- | 5 ° C |
Accuracy |
|
|
|
|
|
Ethylene Glycol |
+/- 5 ° F |
+/- 5 ° F |
+/- 5 ° F |
+/-5 ° C | +/-5 ° C |
| Ethylene Glycol(%) | - | - | - | +/-5% | - |
Propylene Glycol |
+/- 5 ° F |
+/- 5 ° F |
+/- 5 ° F |
+/-5 ° C |
|
Battery |
+/- 0.01sg |
+/- 0.01sg |
+/- 0.01sg |
+/-0.01sg | +/-0.01sg |
Cleaner |
- |
- |
- |
- | +/-5 ° C |
| ATC | Yes | Yes | Yes | Yes | Yes |
| ATC Temp. | 0-30°C | 0-30°C | 0-30°C | 0-30°C | 0-30°C |
Dimensions: |
24.5mm*145mm |
24.5mm*170mm |
24.5mm*170mm |
24.5mm*150mm |
24.5mm*150mm |
Weight: |
0.12kg |
0.13kg |
0.13kg |
0.11kg |
0.11kg |
