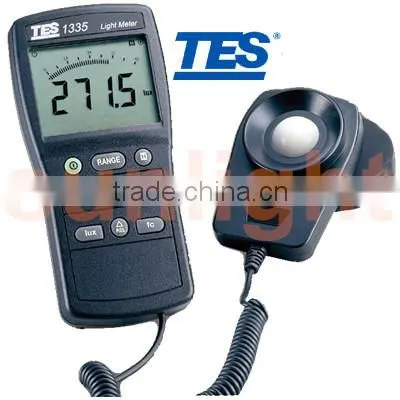

TES-1335 Digital Light Meter
Features
Spectral Sensitivity close to CIE photopic Curve.
Measuring Levels Ranging 0 to 400,000 Lux, 0 to 40, 000 fc.
Accurate and Instant response.
Data Hold function.
MAX/MIN function.
Peak Hold function.
Relative function.
Cosine Angular corrected.
Auto-Power-Off function.
CNS 5119 class11
Specifications:
Display |
3 3/4 digit LCD with bargraph indication |
Measuring Range |
40, 400, 4000, 40000, 400000 Lux |
Overrange Display |
Highest digit of (1) is displayed |
Resolution |
0.01 Lux |
Accuracy |
±3% rdg ±0.5dgt (Calibrated to standard |
CIE photopic f ' 1 |
< 9% |
Temperature Characteristics |
±0.1% / °C |
Measuring Rate |
Approximately 2.5 time/sec |
Photosensor |
Silicon photodiodes |
Operating / |
0°C ~ 50°C < 80% RH |
Power Source |
6 pcs AAA size Battery |
Battery Life (typical) |
200 hours |
Photosensor Lead Length |
150 cm (approx.) |
Photosensor Dimensions |
100(L) ×60(W) ×27(H)mm |
Dimension |
135(L) ×72(W) ×33(H)mm |
Weight |
250g |
Accessories |
Carrying case, Instruction manual, Battery |
