Help Center5W 128CH UHF VHF Dual Band VHF136-174MHz & UHF400-520MHz Baofeng Uv5ra Updated UV-5R Waike Talke
Related Products
-
Red Dual Band 5W 128CH UHF VHF Two Way Radio Interphone UV5R UV-5RNegotiableMOQ: 1 Piece -
Baofeng UV-5RC 5W 128CH Portable UHF VHF Dual Band Radio BaofengNegotiableMOQ: 100 Sets
-
The Cheap 5W 128CH Dual Band VHF136-174MHz & UHF400-520MHz Two Way Radio Baofeng UV-5RBNegotiableMOQ: 10 Sets
-
The Cheap 5W 128CH Baofeng Uv-5rb Dual Band UHF VHF Walkie TalkieNegotiableMOQ: 50 Pieces
-
New Red UHF VHF Dual Band Walkie Talkie Red UV-5RA UV5RANegotiableMOQ: 5 Pieces
The frequencies has upgated into UHF: 400-520 MHz + VHF: 136-174 MHz for new edition
Model |
BF UV-5RA |
||
Hot Spots: UHF: 400-520 MHz + VHF: 136-174 MHz | |||
Dual band / dual display / dual standby |
A/B band independent operation(UV UU VU VV) |
||
128 groups channels storage |
Shortcut menu operation mode |
||
VFO & Memory channels scan |
Emergency Alarm |
||
Time-out Timer (TOT) |
0~9 grades VOX selectable |
||
PTT & ANI ID |
FM radio and 25 stations storage |
||
Voice commanding |
50 CTCSS/105 DCS |
||
High/Low TX power selectable |
IP65 Rain Waterproof |
||
DTMF function |
OFF SET function |
||
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
|
VOX function |
Yes |
|
|
Busy channel lock-out(BCLO) |
Yes |
|
|
Busy lockout function |
Yes |
|
|
Frequency step |
Yes |
2.5/5/6.25/10/12.5/25KHz |
|
Scanning function |
Yes |
|
|
Monitor function |
Yes |
|
|
Time-out Timer (TOT) function |
Yes |
|
|
LCD display |
Yes |
|
|
Dual display |
Yes |
|
|
Battery voltage display function |
Yes |
|
|
Channel name display and editing functions |
Yes |
|
|
Signal strength indicator |
Yes |
|
|
Keypad lock function |
Yes |
|
|
Built-in Led torch |
Yes |
|
|
FM radio |
Yes |
|
|
Wire clone function |
Yes |
|
|
Emergency alarm function |
Yes |
|
|
Low battery alarm |
Yes |
|
|
Power saving function |
Yes |
|
|
High/Low TX power selectable |
Yes |
VHF:5W/1W UHF:4W/1W |
|
ROGER SET |
Yes |
|
|
Chinese and English voice prompt |
Yes |
|
|
PC software programmable |
Yes |
|
|
Basic Descriptions | |||
Rated Voltage |
7.4V DC±10% |
||
Output power |
5W |
||
Battery type |
Li-ion battery |
||
Battery capacity |
1800mAh |
||
Working temperature |
-20~+50°C |
||
Antenna Impedance |
50Ω |
||
Weight |
255g |
||
Dimension(L×W×H) |
58×32×110mm(Not Antenna) |
||
Specification | |||
Frequency stability |
+-2.5ppm |
||
Carrier wave tolerance |
5ppm |
||
Modulation |
16kΦF3E / 11kΦF3E |
||
Max frequency deviation |
< 5kHz(Wide) < 2.5kHz(Narrow) |
||
Modulation character |
6 dB per fold frequency patch |
||
Emission current |
< 1.6A(5W) |
||
CTCSS / DCS |
0.5+-0.1kHz(Wide) 0.3+-0.1kHz(Narrow) |
||
Sensitivity |
< 0.16uV(12dB SINAD) |
||
Silent sensitivity |
< 0.2uV |
||
Intermediation Distortion |
<10% |
||
Inter modulation |
8-12mv |
||
Adjacent channel selectivity( wide/narrow) |
<-65dB(Wide) <-60dB(Narrow) |
||

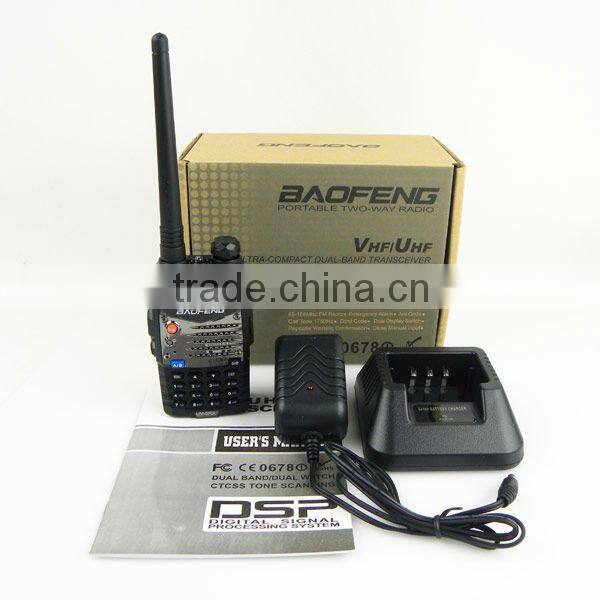

1 x Portable radio
1 x Antenna
1 x Li-ion battery pack
1 x LI-ion charger
1 x Belt clip
1 x The sling
1 x Earpiece
1 x User manual
