Home > Instruments & Meters > Meter for Liquid & Gas > Thermometer & Hygrometer > Infrared Thermal Imager, 384*288 Resolution, Infrared/Visible Light/PIP/Blend, -20 - +300 Degree Centigrade SL380D

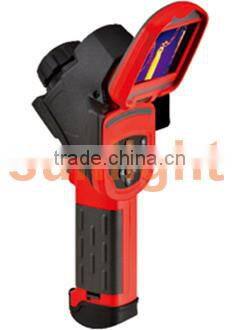

Infrared Thermal Imager, 384*288 Resolution, Infrared/Visible Light/PIP/Blend, -20 - +300 Degree Centigrade SL380D

Name: Infrared Thermal Imager, 384*288 Resolution, Infrared/Visible Light/PIP/Blend, -20 - +300 Degree Centigrade SL380D
Brand: Sunlight
SKU: 131402243
Availability: InStock

Shanghai Sunlight Electronic Technology Company Limited

Infrared Thermal Imager, 384*288 Resolution, Infrared/Visible Light/PIP/Blend, -20 - +300 Degree Centigrade SL380D thumbnail-1

Infrared Thermal Imager, 384*288 Resolution, Infrared/Visible Light/PIP/Blend, -20 - +300 Degree Centigrade SL380D photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Sunlight

Model Number:

SL380D(-20°C-+300°C)

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Sunlight

Model Number SL380D(-20°C-+300°C)

Usage Industrial

Theory Infrared Thermometer

Accuracy ±2°C

Temperature Range -20°C-+300°C

Descriptions:

SL380D (384*288): a high-definition IR thermal imager with all-in-one design; vibration-proof, a very considerate protection for lens, LCD and precision components; a tool especially able to cover your needs in particular fields.
Applicable industries:electric power,construction,electronics,smelting,energy,railway,automobile,petrochemical.

Specifications:

Model	SL380D
Sensor Type	Uncooled Focal Plane Arrays
Resolution	384 x 288
View of View / Minimum Focus Distance	24°×18°/0.1m
Spatial Resolution (IFOV)	2.2mrad
Visible Light Resolution	640*480 full color
Image Mode	Infrared/visible light/pip/blend
Focus	Manual
Infrared Spectral Band	8~14um
NETD	≤0.05°C@°C
Temperature Range	-20°C~300°C
Accuracy	±2°C or ±2% (whichever is greater)
Features
Display Type	3.5"TFT LCD; Ratable
Palettes	Iron, Iron-Invert, Rainbow, Feather, Grey, Grey Inverted
Images Adjustable	Auto/Manual
Image Format	*·TIR .CCD(visible light)
Video Output	Support: PAL(50Hz) or NTSC(60Hz)
Measurement Mode	9Movable Spot, Area(MAX,MIN),isothermality analysis,straight line analysis,five moveable area mode
Parameters Setting	Emissivity, Distance, Temperature, Relative Humidity
Temperature calculate	Yes
High/Low Temperature Alarm	Yes
Laser Pointer	Yes
Image Capture	Yes
Image Storage	2GB SD Card
Temperature Units	°F/°F
Flashlight	yes
Support Languages	English/Simplified Chinese
Factory Setting	Yes
Power Mode	Standard / Power Saving auto power off
Analyzing Software	Report format:can automatic create report,can transmit to word format
Water Proof Rating	IP54
Impact/Vibration	25G/2G
General Characteristics
Power	Li-ion
Product Color	Red and Gray
Product Net Weight	700g(battery included UTi380D)
Product Size	220mm * 215mm * 80mm

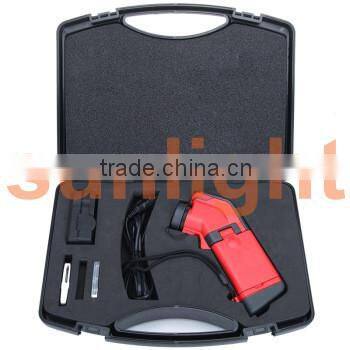

Standard Accessories	Batteries, Seat Charger, SD Card (2G), Card Reader,Video Cable Camera Cover, Lens hood,Software CD
Standard Individual Packaging	Gift box, Toolbox, User Manual
Standard Quantity Per Carton	3PCs
Standard Carton Measurement	565mm × 440mm × 380mm
Standard Carton Gross Weight	11.5 Kg
Optional Accessories*
Power Adapter,16G SD card,Vehicular Power Cord,9°12°48°lens, Temperature Range (600°F,1000°F, 1500°F Available)

Contrast:

Model	SL160B	SL160D	SL380D
Sensor Type	Uncooled Focal Plane Arrays
Resolution	160 x 120	160 x 120	384 x 288
View of View / Minimum Focus Distance	20°×15°/0.1m	20×15°/0.1m	24°×18°/0.1m
Spatial Resolution (IFOV)	2.2mrad
Visible Light Resolution	no	640*480 full color
Image Mode	Infrared	Infrared/visible light/pip/blend
Focus	Manual
Infrared Spectral Band	8~14um
NETD	≤0.08°C@30°C	≤0.08°C@30°C	≤0.05°C@30°C
Temperature Range	-20°C~300°C	-20°C~400°C	-20°C~300°C
Accuracy	±2°C or ±2% (whichever is greater)
Features
Display Type	3.5"TFT LCD; Ratable
Palettes	Iron, Iron-Invert, Rainbow, Feather, Grey, Grey Inverted
Images Adjustable	Auto/Manual
Image Format	*·TIR	*·TIR .CCD(visible light)
Video Output	Support: PAL(50Hz) or NTSC(60Hz)
Measurement Mode	Movable Spot, Area(MAX,MIN)	4Movable Spot, Area(MAX,MIN),isothermality analysis	9Movable Spot, Area(MAX,MIN),isothermality analysis,straight line analysis,five moveable area mode
Parameters Setting	Emissivity, Distance, Temperature, Relative Humidity
Temperature calculate	Yes
High/Low Temperature Alarm	Yes
Laser Pointer	Yes
Image Capture	Yes
Image Storage	2GB SD Card
Temperature Units	°C/°F
Flashlight	no	yes	yes
Support Languages	English/Simplified Chinese
Factory Setting	Yes
Power Mode	Standard / Power Saving auto power off
Analyzing Software	Report format:can automatic create report,can transmit to word format
Water Proof Rating	IP54
Impact/Vibration	25G/2G
General Characteristics
Power	Li-ion
Product Color	Red and Gray
Product Net Weight	SL160B/D-600g(battery included); SL380D-700g(battery included SL380D)
Product Size	220mm X 215mm X 80mm
Standard Accessories	Batteries, Seat Charger, SD Card (2G), Card Reader,Video Cable Camera Cover, Lens hood,Software CD
Standard Individual Packaging	Gift box, Toolbox, User Manual
Standard Quantity Per Carton	3PCs
Standard Carton Measurement	565mm × 440mm × 380mm
Standard Carton Gross Weight	11.5 Kg
Optional Accessories*
Power Adapter,16G SD card,Vehicular Power Cord, SL160B/D - (3.8°6.4°12°38°Lens) , SL380D - (9°12°48°lens) Temperature Range (600°C,1000°C,1500°C Available)
