Home > Instruments & Meters > Meter for Electricity > Resistance Meter > TES-3660 Autoranging Insulation Resistance Tester

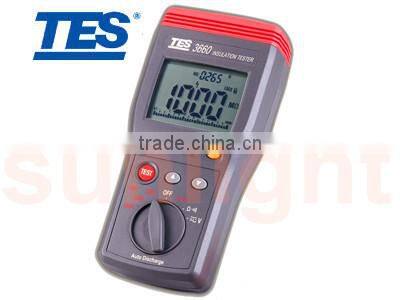

TES-3660 Autoranging Insulation Resistance Tester

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

TES

Model Number:

TES-3660

Contact Supplier Request Quote Chat Now

Shanghai Sunlight Electronic Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name TES

Model Number TES-3660

Display Type Digital Only

Testing Voltage 999V

Dimensions 235x116x54mm

TES-3660 Autoranging Insulation Tester

Features
Large LCD with analog bar graph and digital display.
250V, 500V, 1000V output voltage for insulation M Ω testing.
4000M Ω insulation testing with automatically switch to voltage measurement.
Lo Ω function for testing connections.
Autodischarge of capacitive voltage charges.
Last reading HOLD display.
AC/DC voltage measurement up to 1000V.
Manual data memory and read function (9 sets).
Meets EN61557 and IEC1010-1, CAT III 1000V.
Size : 235(L)x116(W)x54(H)mm (9.3"Lx4.6"Wx2.1"H)

Specifications:

Lo Ω

Range	Resolution	Accuracy	Short Ciruit Current
40.00 Ω	0.01 Ω	± 2%rdg ± 2dgts	>200mA

AC Voltage (40Hz to 500Hz)

Range	Resolution	Accuracy	Sensitivity	Overload Protection
999V	1V	2% +2	2V	1000Vrms

Input impedance : 9MΩ

Resistance (Continuity<40 Ω on the 9999 Ω range)

Range	Resolution	Accuracy	Overload Protection
9999 Ω	1 Ω	1% ± 2 dgts	1000V

DC Voltage

Range	Resolution	Accuracy	Sensitivity	Overload Protection
999V	1V	1% +2	2V	1000Vrms

Input impedance : 9MΩ

Insulation Resistance

Range	1000M Ω /250V w/ autorange 1000M/400M/40M/4M 2000M Ω /500V w/ autorange 2000M/400M/40M/4M 4000M Ω /1000V w/ autorange 4000M/400M/40M/4M
Resolution	1000M Ω /250V, 1K Ω to 10 M Ω 2000M Ω /500V, 1K Ω to 10 M Ω 4000M Ω /1000V, 1K Ω to 10M Ω
Accuracy	3%rdg+5Count (under 1G Ω ) 5%rdg+5Count (under 4G Ω )
Nominal Current	>1mA
