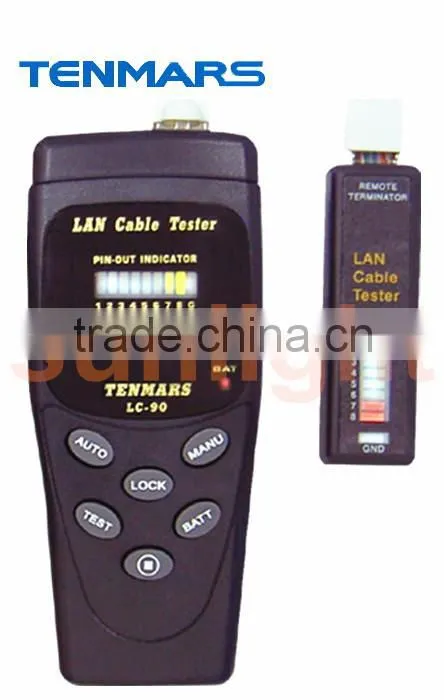

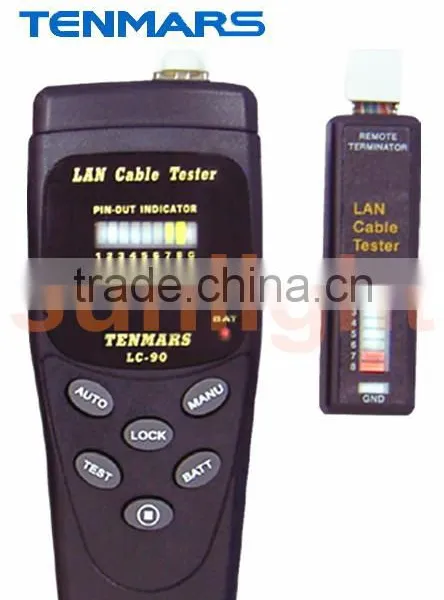

LC-90 Lan Cable Tester
Description:
- LCD display.
- Test pin configuration for 10/100 base-T cable, 10 base-2 cable, RJ45/RJ11 modular cables, AT and T 258 A cable, EIA/TIA 568A/568B cables and Token Ring Cables etc.
- Verify cable continuity, opens, shorts and miss-wired.
- Auto and manual scan function.
- Ground wire test.
- Locked status wire function.
- Detected defective wire warning (buzzer).
- Function Keys: ON/OFF, Test, Auto, Lock, Manual.
- Low battery indication.
Application:
Test Pin Configuration for 10/100 Base-T Cable
10 Base-2 cable, RJ45/RJ11 modular cables
Verify cable continuity, open, short and miss wired
Auto and Manual Scan
Ground Wire Test
Specification:
Display |
LED |
Connectors |
RJ45 (8P8C) input/output |
Power Supply |
9 volt 006P battery |
Remote Terminators |
Sequence Number#1 |
Cable Types |
Unshielded Twisted Pair (UTP100, CAT III, IV,V |
Foil-screened Twisted Pair (FTP100 and 120, CAT III, IV, V | |
Shielded Twisted Pair (STP150 IBM Type 1 and 6) | |
Recognize Wiring Schemes |
EIA/TIA-568A/B, USOC, 10(100) Base/HUB, BNC/10 Base-2 |
10(100) Base-T, Token ring | |
Dimensions (instrument) |
130mm (L) x 56mm (W) x 38mm (D) |
Dimensions (remote) |
72mm (L) x 23mm (W) x 24mm (D) |
Weight |
250g approx. |
Accessories |
User's manual, carrying case, 9 volt battery, and |
