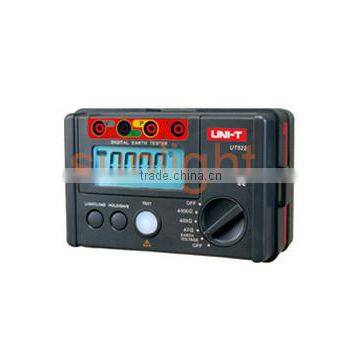

Earth Ground Resistance Tester, Datalogger, UT522

Name: Earth Ground Resistance Tester, Datalogger, UT522
Brand: UNI-T
SKU: 131400311
Availability: InStock

Shanghai Sunlight Electronic Technology Company Limited

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT522

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT522

Display Type Digital Only

Dimensions 160mm * 100mm * 70.5mm

Specification:

Specifications	Range	Best Accuracy
Model		UT522
Earth Resistance (Ω)	0~40Ω	±(2%+20)
	0~400Ω	±(2%+3)
	0~4000Ω	±(2%+3)
AC Earth Voltage (V)	0~400V	±(1%+6)
AC Earth Voltage (V)	Frequency:50Hz/60Hz	Yes
Features
Display Count		4000
Manual Range		Yes
Auto Power Off	Around 10 Minutes	Yes
Low Battery Indication		Yes
Data Hold		Yes
Data Logging		20
LCD Backlight		Yes
Full Icon Display		Yes
Double Insulation Protection		Yes
Contact Badness Display	Port C or Port E don't contact Display"----Ω"	Yes
Over-Range Display	Display “OL"	Yes
Simple 2-Wires Testing		Yes
Precision 3-Wires Testing		Yes
General Characteristic
Power	1.5V Alkaline Batteries(LR6)* 6
LCD Size	70.6mm * 34mm
Product Color	Red and Grey
Product Net Weight	560g
Product Size	160mm * 100mm * 70.5mm
Standard Accessories	Batteries, Carrying Bag, Test Lead, Simple Test Lead, Test Probe
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	8 PCs
Standard Carton Measurement	615mm * 530mm * 190mm(0.062 CBM Per Standard Carton)
Standard Carton Gross Weight	15 Kg

Contrast:

Specifications	Range	Best Accuracy
Model		UT521	UT522
Earth Resistance (Ω)	Ω~20Ω	±(2%+10)
	Ω~200Ω	±(2%+3)
	0~2000Ω	±(2%+3)
	0~40Ω		±(2%+20)
	0~400Ω		±(2%+3)
	0~4000Ω		±(2%+3)
AC Earth Voltage (V)	0~200V	±(1%+4)
	0~400V		±(1%+6)
	Frequency:50Hz/60Hz	Yes	Yes
Features
Display Count		2000	4000
Manual Range		Yes	Yes
Auto Power Off	Around 10 Minutes	Yes	Yes
Low Battery Indication		Yes	Yes
Data Hold		Yes	Yes
Data Logging		20	20
LCD Backlight		Yes	Yes
Full Icon Display		Yes	Yes
Double Insulation Protection		Yes	Yes
Contact Badness Display	Port C or Port E don't contact Display"----Ω"	Yes	Yes
Over-Range Display	Display “OL"	Yes	Yes
Simple 2-Wires Testing		Yes	Yes
Precision 3-Wires Testing		Yes	Yes
General Characteristic
Power	1.5V Alkaline Batteries(LR6)* 6
LCD Size	70.6mm * 34mm
Product Color	Red and Grey
Product Net Weight	560g
Product Size	160mm * 100mm * 70.5mm
Standard Accessories	Batteries, Carrying Bag, Test Lead, Simple Test Lead, Test Probe
Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	8 PCs
Standard Carton Measurement	615mm * 530mm * 190mm(0.062 CBM Per Standard Carton)
Standard Carton Gross Weight	15 Kg
