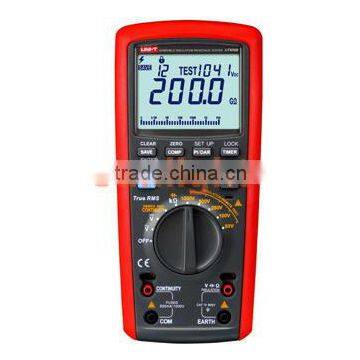

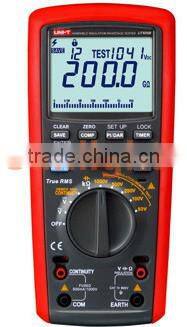

Handheld Insulation Resistance Tester, Multi-function, True RMS, Datalogger, UT505B
- 5000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
- Acrel AIM-M200 Medical Intelligent Insulation Monitoring Device For IT System ICU CCU With Alarm Output Hospital Isolation
- Acrel AIM-M200 Medical Intelligent Insulation Monitoring Device For IT System ICU CCU With Alarm Output Hospital Isolation
- Insulation Monitoring Device Acrel AIM-M200 Hospital Insulation Monitoring Device Accurate Insulation Resistance Monitoring
- Acrel AIM-M200 Hospital Insulation Monitoring Device Accurate Insulation Resistance Monitoring
- Acrel AIM-M200 Insulation Monitoring Device For IT System/Electric Insulation Monitoring Device
- hospital isolation transformer system insulation monitoring device
Product Details
Place of Origin: | Guangdong, China | Brand Name: | UNI-T | Model Number: | UT505B |
Display Type: | Digital Only | Dimensions: | 103mm * 225mm * 59 mm |
Product Description
Description:
UT505B is a kind of handled insulation resistance tester, which has the parameters such as insulation resistance, AC/DC voltage and etc. This machine has high accuracy and stable
Performance with wide range of function. It apply to maintain, test and check the transformers, electrical machines, cables, switch, electric appliances and the other electrical equipments as well as insulation resistance with insulation materials. UT505B is your ideal choice.
Features:
1,Show the actual value of insulation voltage 50V/100V/250V/500V/1000V;
2,Insulation resistance can be test to 200GΩ;
3,Measured absorptance / polarization index ,low -resistance test (100Ω);
4,Step voltage regulation , the function of remote detection test lead and comparison;
5,600V AC/DC voltage ,99 data loging;
6,Frequency(Hz) and Capacitance(F) test;
7,Safety level: CAT III 1000V CAT IV 600V;
8,Brand-new designed, portable and easy to control.
Specification:
Specifications | Range | Best Accuracy | |
Model | UT505B | ||
Insulation Resistance(Ω) | Test Voltage | 50V/100V/250V/500V/1000V | 0%~10% |
50V | 0.01MΩ~50.0MΩ | ±(3%+3) | |
50.0MΩ~1.0GΩ | ±(3%+3) | ||
1.0GΩ~10GΩ | ±(10%+3) | ||
100V | 0.01MΩ~100.0MΩ | ±(3%+3) | |
100.0MΩ~1.0GΩ | ±(3%+3) | ||
1.0GΩ~20GΩ | ±(10%+3) | ||
250V | 0.01MΩ~200.0MΩ | ±(1.5%+5) | |
200.0MΩ~1.0GΩ | ±(1.5%+5) | ||
1.0GΩ~50GΩ | ±(10%+3) | ||
500V | 0.01MΩ~500MΩ | ±(1.5%+5) | |
500MΩ~1.0GΩ | ±(1.5%+5) | ||
1.0GΩ~100GΩ | ±(10%+3) | ||
1000V | 0.1MΩ~2000MΩ | ±(1.5%+5) | |
2.0GΩ~9.9GΩ | ±(5%+3) | ||
10.0GΩ~20GΩ | ±(7%+3) | ||
20GΩ~200GΩ | ±(20%+3) | ||
Load Current | 50V(R=50KΩ) 1mA | 0%~10% | |
100V(R=100KΩ) 1mA | 0%~10% | ||
250V(R=250KΩ) 1mA | 0%~10% | ||
500V(R=500KΩ) 1mA | 0%~10% | ||
1000V(R=1MΩ) 1mA | 0%~10% | ||
Short Circuit Current | <2mA | ||
Leakage Current(A) | 10 ~ 2000 μA | ±(10%+3) | |
Low Resistance (Ω) | 0.01Ω~100Ω(about5.0V/>200mA/20mA Optional) | ±(1.5%+3) | |
General Resistance (Ω) | 0.01kΩ~1000KΩ | ±(3%+2) | |
DC Voltage (V) | 0.0V~600.0V | ±(2%+2) | |
AC Voltage (V) | 0.0V~600.0V | ±(2%+3) | |
Frequency(Hz) | 45Hz ~450 Hz | ±(0.1%+3) | |
Capacitance(F) | 100 pF ~10 μF | ±(5%+5) | |
Features | |||
Display Count | 6000 | ||
Auto Range | Yes | ||
True RMS | Yes | ||
Step Voltage | 10% Steps at 50% ~ 120% of range | Yes | |
DAR | 60s/15s and 60s/30s | Yes | |
PI | Yes | ||
Timer | Yes | ||
High Voltage Indication | Yes | ||
Auto Discharge | Yes | ||
Fuse Seltf Test | Yes | ||
Analogue Bar Graph | Yes | ||
Auto Power Off | Yes | ||
Continuity Buzzer | Yes | ||
Data Hold | Yes | ||
Data Storage | 99 | ||
Comparison | Yes | ||
LCD Backlight | Yes | ||
Low Battery Indication | Yes | ||
General Characteristic | |||
Power | 1.5V Batteries(LR6) × 6 | ||
LCD Size | 78mm × 59mm | ||
Product Color | Red and Grey | ||
Product Net Weight | 630g | ||
Product Size | 103mm × 225mm × 59 mm | ||
Standard Accessories | Test Lead, Probe, Alligator Clip, Batteries | ||
Standard Individual Packing | Carrying Bag, Gift Box, English Manual | ||
Standard Quantity Per Carton | 20 PCs | ||
Standard Carton Measurement | 515mm × 380mm × 385mm (0.075 CBM Per Standard Carton) | ||
Standard Carton Gross Weight | 20 Kg | ||
Optional Accessories | Remote Test Lead |
Contrast:
Specifications | Range | Best Accuracy | ||
Model | UT505A | UT505B | ||
Insulation Resistance(Ω) | Test Voltage | 50V/100V/250V/500V/1000V | 0%~10% | 0%~10% |
50V | 0.01MΩ~50.0MΩ | ±(3%+5) | ±(3%+3) | |
50.0MΩ~1.0GΩ | ±(3%+3) | |||
1.0GΩ~10GΩ | ±(10%+3) | |||
100V | 0.01MΩ~100.0MΩ | ±(3%+5) | ±(3%+3) | |
100.0MΩ~1.0GΩ | ±(3%+3) | |||
1.0GΩ~20GΩ | ±(10%+3) | |||
250V | 0.01MΩ~200.0MΩ | ±(1.5%+5) | ±(1.5%+5) | |
200.0MΩ~1.0GΩ | ±(1.5%+5) | |||
1.0GΩ~50GΩ | ±(10%+3) | |||
500V | 0.01MΩ~500MΩ | ±(1.5%+5) | ±(1.5%+5) | |
500MΩ~1.0GΩ | ±(1.5%+5) | |||
1.0GΩ~100GΩ | ±(10%+3) | |||
1000V | 0.1MΩ~2000MΩ | ±(1.5%+5) | ±(1.5%+5) | |
2.0GΩ~9.9GΩ | ±(10%+3) | ±(5%+3) | ||
10.0GΩ~20GΩ | ±(20%+10) | ±(7%+3) | ||
20GΩ~200GΩ | ±(20%+3) | |||
Load Current | 50V(R=50KΩ) 1mA | 0%~10% | 0%~10% | |
100V(R=100KΩ) 1mA | 0%~10% | 0%~10% | ||
250V(R=250KΩ) 1mA | 0%~10% | 0%~10% | ||
500V(R=500KΩ) 1mA | 0%~10% | 0%~10% | ||
1000V(R=1MΩ) 1mA | 0%~10% | 0%~10% | ||
Short Circuit Current | <2mA | <2mA | ||
Leakage Current(A) | 10 ~ 2000 μA | ±(10%+3) | ||
Low Resistance (Ω) | 0.01Ω~20.00KΩ(about 5.0V/>200mA) | ±(1.5%+3) | ||
0.01Ω~100Ω(about5.0V/>200mA/20mA Optional) | ±(1.5%+3) | |||
General Resistance (Ω) | 0.01kΩ~1000KΩ | ±(3%+2) | ||
DC Voltage (V) | 0.0V~600.0V | ±(2%+3) | ±(2%+2) | |
AC Voltage (V) | 0.0V~600.0V | ±(2%+3) | ±(2%+3) | |
Frequency(Hz) | 45Hz ~450 Hz | ±(0.1%+3) | ||
Capacitance(F) | 100 pF ~10 μF | ±(5%+5) | ||
Features | ||||
Display Count | 6000 | 6000 | ||
Auto Range | Yes | Yes | ||
True RMS | Yes | Yes | ||
Step Voltage | 10% Steps at 50% ~ 120% of range | Yes | Yes | |
DAR | 60s/15s and 60s/30s | Yes | Yes | |
PI | Yes | Yes | ||
Timer | Yes | Yes | ||
High Voltage Indication | Yes | Yes | ||
Auto Discharge | Yes | Yes | ||
Fuse Seltf Test | Yes | |||
Analogue Bar Graph | Yes | Yes | ||
Auto Power Off | Yes | Yes | ||
Continuity Buzzer | Yes | Yes | ||
Data Hold | Yes | Yes | ||
Data Storage | 99 | 99 | ||
Comparison | Yes | Yes | ||
LCD Backlight | Yes | Yes | ||
Low Battery Indication | Yes | Yes | ||
General Characteristic | ||||
Power | 1.5V Batteries(LR6) × 6 | |||
LCD Size | 78mm × 59mm | |||
Product Color | Red and Grey | |||
Product Net Weight | 630g | |||
Product Size | 103mm × 225mm × 59 mm | |||
Standard Accessories | Test Lead, Probe, Alligator Clip, Batteries | |||
Standard Individual Packing | Carrying Bag, Gift Box, English Manual | |||
Standard Quantity Per Carton | 20 PCs | |||
Standard Carton Measurement | 515mm × 380mm × 385mm (0.075 CBM Per Standard Carton) | |||
Standard Carton Gross Weight | 20 Kg | |||
Optional Accessories | Remote Test Lead |
Accessories:
Test Lead,
Probe,
Alligator Clip,
Batteries
