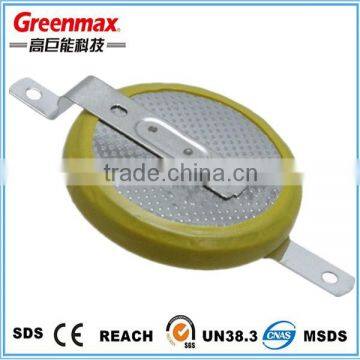

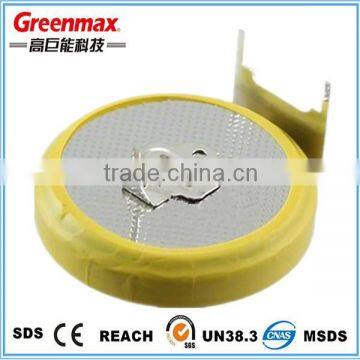

CR1632 Batteries Coin Cell
Specifications:
1. Voltage: 3V
2. Capacitor 120mAh
3. Current recommended: 0.1mA
4. Current recommended (interrupt): 5mA
5. Diameter 16mm High: 3.2mm
7. High capacitor, low self-discharge current, discharges stability during work.
8. Battery of environmental protection.
Performance And Test Conditions
- Unless otherwise stated, all the testing is carried out under the condition
- Environmental temperature: 20°c-25°c
- Environmental humidity: 65±20%
Suggestions And Cautions
1. Install batteries correctly.
2. Ensure the contact points to be clean and conductive.
3. Do not mix different types, different brands batteries to serve together.
4. Do not heat, recharge the batteries.
5. Do not dispose of the batteries in fire.
6. Keep away from the small children, if swallow promptly see doctor.
7. Pay attention to the producing date.
Item No. | Voltage (v) | Capacity (mAh) | Size Dia*H (mm) | Weight (g) | Recommended Continuous Drain(mA) | Recommended Pulse Drain(mA) |
CR927 | 0.3 | 30 | 9.7*2.7 | 0.60 | 0.5 | 5 |
CR1216 | 3.0 | 25 | 12.5*2.0 | 0.90 | 1 | 5 |
CR1220 | 3.0 | 40 | 12.5*2.5 | 1.00 | 2 | 5 |
CR1225 | 3.0 | 50 | 12.5*2.5 | 1.20 | 2 | 5 |
CR1616 | 3.0 | 50 | 16.0*1.6 | 1.60 | 2 | 10 |
CR1620 | 3.0 | 70 | 16.2*2.0 | 1.30 | 2 | 10 |
CR1632 | 3.0 | 120 | 163*3.2 | 1.80 | 2 | 15 |
CR2016 | 3.0 | 75 | 20*1.6 | 2.4 | 2 | 15 |
CR2025 | 3.0 | 150 | 20*2.5 | 2.4 | 2 | 15 |
CR2032 | 3.0 | 230 | 20*3.2 | 3.0 | 3 | 15 |
CR2320 | 3.0 | 150 | 23*2.0 | 3.0 | 3 | 20 |
CR2325 | 3.0 | 190 | 23*2.5 | 3.5 | 3 | 20 |
CR2330 | 3.0 | 260 | 23*3.0 | 4.0 | 3 | 20 |
CR2430 | 3.0 | 285 | 24.5*3.0 | 4.5 | 3 | 10 |
CR2450 | 3.0 | 550 | 24.5*5.0 | 6.2 | 3 | 30 |
CR2477 | 3.0 | 800 | 24.5*7.7 | 7.0 | 3 | 20 |
1. Long Life Ultra Alkaline Battery (LR20,LR14,LR6,LR03,23A,27A).
2. High Power Extra Heavy Duty Battery (6LR61,R20P,6F22,R14P,R6P,R03P).
3. Environmental friendly Ni-MH rechargeable battery (AA,AAA,D,C ,9V).
4. CR and AG series button cells.
5. Charger for AA/AAA/D/C/9V batteries.
6. Power Banks.
Applications:
Watch, Clock, Electronical toys, LED lights, Calculator, Laser pointers, Photographic equipments, Torches, Remote controlsand so on.

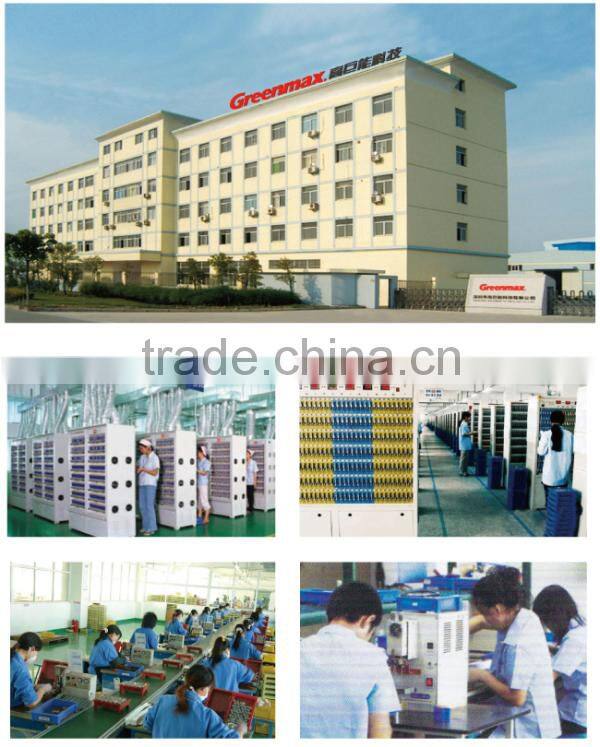

Welcome to Shenzhen Greenmax Technology CO., Ltd, which was located in technology and economy developed city—Shenzhen. We specialized in the researching, manufacturing, marketing and technical service of Dry Battery.
Our product lines which mainly include Alkaline Battery, Heavy Duty Battery, Recharge Battery and Button Cell Battery,…and our quality meets MSDS, CE, 2006/66/EC, UN38.3, CNAS and R.E.A.C.H. standard and the price is quite competitive compare with other suppliers in China. Greenmax also has established good partnerships with abroad enterprises on OEM/ODM projects, so we can help you to expand your market. Welcome to take samples to test, the samples are free; you just need pay the forwarder, more details please contact us in time.

1.Campared with other manufactures,what’s the advantage of your products?
First of all,the date of our products are authentic and effective.besides that,we have a professional factory ,therefore the delivery is rapid.
2.What kinds of battery will you provide?
Our product lines which mainly include Alkaline Battery,Button Cell Battery,Heavy Duty Battery and Recharge Battery.
If you want to know more about us,please contact us
3.Where can we use the batteries?
Our batteries can be widely used in camera, electric toys, LED light, E-fan, clock, remote controller, Walkman, wireless mouse and keyboard and etc.
4.Does your betteries meet the quality standards?
Yes, our battery not only can meet CE and UN38.8, but also SGSUN38.3; CNAS; R.E.A.C.H.and etc.
5.Can we change the specifications of the battery?
Yes,the specifications can be customer-made according to your requirement.
6.Can you print my picture or logo on the battery?
Yes, OEM is available, we can print your picture or logo on the battery.
7.What’s your hot sell?
Our batteries are sell well all around the world, such as dry batteries, carbon-zinc batteries, alkaline batteries, super heavy duty batteries, AAA batteries, AA batteries and 9V batteries and etc.
Kindly Reminder:
1. Do not put fire and tried to open it.
2. Do not mix of the old cells or other types of batteries.
3. When connecting a battery to a charger, ensure correct polarity.
4. Store batteries in a cool dry place; always discharge batteries before bulk storage or shipment.
5.If find Abnormal and problems, please stop its use.
6. Because of the electrochemical cell system, battery in long-term storage conditions, suggestions will take 90% to 100% of the battery power.
