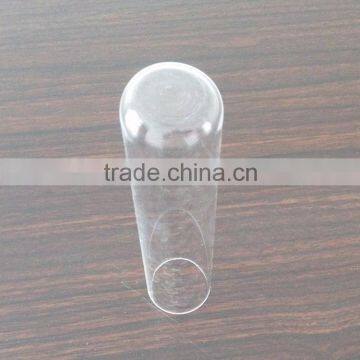

Quartz Tube Shape and Clear Quartz Heater Pipe Type Quartz Tube Small Diameter Fine Quartz Glass Capillary Tube
US$ 1 - 8
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Liaison Quartz
Type:
Clear Quartz Pipe
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai Tsingtao lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Crystal Quartz Glass Tube With High Purity for Heating or Lighting ApplicationUS$ 1 - 8MOQ: 500 Pieces -
Hot Sale Large Diameter Opaque Quartz Tube for Heating ApplicationUS$ 0.5 - 8MOQ: 100 Pieces
-
Opaque Quartz Tube for Heating Purpose From Liaison QuartzUS$ 0.5 - 8MOQ: 100 Pieces
-
Transparent Fused Quartz Glass Tube From Liaison QuartzUS$ 0.5 - 8MOQ: 100 Pieces
-
Clear Fused Short Length Quartz Tube With High PurityUS$ 0.5 - 8MOQ: 100 Pieces
Place of Origin
Jiangsu, China
Brand Name
Liaison Quartz
Type
Clear Quartz Pipe
Color
Goden,Clear
Surface Treatment
Polished
Shape
Twin Tube
Outside Diameter
2mm to 100mm
Ozone Content
High Ozone
Product Description
| Physical properties | |
| SiO2 : | 0.999 |
| Density : | 2.2(g/cm3) |
| Degree of hardness moh' scale : | 6.6 |
| Cofficient of expansion 25--300℃ ℃-1 ( ×10-6 ) | 0.58 |
| Melting point: | 1732°C |
| Working temperature : | Under 1100°C |
| Max temperature can reach in a short time : | 1450°C |
| Acid tolerance: | 30 times than Ceramics , 150 times than Stainless steel |
| Visible light transmittance : | above 93% |
| UV spectral region transmittance: | 0.8 |
| Resistance value : | 10000 times than ordinary glass |
| Annealing point: | 1180°C |
| softening point: | 1630°C |
| Strain point: | 1100°C |
| Dimension Tolerance(mm) | |||||
| Designation | OD | WT | Max. Siding | Max.Ovality | Max.Bow |
| 1-3mm | ±0.05 | ±0.05 | 0.05 | 0.05 | 1‰ |
| 3-10mm | ±0.1 | ±0.1 | 0.1 | 0.15 | 2‰ |
| 10-20mm | ±0.2 | ±0.1 | 0.1 | 0.2 | 2‰ |
| 20-30 | ±0.2 | ±0.15 | 0.15 | 0.2 | 2‰ |
| 30-40 | ±0.4 | ±0.15 | 0.2 | 0.2 | 2‰ |
| 40-50 | ±0.5 | ±0.2 | 0.25 | 0.25 | 2‰ |
| 50-65 | ±0.6 | ±0.2 | 0.35 | 0.25 | 2.5‰ |
| 65-85 | ±0.8 | ±0.3 | 0.45 | 0.3 | 2.5‰ |
| 85-100 | ±1 | ±0.3 | 0.5 | 0.5 | 2.5‰ |
| 100-150 | ±1.5 | ±0.4 | 0.5 | 0.8 | 3‰ |
| 150-200 | ±2 | ±0.6 | 0.6 | 1 | 4‰ |
| 200-300 | ±3 | ±0.8 | 0.7 | 2 | 5‰ |
| Spectral Transmission at 1.0mm Thickness | ||||||||
| nm | 220 | 255 | 280 | 315 | 350 | 380 | 590 | 780 |
| % | 89 | 91 | 93 | 93 | 93 | 93 | 93.2 | 93.4 |
| Chemical Composition, unit:PPM | ||||||||
| K+Na | Ca | Fe | Al | Mg | Ti | Ba | Li | Cu |
| <10 | <3 | <1.5 | <20 | <1.0 | <3.0 | <0.2 | <1.0 | <0.5 |
Packaging & Shipping

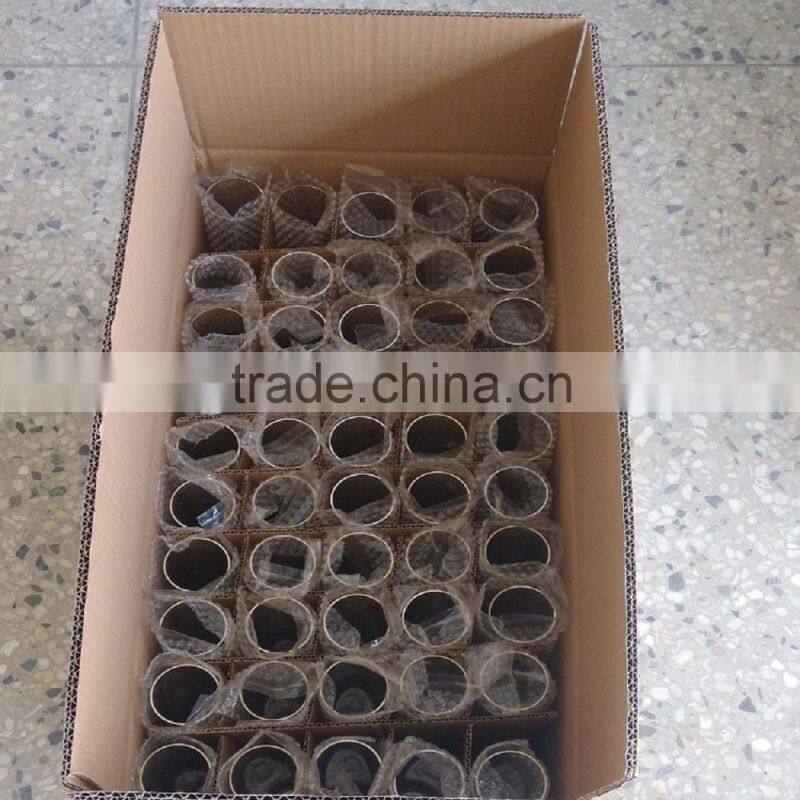

Packing method:
Each product with a bubble bag, and put into carton box, and then packed in wooden case, the quantity of product in each wooden case is decided by product size.
