MCB DZ47LE-63 2P LEAKAGE MINI CIRCUIT BREAKER

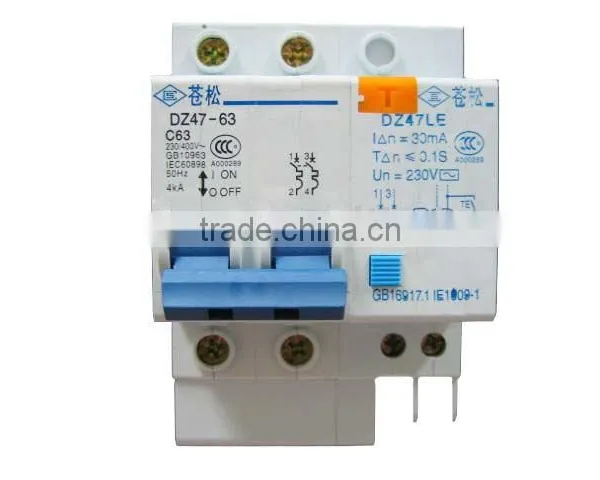

MCB DZ47LE-63 2P LEAKAGE MINI CIRCUIT BREAKER thumbnail-1

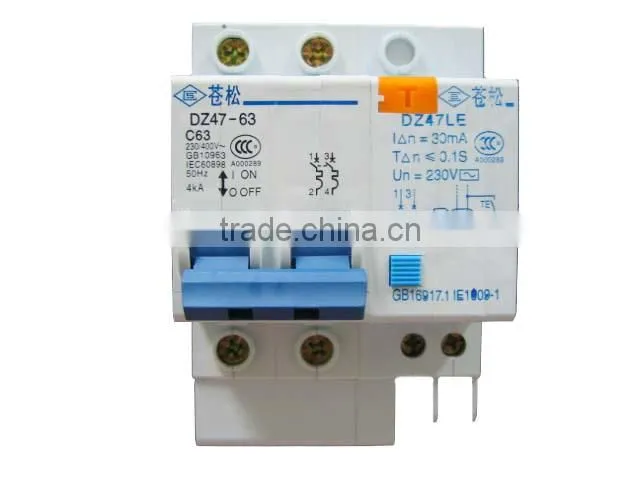

MCB DZ47LE-63 2P LEAKAGE MINI CIRCUIT BREAKER photo-1
US$ 1.2 - 5 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
cangsong
Model Number:
MCB DZ47LE-63 2P circuit breaker
Contact Supplier Request Quote Chat Now
Zhejiang Cangsong Electrical Appliances Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name cangsong
Model Number MCB DZ47LE-63 2P circuit breaker
Type Air
Poles Number 2

Specifications

MCB DZ47LE-63 2P LEAKAGE MINI CIRCUIT BREAKER

MCB DZ47LE-63 2P LEAKAGE MINI CIRCUIT BREAKER



1.Rated voltage:220/380V
2.Rated current:1~60A
3.Leakage current:30/100MA
4.Poles:1/2/3/4P
5.Standard:IEC60898/IEC60755





Application:



MCB DZ47LE/63 earth leakage circuit breaker is used for the protection against electrical leakage in the circuit of 50Hz or 60Hz, rated voltage single-phase 240V, 3 phase 415V, rated current up to 60A. when somebody gets an electric shock or the residual current od the circuit exceeds the fixed value, the ELCB can cut off the power within the time of 0.1s automatically protecting the personal safety and preventing the equipment from the fault resulted from the residual current. With this function, the ELCB can protect the circuit against overload and short circuit or can be used for the unfrequent switch over of the circuit under normal conditions. It conforms to IEC 60898&IEC60755





MCB SPECIFICATION:

Rated

Voltage(V)
Pole No

Rated current

(A)

Leakage

action

current(mA)

Leakage

dead

current(mA)

Leakage

action time(s)
220V
1P
1~10
30
15
<0.1
380V
2,3,4P
15~32
100
50
40~60
         a.TH35-7.5 rail is used for the product installation
         b. Outline and installation dimensions(see the figure and the table)
Type Dimensions
A B C D E
DZ47L-60/1N 46 70 40 45 94
DZ47L-60/2 64 70 40 45 94
DZ47L-60/3 91 70 40 45 94
DZ47L-60/3N 100 70 40 45 94
DZ47L-60/4 118 70 40 45 94







MCB MIN TECHNICAL DATA:

Single-pole

double line

Double-pole

double line

Triple-pole

triple line

Triple-pole

four line

Four-pole

four line

DZ47L

C45LS

1/2

DZ47L

C45LS

2/2

DZ47L

C45LS

3/3

DZ47L

C45LS

3/4

DZ47L

C45LS

4/4
