DMC WA22 Cable Crimp Type Connector YJQ-W1Q-BM2 Pneumatic Crimp Tool M22520/2-01 20-32AWG Used in Electronic Connectors

Name: DMC WA22 Cable Crimp Type Connector YJQ-W1Q-BM2 Pneumatic Crimp Tool M22520/2-01 20-32AWG Used in Electronic Connectors
Brand: Precisetool
SKU: 131350775
Availability: InStock

DMC WA22 Cable Crimp Type Connector YJQ-W1Q-BM2 Pneumatic Crimp Tool M22520/2-01 20-32AWG Used in Electronic Connectors thumbnail-1

DMC WA22 Cable Crimp Type Connector YJQ-W1Q-BM2 Pneumatic Crimp Tool M22520/2-01 20-32AWG Used in Electronic Connectors photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Precisetool

Model Number:

YJQ-W1Q-BM2

Contact Supplier Request Quote Chat Now

Jiaxing Jingrui Instrument&Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Precisetool

Model Number YJQ-W1Q-BM2

Type Other, Pneumatic crimp tool

Material Chrome Vanadium

Application Multi Functional

YJQ-W1Q-BM2 contains YJQ-W1Q crimp tool frame, BM-2 bench mount, Foot value, Pressure regulating valve and Air hose etc. which are supplied with the tool. (The positioner should be ordered separately)

GENERAL INFORMATION

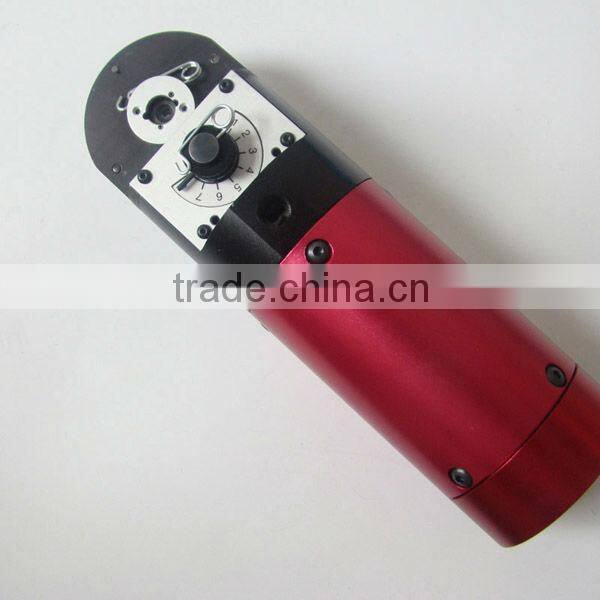

1. YJQ-W1Q is a pneumatic crimp tool which is compatible with the M22520/2-01, it is widely used for the crimping of wires and contacts in both military and proprietary programs.

2. Wire crimp range: 20AWG (0.52mm^2) to 32AWG (0.0316mm^2).

WORKING PRINCIPLES

1. Crimping Method

The crimping tool adopts curve propulsion mechanism, its applied force transfers through four curves in the head cavity of the right plier handle to the four indenters. The four intenders do the centripetal linear motion, which makes its front-end teeth crimp the contact to complete the crimping process. The cycle controlled precision ratchet assures the consistency of impression and the crimping quality of wires and contacts.

2. Crimping Range Adjustment

The crimping tool has eight selector numbers; the accurate data are listed as follows:

Selector NO.	Intender Working Diameter mm/INCH
Selector NO.	A GO	B NO GO
1	0.33/0.013	0.46/0.018
2	0.41/0.016	0.54/0.021
3	0.48/0.019	0.61/0.024
4	0.56/0.022	0.69/0.027
5	0.66/0.026	0.79/0.031
6	0.76/0.030	0.89/0.035
7	0.86/0.034	0.99/0.039
8	0.99/0.039	1.12/0.044

3. Gaging Instructions

“GO” Gaging: keep the tool in fully closed position, insert the green “GO” gage end into the indenter, it should be easy to enter, otherwise, the selector gear is incorrect.

(CAUTION! DO NOT CRIMP GAGE!)

“NO GO” Gaging: keep the tool in fully closed position, insert the red “NO GO” end into the indenter, it can’t pass through completely, otherwise, the selector gear is incorrect.

(CAUTION! DO NOT CRIMP GAGE!)

CRIMPING INSTRUCTIONS

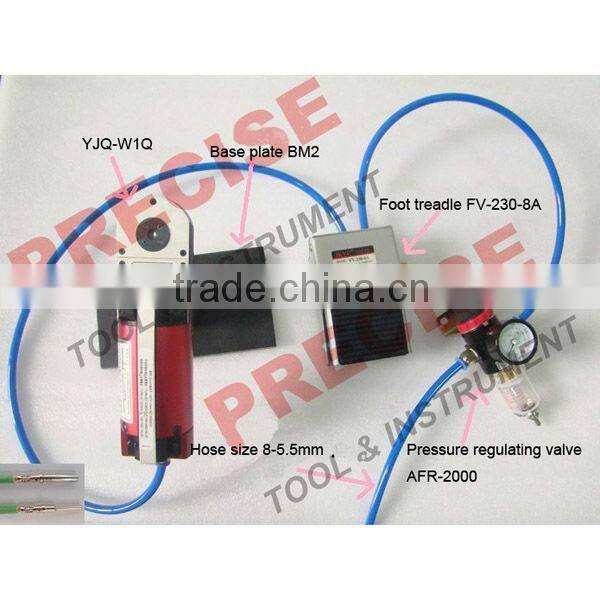

1. Connect the tool frame, base plate, pressure regulating valve and hose as the follow picture. (The units should be purchased separately besides the tool frame)

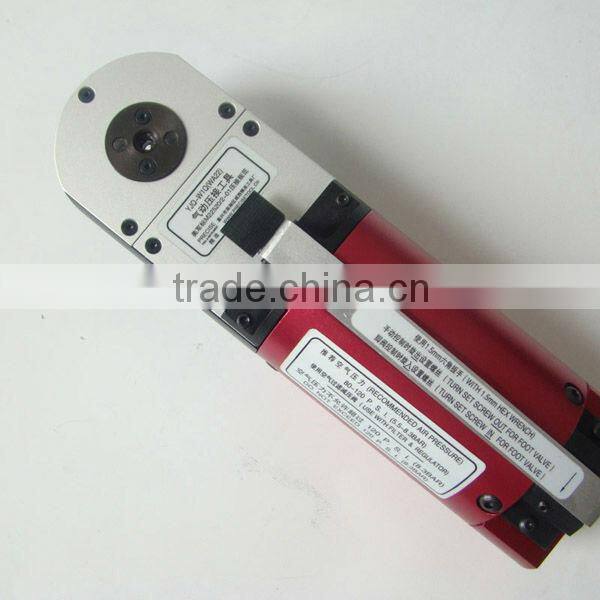

2. Working air pressure: 80-120 P.S.I.

Maximum pressure: 120 P.S.I.(5.5-8.3BAR)

It is suitable for all positioners which is matched with M22520/2-01 adjustable hand crimp tool.(The positioners should be purchased separately)

3. Insert the contact and prepare the wire through the indenter from the opposite side. Supply air for the tool frame by using foot treadle or hand switch. Loosen it after the crimping operation finished.

4. Remove the finished assembly and insert the next contact to be crimped.

CAUTIONS

Keep the crimping tool and other units clean and properly stored when not in use or no operator maintenance.
Don’t try to immerse tools in cleaning solution or spray oil into tools to lubricate.
If finding anomalies due to the incorrect ways, don’t attempt to disassemble tools or make repairs. Please stop using it and connect us as soon as possible, our company will offer complete refurbishing and recalibration services.
