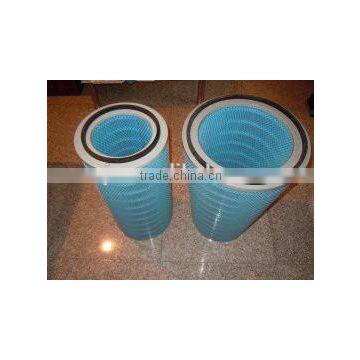

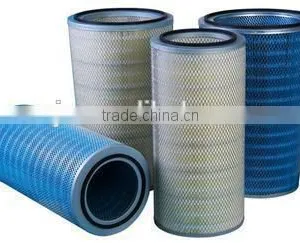

Help CenterAir Filter Cartridge For Gas Turbine
Related Products
-
Cellulose Air Filter Cartridge XD/Z SeriesNegotiableMOQ: 50 Pieces -
1% Off Hot Sale Qualified Steel Shot S390US$ 650 - 750MOQ: 20 Tons
-
High Quality Sand Blasting Cabinet Made by XDL BlastingUS$ 170,000 - 170,000MOQ: 1 Piece
-
High Pressure Wear Resistance Blasting Hose Made In ChinaUS$ 300 - 300MOQ: 1 Piece
-
SXH0816-8 Steel Structure Shot Blasting Machine - For Cleaning Beam, Pipes and Steel Structures Etc.US$ 46,800 - 46,800MOQ: 1 Piece
Specifications
A. Suitable pleat width design for easy to sell-cleanB. High filtration efficiency
C. Antistatic processing
1. Material: Complex fiber / Complex fiber + Glass Fiber Mixing Filtering Media
2. Products Features
2.1 Wide Pleat Design, large filtering air volume
2.2 Super-high filtering 99.99% @ 0.5 μm
2.3 Choose NANOWEB filtering material
2.4 Top open, bottom open /bottom cover, with bolts hole, rubber sealing, galvanizing antirust
metal structure
2.5 When high requirements, should adopt 3 stage filtering: 1st filtering by all weather canopy
or rough filtering cotton, 2nd filtering by filter cartridge and 3rd filtering by HEPA high effective
filtering.
3. Application
Gas turbine made by GE, SOLAR, SIEMENS, ALSTOM, MITSUBISH.
Model |
Top Cap OD |
Bottom Cap OD |
Top Cap ID |
Bolt Hole |
Height |
Filtering Area |
Filtering Precision |
Rated Volume |
Initial Resistance |
mm |
mm |
mm |
mm |
mm |
m2 |
μm |
m3/h |
Pa |
|
XD/Z3266 |
324 |
324 |
213 |
14 |
660 |
21 |
1 |
1200 |
120-150 |
|
XD/3275 Square Top Cap |
382×364 ×Φ324 |
324 |
213 |
/ |
750 |
24 |
1 |
1350 |
120-150 |
XD/Z403266 |
407 |
324 |
292 |
/ |
660 |
21 |
1 |
1200 |
110-145 |
XD/Z463566 |
460 |
352 |
345 |
/ |
660 |
23 |
1 |
1350 |
110-145 |
