Specifications

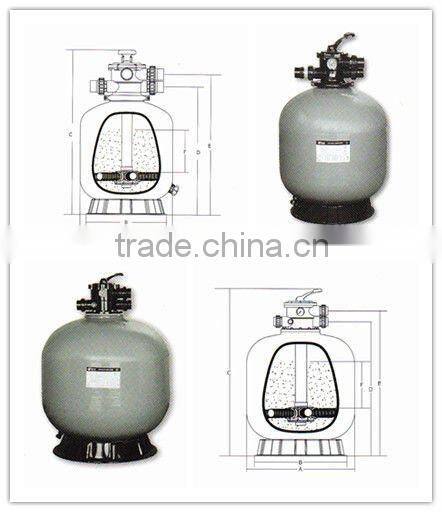

Modern V 700 Top Mount Swim Pool Sand Filter1.high quality
2.10 year guarantee
3.fiberglass made
Modern V 750 Top Mount Swim Pool Sand Filter
Functions
Maximum working pressure: 250kPa/ 36psi/ 2.5bar
Factory testing pressure: 400kPa/58psi/ 4.0bar
Size of silica sand: 0.5-0.8mm
Maximum filtration velocity: 50m3/h/m2
Maximum water temperature: 43 degree
Technical Characteristics
dia-350, 0.09 sq meter(filter area), 1.5’’/50mm(valve connections) 4.32 cbm/h(flow rate) 20kg(sand)
dia-400, 0.13 sq meter(filter area), 1.5’’/50mm(valve connections) 6.48 cbm/h(flow rate) 35kg(sand)
dia-450, 0.16 sq meter(filter area), 1.5’’/50mm(valve connections) 8.1 cbm/h(flow rate) 45kg(sand)
dia-500, 0.22 sq meter(filter area), 1.5’’/50mm(valve connections) 11.1 cbm/h(flow rate) 85kg(sand)
dia-650, 0.32 sq meter(filter area), 1.5’’/50mm(valve connections) 15.6 cbm/h(flow rate) 145kg(sand)
dia-700, 0.40 sq meter(filter area), 1.5’’/50mm(valve connections) 19.5 cbm/h(flow rate) 210kg(sand)
dia-700(B), 0.41 sq meter(filter area), 2’’/63mm(valve connections) 20.2cbm/h(flow rate) 215kg(sand)
dia-800, 0.50 sq meter(filter area), 2’’/63mm(valve connections) 24.9cbm/h(flow rate) 355kg(sand)
dia-700, 0.64 sq meter(filter area), 2.0’’/63mm(valve connections) 31.2 cbm/h(flow rate) 470kg(sand)
...........
dia-1000, 0.40 sq meter(filter area), 2’’/63mm(valve connections) 39.0 cbm/h(flow rate) 620kg(sand)
dia-1200, 0.40 sq meter(filter area), 2’’/63mm(valve connections) 51.6 cbm/h(flow rate) 860kg(sand)
Pictures

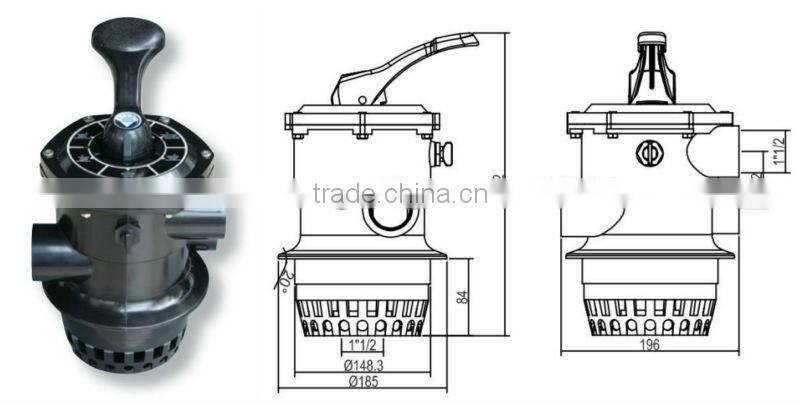

6-Way Multi-port Valve

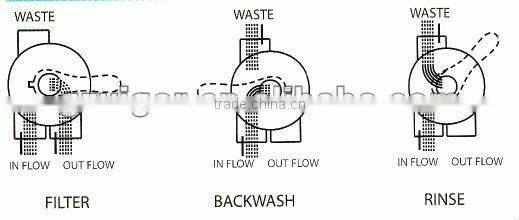

FUNCTIONS:
1. filter-normal filtration
2. backwash-cleaning filter by reversing the flow
3. rinse-used after backwash to flush dirt from valve
4. waste-by-passes filter, use for vacuuming to waste outlet or lowering water level
5. recirculate-by-passes filter for circulating water to pool
6. closed-shuts off all flow to filter or pool
