Vietnam Blasting Project XDL-1805-M1 Sandblasting Chamber

Specifications

Sandblasting Chamber
1 Clean engineering machinery
2 PLC auto control
3 Blasting Quality Sa2.5
4 Customer Design

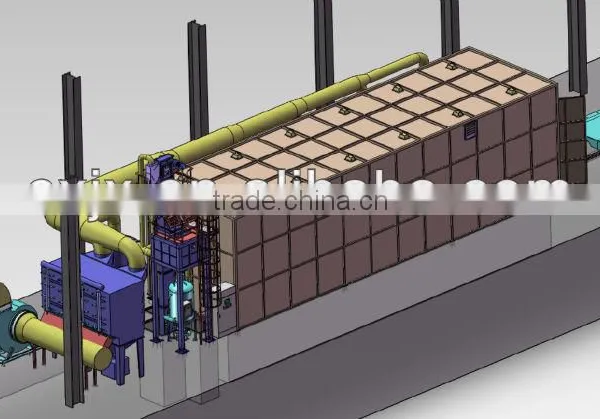

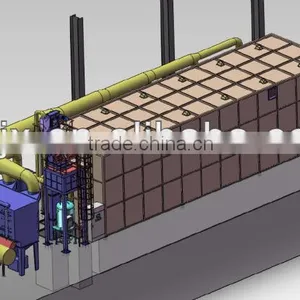

Sandblasting Chamber XDL-1805-M1

Special For Cleaning Steel Structures, Engineering Machinery, Trucks Etc

1 Features & Summary

• Blasting Chamber is mainly used for cleaning the surface of H beam, profiles, angle steel,pipes and steel structure etc.
• By shot blasting, rust and oxide coat will be removed away and you will get a qualified surface of Sa2.5 and certain roughness.
• This will intensify the steel, improve the antifatigue capacity, add the adhesion of paint film and finally improve the inner and outer quality of steel.

2. Technical Parameters

Electrical Power Voltage/Frequency	Motor	380V/50Hz
	Control	220V/50Hz
Size of Blasting Jobs	Max Size	15,000×2,000×3,000 mm
	Max Weight	2~3 tons
Blasting Booth	Door Open Size	5,000×4,500mm
	Booth Size  L × W × H	18,000×5,000×5,000mm
Blasting Productivity	Working Time / Day	8 hr.s
	Blasting Gun/ Φ10mm	2 units
	Blasting Area per day	15~35m2/hr×2×8hr.s =240~560m2
Surface Quality After Blasting  (Decided by Steel Shots/Grits)	Grade	Sa 2.5
	Roughness	50µm~75µm
Steel Shots/Grits	Size	1.0mm~1.2mm
	Initial Input	4,000~5,000 kg
Abrasive Recycle Type	Auto-mechanic Shots Recycle System
Dust Removing System	Air volume	43000m3/hr
	Power	45kw
	Pulse Jet Dust Collector	LT4-64
	Dust Emission Density	80mg/m3
Noise Level	≤85dB
Illuminance	≥300Lux

More Sandblasting Room can be designed and manufactured according to clients special requirements.

• Our compay have been gained ISO9001:2008 AND ISO14001:2004 Internal Certificate
• We have special electrical control system and can test electric system and parts in various Voltage and Hertz worldwide . The test range is 0 - 600V, 45 - 500HZ. Passed the test, it can ensure the machine working normally under specific power at the User side.

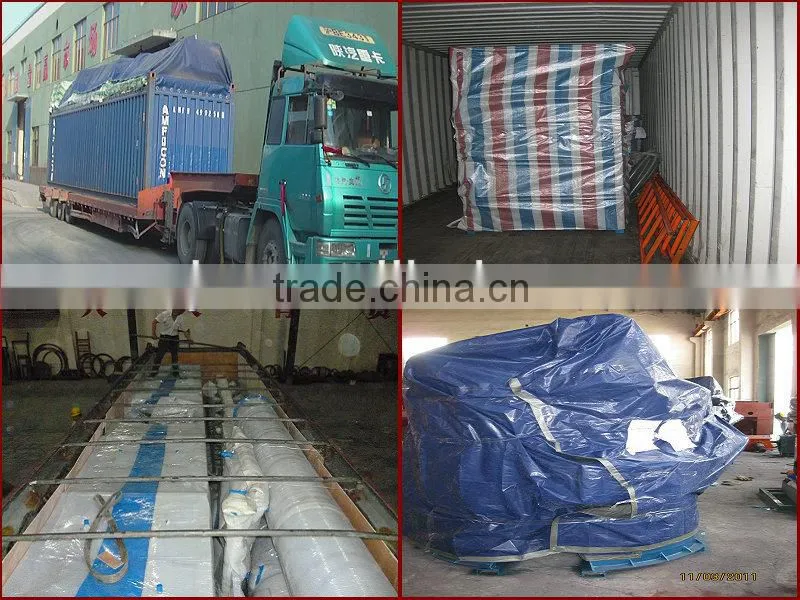

SANDBLASTING CHAMBER In Bulk and Motor, Gear Reduced Motor & Electrical Control Cabinet in Wooden Case

SANDBLASTING CHAMBER, SHOT BLASTING MACHINE ARE THE MAIN PRODUCTS IN DAFENG SANXING MACHINERY MANUFACTURING CO., LTD. OUR COMPANY PROVIDES SERVICE OF DESIGN AND MANUFACTUE SHOT BLASTING MACHINE, BLASTING ROOM AND PAINTING SPRAY BOOTH ACCORDING TO OUR CLIENT'S REQUIREMENTS. WE ALSO PROVIDES INSALLATION & COMMISSION SERVICE FOR CUSTOMERS.

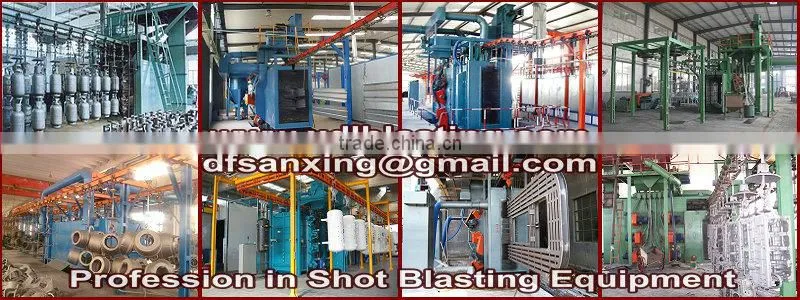

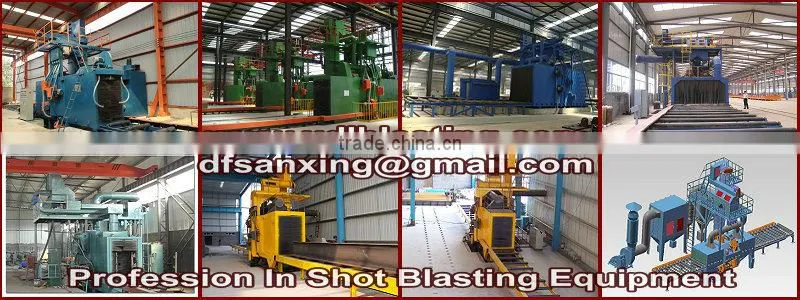

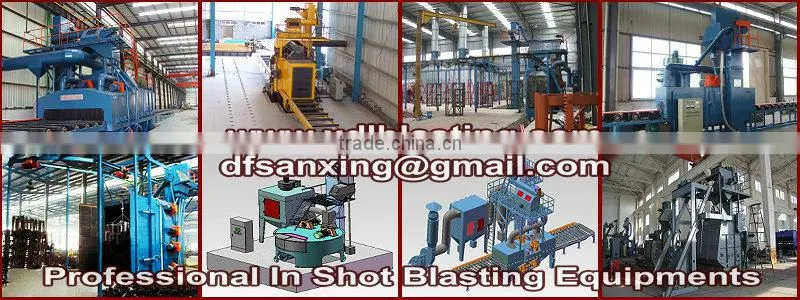

• Different Kinds of Shot Blasting Machine for all kinds of industry.

• Blasting Room, Manual Blasting System, Blasting & Painting Spray Room Equipments

• Steel Plate Shot Blasting Machine, Shot Blasting Painting Production Line

• Overhead conveyor (Suspened Chain Conveyor) Shot Blasting Machine

• Blasting Room Designed and Made by our company

• Steel Structure Shot Blasting Machine for cleaning beam, pipes and steel structure

Blasting Room, Shot Blasting Machine Expert - Dafeng City Sanxing Machinery Manufacturing Co., Ltd. was founded in 2002 by a highly experienced and academically qualified engineer. We are located in the large industrial cluster of shot blasting machines in China. After several years' development, we have become one of the largest providers of shot blasting machine, blasting room and paint spray booth in China. Since the foundation, we have led the industry in China. For high quality, well design and competitive price, we establish distinguished relationships with our customers and enjoy a good reputation at home and abroad. At Sanxing, we understand that if we would not keep innovating and offer collective service of shot blasting, sand blasting and paint spray service to our customers, we would fail in the market. That is why we succeed in China and will succeed in overseas market. We warmly welcome all customers from all over the world to come to visit us and have successful cooperation. Please visit our company by QR.

Customer Visit

Guarantee and After Service

• One Year for shot blasting machine after acceptance from the clients.
• 24 hours technical support by email
• Calling or door to door service
