KPD railway low voltage transfer cart with platform table
Features:
1.very big starting force and strong overloading capacity
2..It has no strict requirement for the construction of the railway
3.No limit of running distance
4.Safe and convenient operation for there is no wire outside the car
5.Adjustable speed
Working principle:
This kind of Rail Transfer Heavy Load Mover is powered by battery in the cart. DC motor and gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on. kpx flat carts can be used both on the “S”and arc-shaped railways.
Model |
KPD-10 |
KPD-20 |
KPD-50 |
KPD-100 |
KPD-150 |
|
Rated Load(t) |
10 |
20 |
50 |
100 |
150 |
|
Table Size(mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
Height(H) |
450 |
550 |
650 |
850 |
1200 |
Wheel Base(mm) |
1200 |
2800 |
3200 |
4900 |
7000 |
|
Rail Inner Gauge(mm) |
1435 |
1435 |
1435 |
2000 |
2000 |
|
Wheel Diameter(mm) |
400 |
400 |
500 |
600 |
600 |
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
Running Speed(min) |
25 |
20 |
20 |
20 |
18 |
|
Motor Power(kw) |
2 |
2.5 |
5.5 |
11 |
15 |
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|

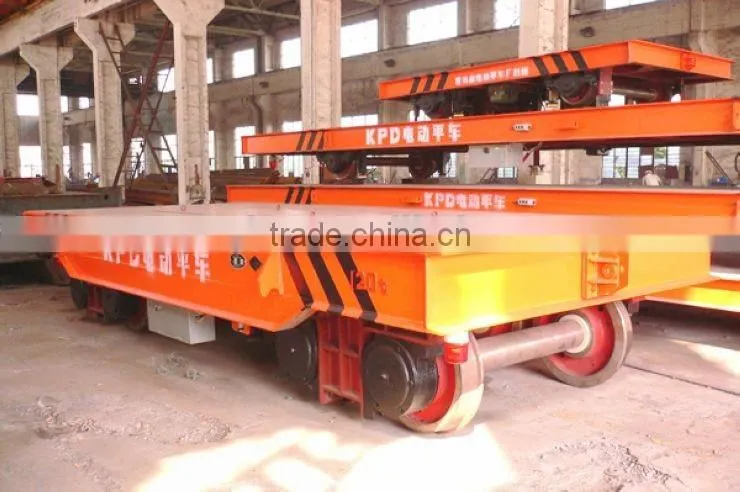

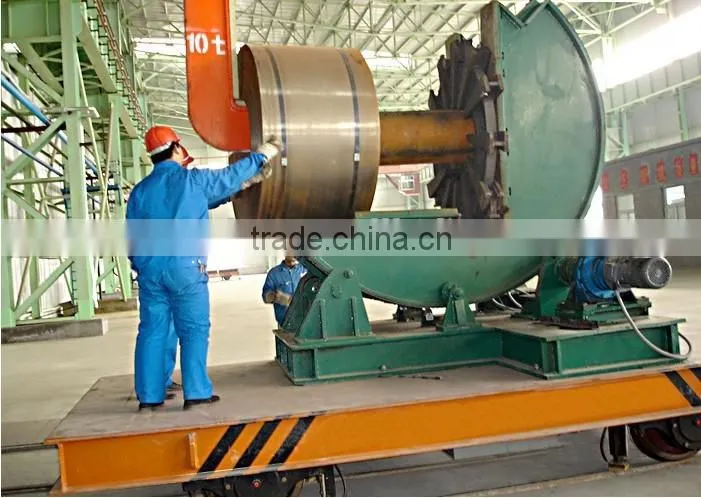

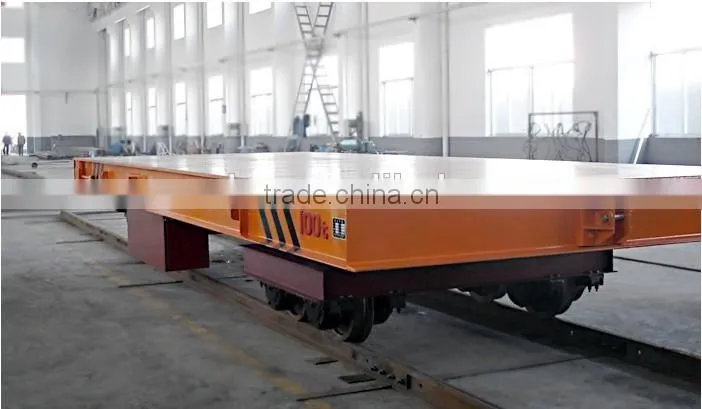

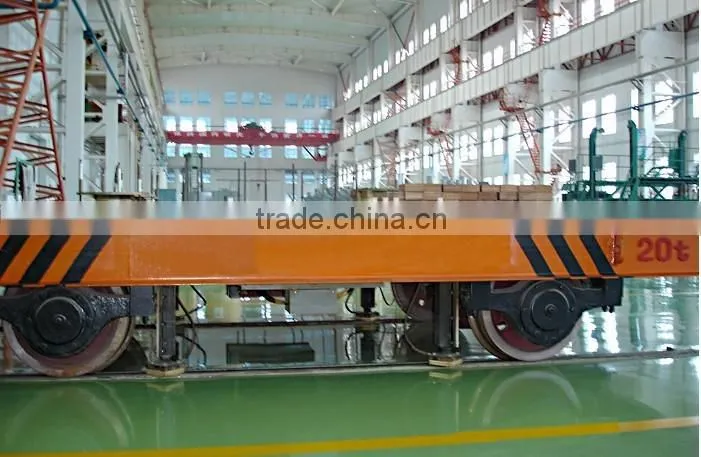

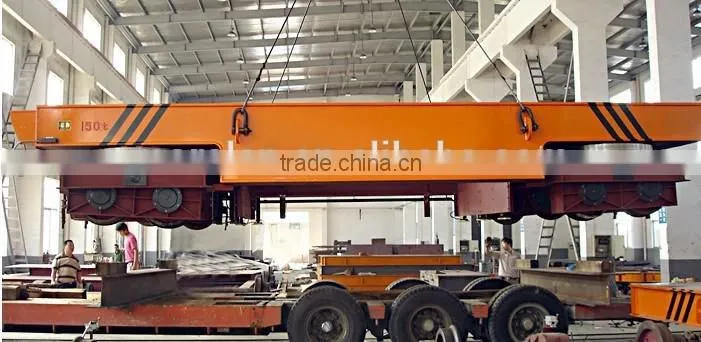

Photos:
Our service:
1. All the machines will be full tested before shipment
2. The total machine guarantee is 12 months
3. 24 Hours technical support, email, telephone or video online
