Jinan Moral International Business Co., Ltd.: Shandong, China; Main products: scissor lift, wheelchair lift, car lift, cargo lift, transfer cart

Home > Products > Railway trolley > Metal Industry Using Electric Flatbed Rail Trolley

Metal Industry Using Electric Flatbed Rail Trolley

FOB Price

US$ 8,000 - 10,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	MORAL
Model Number	KPD

Product Description

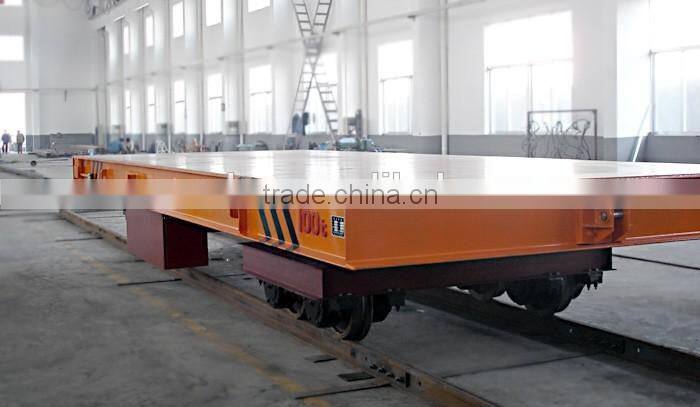

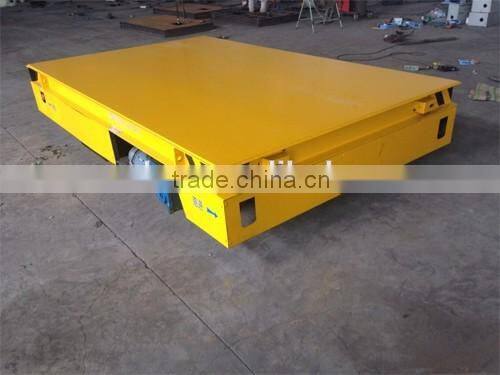

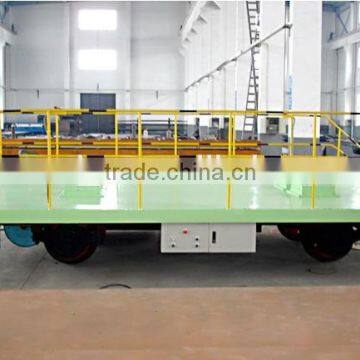

Metal industry using electric flatbed rail trolley

Features:

1.very big starting force and strong overloading capacity

2..It has no strict requirement for the construction of the railway

3.No limit of running distance

4.Safe and convenient operation for there is no wire outside the car

5.Adjustable speed

Working principle:

Battery Rail Transfer cart is powered by battery in the cart. DC motor and gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on..This carts can be used both on the “S”and arc-shaped railways.

Battery trolley supporting smart charger can charge unattended.Rail does not require insulation, easy construction and low cost.

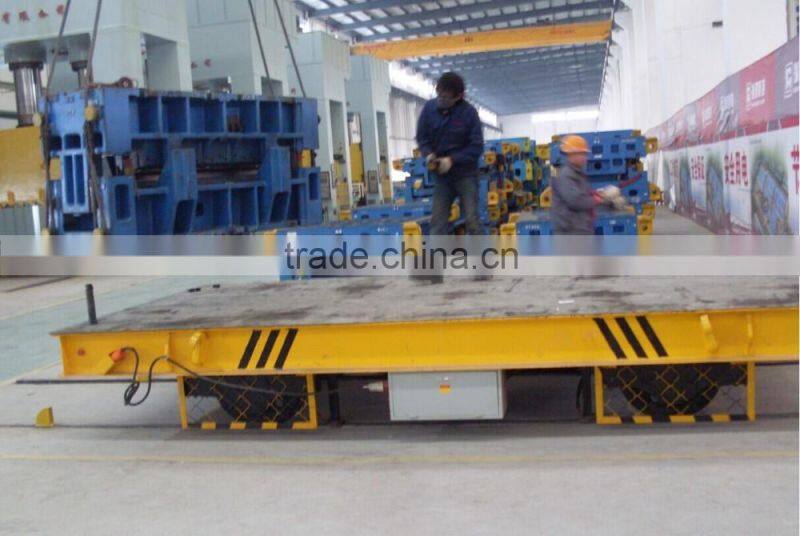

The Rail Transfer trolley is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc

Noted:If you have inquiry, pls let us know loading capacity?and platform size??thanks

Model		KPX-10	KPX-20	KPX-50	KPX-100	KPX-150
Rated Load(t)		10	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	850	1200
Rail Inner Gauge(mm)		1435	1435	1435	2000	2000
Wheel Diameter(mm)		400	400	500	600	600
Wheel Quantity		4	4	4	4	6
Ground Clearance(mm)		50	50	50	100	100
Running Speed(min)		25	20	20	20	18
Motor Power(kw)		2	2.5	5.5	11	15
Battery(v)		48	48	48	48	48
Recommended Rail Model		P15	P24	P
