BEFANBY Series Flat Car for Industrial Cargo Transprtation
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | MORAL | |
| Model Number | KPX |
Product Description

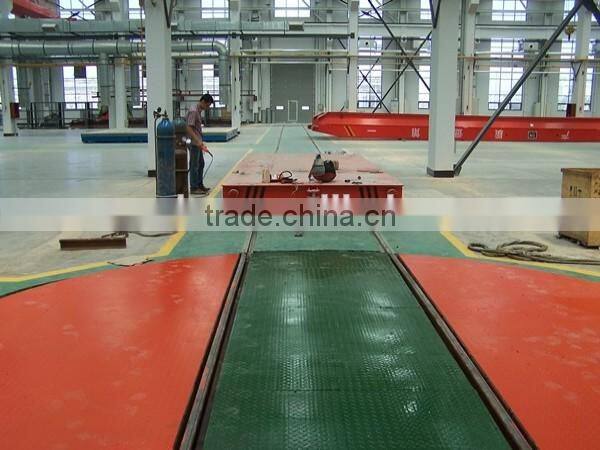

BEFANBY series flat car for industrial cargo transprtation
Features:
1.very big starting force and strong overloading capacity
2..It has no strict requirement for the construction of the railway
3.No limit of running distance
4.Safe and convenient operation for there is no wire outside the car
5.Adjustable speed
.
Working principle:
Battery Rail Transfer cart is powered by battery in the cart. DC motor and gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on..This carts can be used both on the “S”and arc-shaped railways.
Battery trolley supporting smart charger can charge unattended.Rail does not require insulation, easy construction and low cost.
The Rail Transfer trolley is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc
Noted:If you have inquiry, pls let us know loading capacity?and platform size??thanks

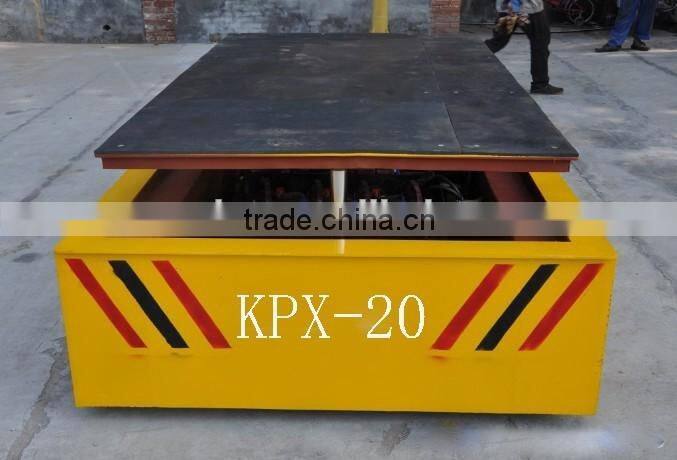

Model | KPX-10 | KPX-20 | KPX-50 | KPX-100 | KPX-150 | |
Rated Load(t) | 10 | 20 | 50 | 100 | 150 | |
Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
Height(H) | 450 | 550 | 650 | 850 | 1200 | |
Rail Inner Gauge(mm) | 1435 | 1435 | 1435 | 2000 | 2000 | |
Wheel Diameter(mm) | 400 | 400 | 500 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 6 | |
Ground Clearance(mm) | 50 | 50 | 50 | 100 | 100 | |
Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
Motor Power(kw) | 2 | 2.5 | 5.5 | 11 | 15 | |
Battery(v) | 48 | 48 | 48 | 48 | 48 | |
Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
