Family outdoor wireless access point

Specifications

1.Rated Voltage: 220-250V
2.Rated Current: 10A maximum
3.Plug: different plugs are match
4. Cable: PVC

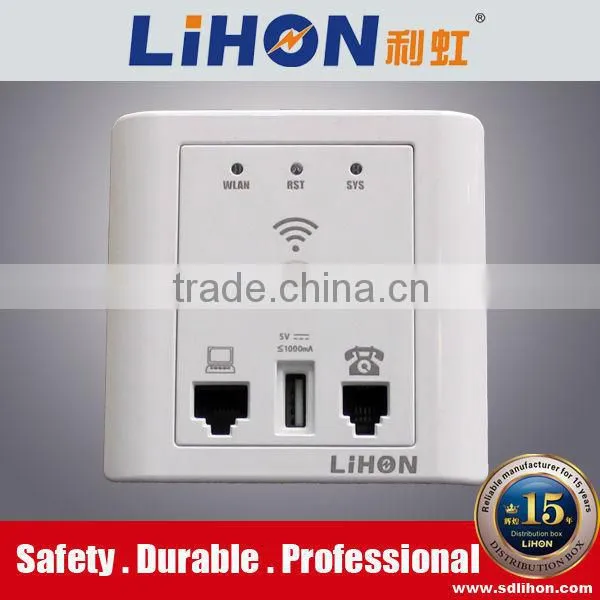

Family outdoor wireless access point



ITEM:LHAP-01



One-year guarantee offer!



 Function:

1.Wireless access points from the wired network signal into a Wi-Fi signal, speed up to 150Mbps,convenient for Laptop, Ipad,Table PC, Mobile phones and other wireless terminals



2. Have router function,can replace the router



3. Offer RJ11,RJ45 keystone jack can replace the telephone socket, computer socket and network socket



4.Provide USB power supply, can be used as tablet PC and mobile phone charger



5.Wall inside mounted,the singal cables and power cables will not exposed outside



6.Indicator shows the working status



7. Enhanced Performance





 Specifications:



Standard	IEEE802.11n,IEEE802.11g,IEEE802.11b
Operating Frequency	2.4GHz-2.483GHz
Modulation mode	OFDM:BPSK-6/9Mbps,QPSK-12/18Mbps,16-QAM-24Mbps,64-QAM-48/54Mbps DSSS:DBPSK-1Mbps,DQPSK-2Mbps,CCK-5.5/11Mbps MIMO-OFDM:MCS 0-15
Max Wireless Speed	150Mbps
Network port	LAN:1*10/100Mbps WAN:1*10/100Mbps
Wireless Parameters	Channel:1-13 Frequency   bandwidth:20 or 20/40MHz Wireless mode:11b/g/n
Wireless Security	"WPA-PSK","WPA2-PSK","WEP"
Power adjustment	Support
Manager function	WEB Management
LED Indication	WLAN wireless status indicator,SYS system indicator,LAN cable interface indicator
Push button switch	1* power on/off 1* Reset/Restore
size(mm)	60X60X36(mm)
Power	Input:100-240V~50/60Hz 0.2A
Max power consumption	lower than 3W
Reset/restore factory settings	Support
Working temperature	-10ºC ~ 45ºC
Storage temperature	-40ºC ~ 70ºC
Working Humidity	10%-90%RH(No condensation)
Storage temperature	10%-90%RH(No condensation)



 A

Application occasions

:



What It Does

LHAP-01 is a best-in-class 802.11n indoor access point designed specifically for business-class environments such as hotels, airports, coffee shops, shopping centers, sporting venues, and university campus. With transfer rates of up to 150 Mbps on the 2.4 GHz frequency band, the device provides an adequate level of service to all users who connect with legacy 802.11b/g adapters in addition to the latest 802.11n adapters for faster downloads and instant communication. Versatile and powerful, the W310A offers a built-in USB port that charges mobile devices such as a smart phone or an iPad via a USB cable. Integrated 802.3af Power over Ethernet (PoE) allows installation in areas where power outlets are not readily available.



Stylish Wall Mount Design

Coming with standard size of an electrical receptacle design and stylish appearance, it blends in with most interior decorations in an office or room. You can easily install it into an existing power outlet.



Enhanced Performance

Maximum wireless signal rates of up to 150 Mbps in the 2.4 GHz (IEEE 802.11n) wireless band coupled with 2 X 2 multiple-input, multiple-output (MIMO) to improve range and optimize data rates makes it an ideal access point for audio, video, and voice applications.



Powered USB

Featuring built-in USB port that charges mobile devices such as a smart phone or an iPad (5V 500mA) via a USB cable makes it ideal and popular in public areas like hotels and airport.



Easy & Effortless Deployment

The LHAP-01 is a best-in-class indoor access point designed specifically for indoor business-class environments where a single ordinary AP is not satisfactory due to solid and thick concrete walls and other possible obstacles in the room. With high data transmission speeds, it offers high-quality and reliable wireless service and whole-room coverage. Simply install one such AP in one room where wireless signal is expected and that is enough!



Unified Management

Provided management utility based on X86 allows network administrators to centrally manage IP addresses, SSID and security settings, etc of APs on LAN, thus enabling a highly manageable and extremely robust wireless network.



Power over Ethernet

The device has integrated 802.3af Power over Ethernet (PoE) for easy installation. So it can be installed in areas where power outlets are not readily available.
