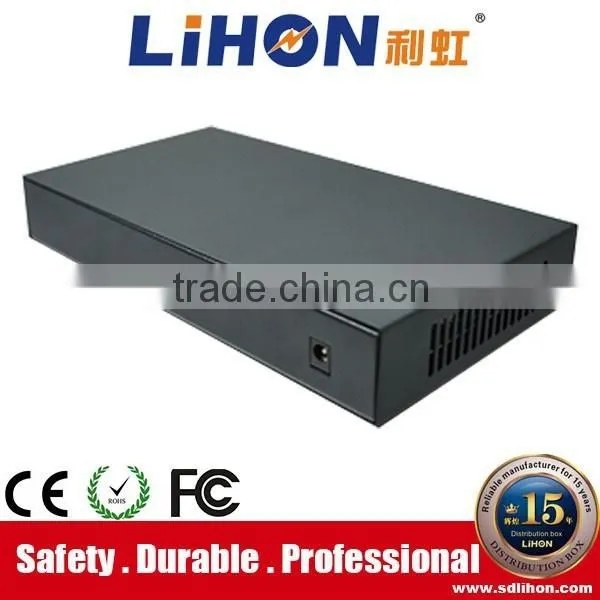

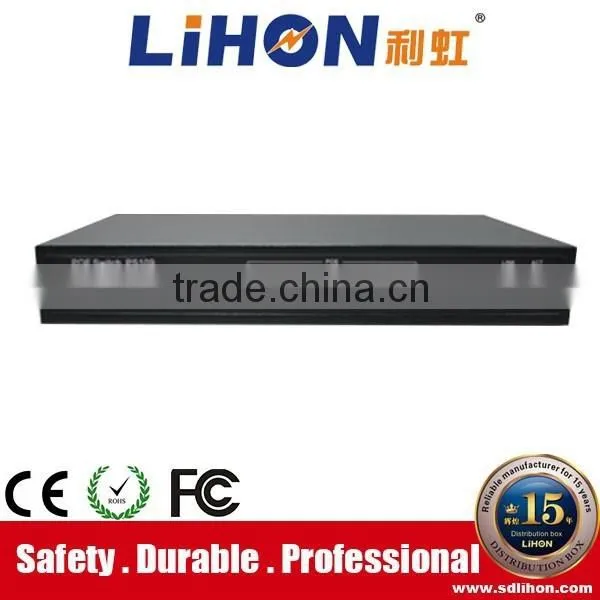

Best price 8 port power over ethernet switch POE switch

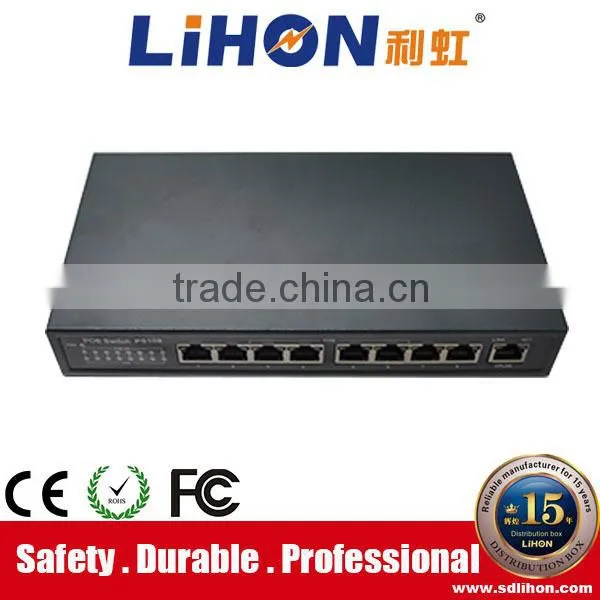

4 Port / 8 Port POE Switch
- 9 ports 10/100Mbps POE Switch (8POE), fully IEEE802.3af/at standard compliant ;
- single port power output : 15.4W ;
- 2.6G bandwidth (without blocking) ;
Main Features
1.Support through five kinds of Ethernet wireless access point (AP) power and network surveillance cameras.
2. Standard IEEE802.3af Power.
3. The transmission distance up to 100 meters.
4. zero-configuration features, power is automatically supplied to adaptive equipment.
Comprehensive, flexible power-over-Ethernet (POE).
The Power over Ethernet POE switches (POE) optimized the wireless access point (AP) VOIP phones and
IP-based surveillance cameras installed and power management.
Power over Ethernet (IEEE802.3af) for many new network devices reduces time and costs in the installation.
Use a standard CAT5 cable, your IP cameras and wireless AP can be liberated from the constraints of power line.
If you are using UPS power to your switch,all your POE device will receive uninterrupted supply of electricity.
Single output protection with auto-recovery feature:
The POE switches support Ethernet power supply single output automatic protection function.When detected single
output power exceeds the normal output power 20% of 15.4W , it will stop the power supply to this port
automatically to ensure the safety of the remote device, and other ports will work properly.
Stopped working 1-2 minute , the device will restore the power supply of the port automatically.
It would return to normal power supply if it do not find the power supply abnormality,.
Premium design high-quality devices to meet long-term stable operation requirement:
The POE switch using a lot of high-quality components, optimization of structural design,ensure it suitable work
in the small corridor room and wall-mounted Cabinet .

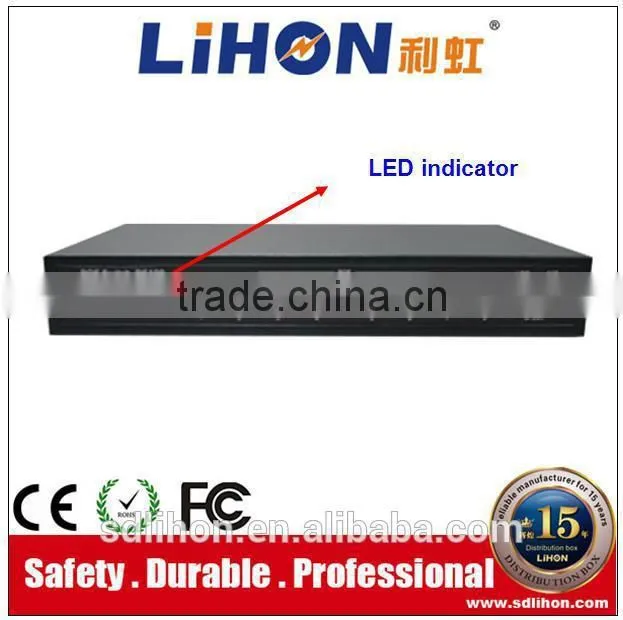

LED instructions provided, are more likely to judge running status:
The POE switch provides LED indicators for each port, can be very intuitive observed whether the access load for each
port ,show you the working status of load equipment, provide the POE power supply required information to user.
Main technical specifications of POE switch | |
Network Interface |
• 10/100Mbps automatic joint POE function RJ45 port (5/8 POE) • 10/100Mbps automatic joint 10/100Mbps RJ45 ports |
Transmission speed |
• 10 / 100Mbps full duplex, 10 or 100Mbps half duplex • Network Interface: 10BASE-T or 100BASE-TX Ethernet RJ-45 interface |
|
Performance Specifications |
•Broadband: 2.6Gbps (non-blocking) •Network latency (100 to 100Mbps): Up to 20 microseconds (use 64 direct packet size) • acket Buffer Memory: 96KB • Address database size: 1,024 MAC addresses •Frame filter rate: 10M port maximum 14,800 frames / sec 100M port maximum 148,800 frames / sec. •Frame transfer rate: 10M port maximum 14,800 frames / sec / 100M port maximum 148,800 frames / sec. |
|
Network protocols and standards-compliant |
• IEEE 802.3i 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3x Flow Control • IEEE 802.3ar Power over Ethernet |
Indicator LEDs |
• System: Power, POE maximum power • Each port speed, connection, POE activity, POE failure |
Power Support |
• Maximum POE power: Max 15.4W per port • DC48V (various countries have adopted specific power plug) |
|
Environmental Specifications |
• Operating temperature: 0 ° ~ 40 ℃ (32 ℃ ~ 104 ° F) • Operating Humidity: 10% to 90%, non-condensing |
|
Electromagnetic Compatibility
|
• CE class B • FCC Part 15, Class B • VCCI Class B • C-Tick |
Safety specifications |
• CE / LVD |
Certification |
• CE FCC ROHS |
Warranty |
•Whole year warranty |
Installation :
POE switches installed, follow these steps.
1. can be placed directly on the desktop.
2. check the power adapter carefully, and confirm that the AC power is connected.
3. ensure the switches placed in the cooling and ventilation space, please do not place heavy objects on the switch.

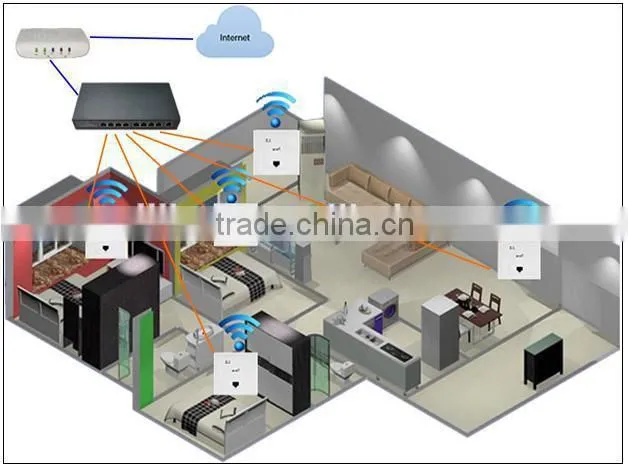

POE power supply schematic diagram
Power & Initialization:
Powered on, POE switch will automatically initialized, the LED indicator will appear the following conditions:
1. When the Powered on, the system will carry out a series of initialization.
2.Power supply LED indicator lights and held permanent status.
3. The other indicator is off.
4. If the initialization inconsistent with the above, check the power supply.
POE Switch LED indicator instructions
Power light |
Red on |
Normal |
POE light |
Green on |
Normal |
LINK light |
Yellow on |
Normal |

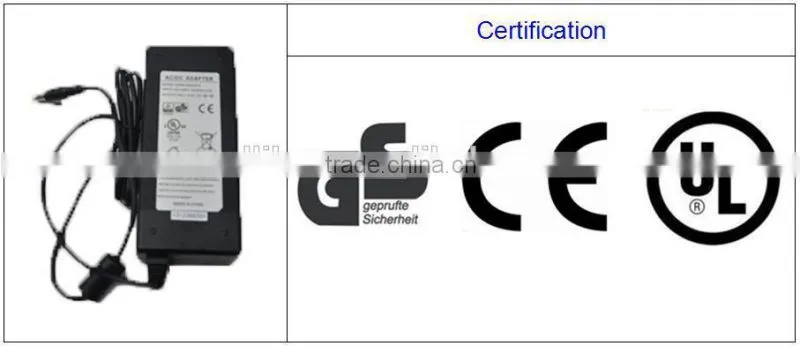

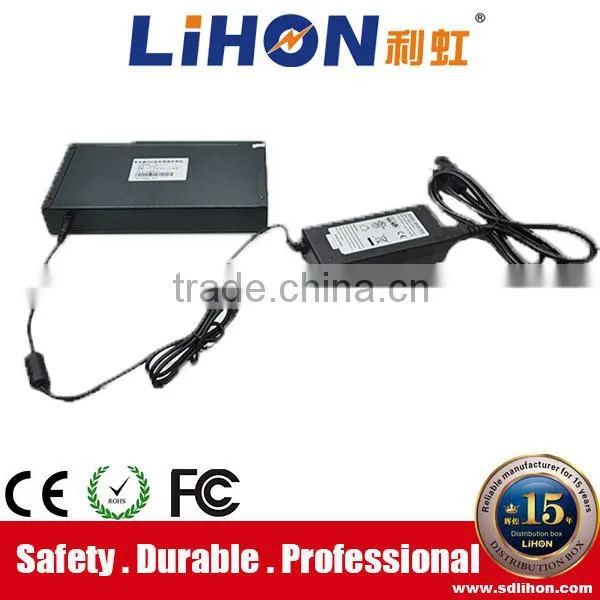

Power adapter
AC/DC Power adapter
AC/DC ADAPTER
MODEL : GM85-480200-F
INPUT:100-240V~50/60Hz 2.5A

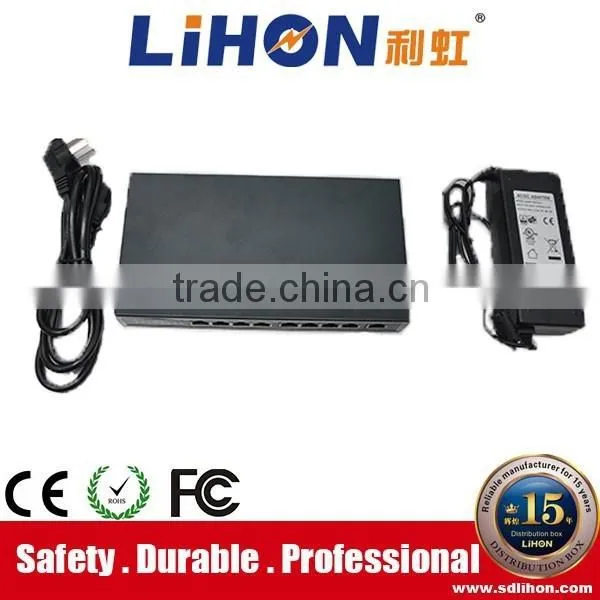

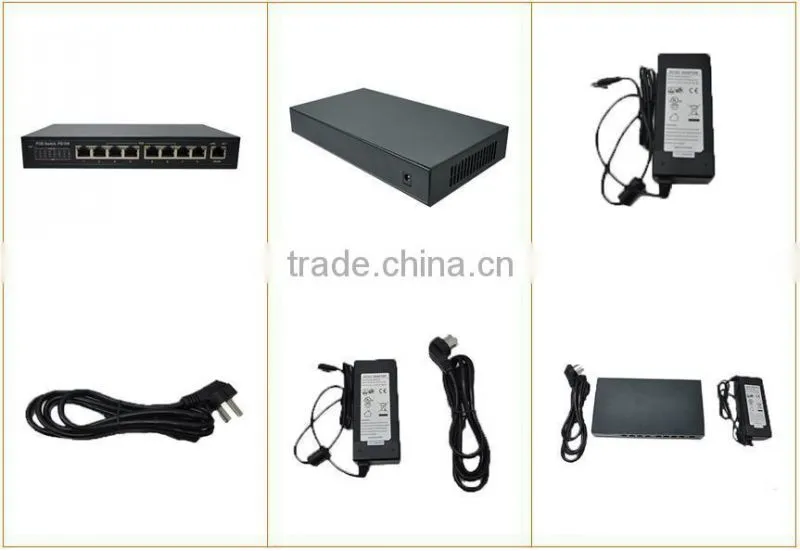

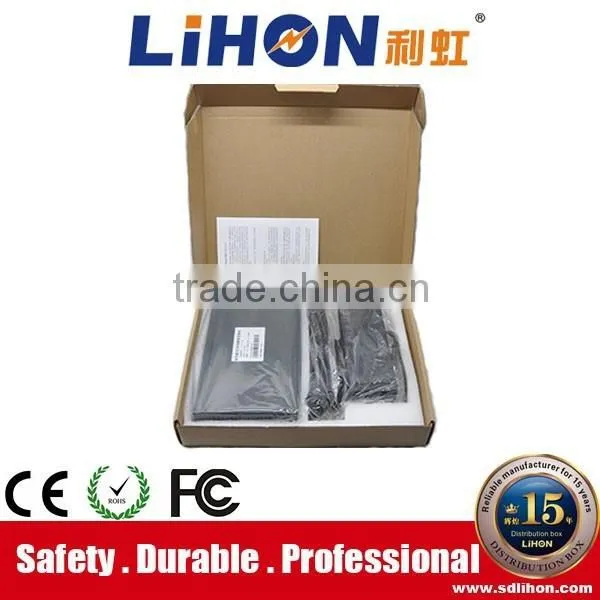

List of items:
Open the switch box carefully and check box should have the following accessories:
1. A POE switches.
2. A power supply line.
3.One power adapter.
4. A user manual.

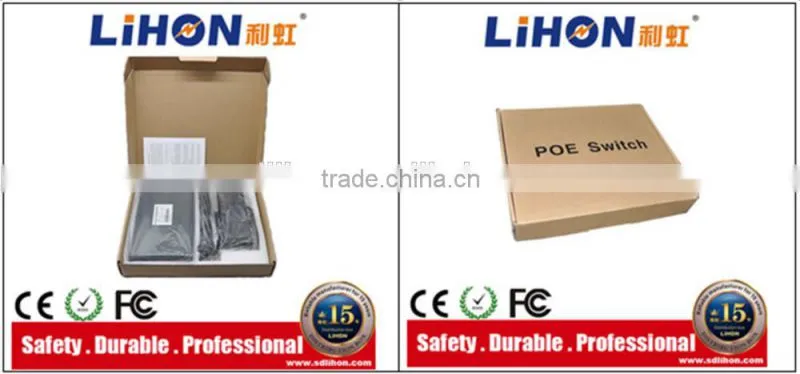

Packaging :
POE switch with the wireless AP , better results.
