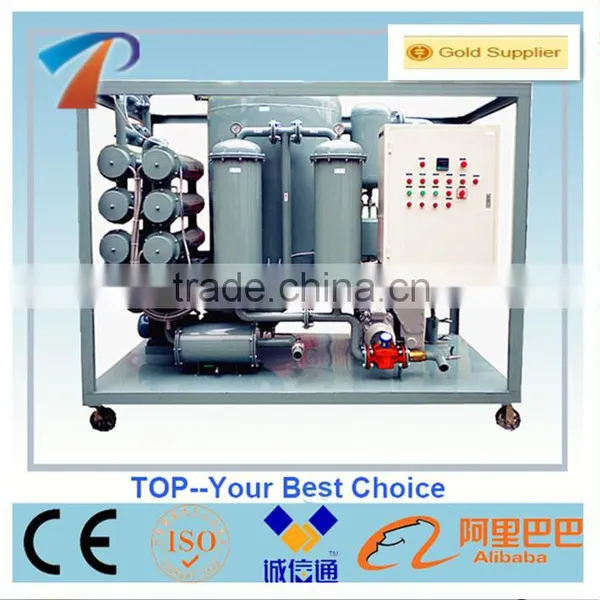

Help CenterTOP Series ZYD-I- 50 Double Stage Vacuum Transformer Oil Decolor/degas/dewater Machine,ISO& CE Remark,
Related Products
-
TOP DGA2010 Gas Chromatography, CE& ISO Mark,good Expandability,reliable Performance, Compact Design, Simple UseUS$ 5,000 - 50,000MOQ: 1 Set -
DGA2010 Gas Chromatography, CE& ISO Mark, Equipped With Large LCD Displayer,reliable Performance, Compact Design, Convenient UseUS$ 5,000 - 50,000MOQ: 1 Set
-
Model TP-150AS Acid Solution Density/ Baume Degree/Concentration Analyzer, Simple Operation,quick Read the Data,good QualityUS$ 5,000 - 50,000MOQ: 1 Set
-
Model TP-150AS Acid Solution Density/ Baume Degree/Concentration Tester, Simple Operation,quick Read the Data,good QualityUS$ 5,000 - 50,000MOQ: 1 Set
-
Dielectric Oil Oxidation Stability Teser Model TP622, Energy Conservation,eco-friendly,movable,CE& ISO RemarkUS$ 5,000 - 50,000MOQ: 1 Set

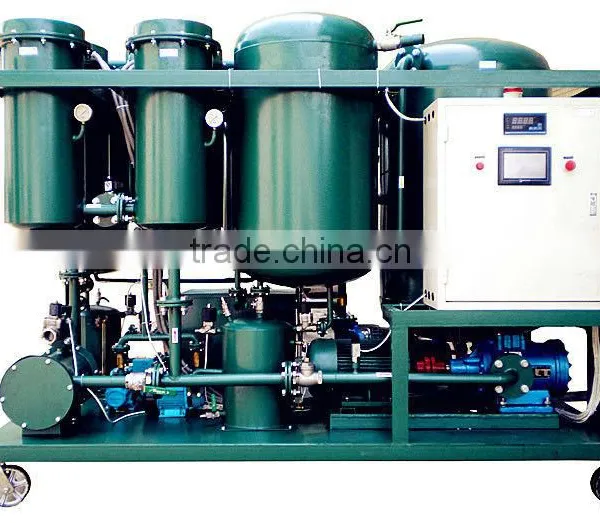

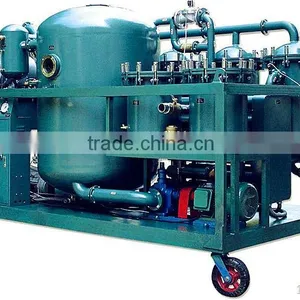

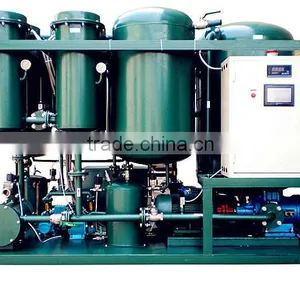

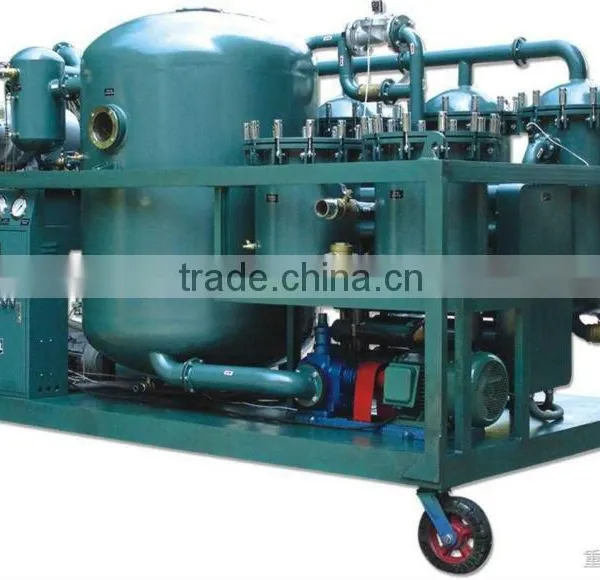

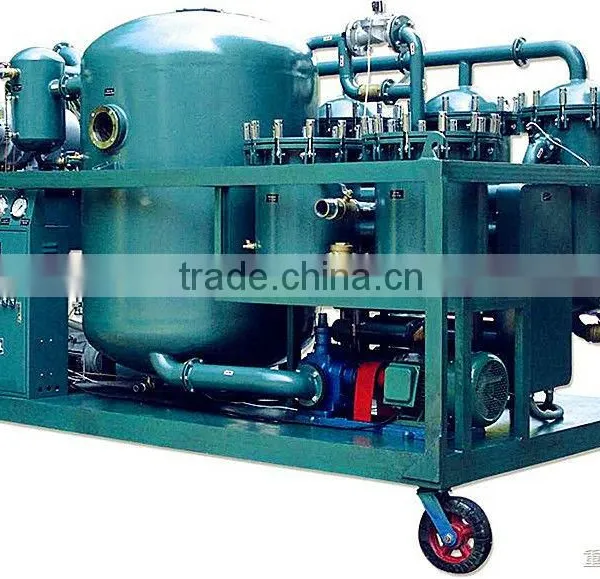

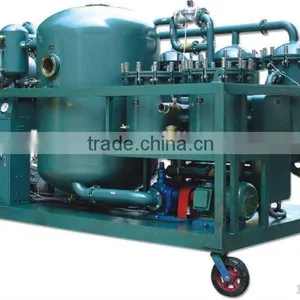

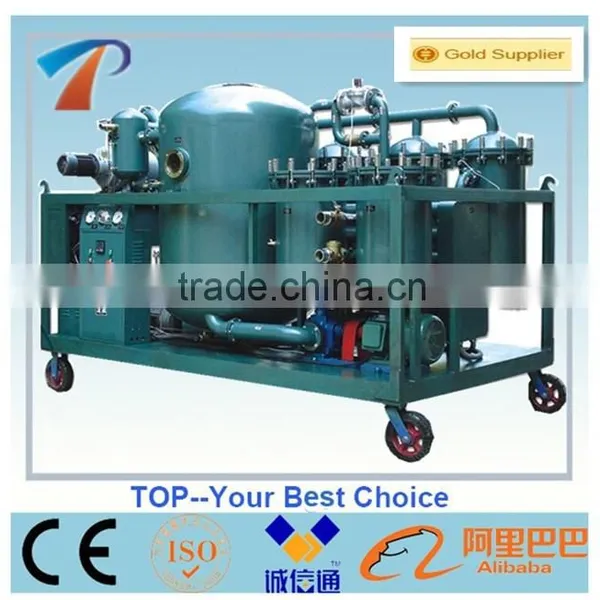

TOP Series ZYD-I- 30Double Stage Vacuum transformer Oil regenerating plant,ISO& CE remark,on site use,regenerate insulation oil
Application:
The Oil regeneration system (Series ZYD-I) has been specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. The ZYD-I system provides regular oil purification such as degassing, drying and particulate removal but also can remove acidity, sludge, other soluble oil decay products and discoloration. This is accomplished by the use of high vacuum degasification technology and particulate filters combined with our special brand of earth. After treating, the oil can be reused as new. For special application, the system also can be mounted on a leak proof base and can be installed and operated on a trailer.
Features:
1. Besides the common vacuum oil purifier's function of dewatering, degassing and eliminating particles, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon in the oil effectively. It can make the seriously deteriorated oil reach to the normal index like anti-oxides, acid-alkali water-solubility.
2. For special application, the operation can be controlled by P.L.C (Programmable Logic Controller).
3. Unique vacuum dehydration, degassifier, regeneration system, adopt stereoevaporation technology, high efficiently remove water, gas, particles from transformer oil, improve oil quality and dielectric strength.
4. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
5. UK g technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
6. Instinctive removing impurities system filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power
7. Advanced infrared liquidlevel automatic control system to accomplish fully automatic control.
8. Specially applied to vacuum oiling and drying for power transmission equipments.
9. The oil of any grades can be treated either on- or off-load.
10. Special oil pump design with lower noise.
11. Special additives for depolarization, can recover oil color of aged transformer oil to new, equipped with flexible unloading device of short time, good efficiency small quality. Discolor under vacuum can save cost of treatment, the waste impurities doesn’t pollute environment (it can be used to architecture and road pave)
Advantages:
Comparing with the singlestage vacuum oil purifier, this machine can dewater, degas and removes the impurities more quickly, more completely, and makes the oil BDV (Breakdown Voltage) of 75 kV or higher. As the bridge-type vacuum linking system that can purify and also can be an independent vacuum power supply, this machine can treat the electric insulation devices.
Technical Parameters:
Parameters |
Unit |
ZYD-I-30 |
ZYD-I-50 |
ZYD-I-100 |
ZYD-I-150 |
ZYD-I-200 |
ZYD-I-250 |
ZYD-I-300 |
||||||||
Flow rate |
L/h |
1800 |
3000 |
6000 |
9000 |
12000 |
15000 |
18000 |
||||||||
Working vacuum |
MPa |
-0.08~-0.099 |
||||||||||||||
Working pressure |
MPa |
≤0.3 |
||||||||||||||
Temperature range |
°C |
20 ~ 80 |
||||||||||||||
Power |
3 ph 380V 60Hz (Or as needed) |
|||||||||||||||
Working noise |
dB(A) |
75 |
75 |
75 |
75 |
80 |
80 |
80 |
||||||||
Heating power |
kW |
30 |
30 |
45 |
60 |
75 |
90 |
120 |
||||||||
Total power |
kW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
||||||||
Oil Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
||||||||
Weight |
Kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
||||||||
Overall |
Length |
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
|||||||
Width |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
||||||||
Height |
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
||||||||
Guarantee Value:
Item |
Unit |
After treatment |
Breakdown Voltage |
kV |
≥75 |
Moisture content |
PPM |
≤3 |
Gas content |
% |
≤0.1 |
Impurity size |
micron |
≤0.5 (no free carbon) |
IFT |
dynes/cm |
≥40 |
Acid value |
mg KOH/g |
≤ 0.03 |
Dielectric loss factors |
tgδ(90°C) |
≤0.001 |
Colour |
L |
≤0.5 |

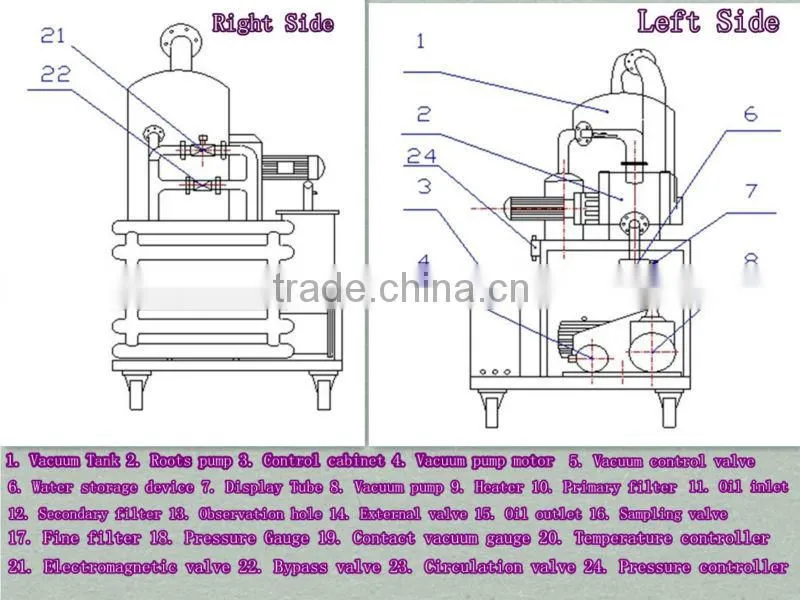

The working principle:
The insulating oil is conveyed into the degassing tank by means of pressure difference. Oil is indirectly heated by the heater, thus avoiding hot spots and over-swinging of the pre-selected operating temperature. The special degassing system and geometry with several stages in degassing tank creates a large oil surface and a resulting thin film for most effective maximum degassing.
The treatment with a lower end vacuum (-0.08 to -0.095 MPa) guarantees, among others, that no light fractions are evaporated in the insulating oil, whereby the required characteristics of the oil are not changed.
The oil level regulation in the degassing tank assures a continuous oil flow-through in the plant, thus resulting in an optimised degassing of the oil.
After degassing and dehydration under vacuum, the oil is conveyed by means of a specially sealed and frequency controlled pump into regeneration system. Then oil through the fine filterand out of the plant.
The Oil After Treatment:
Recommend Optional Parts:

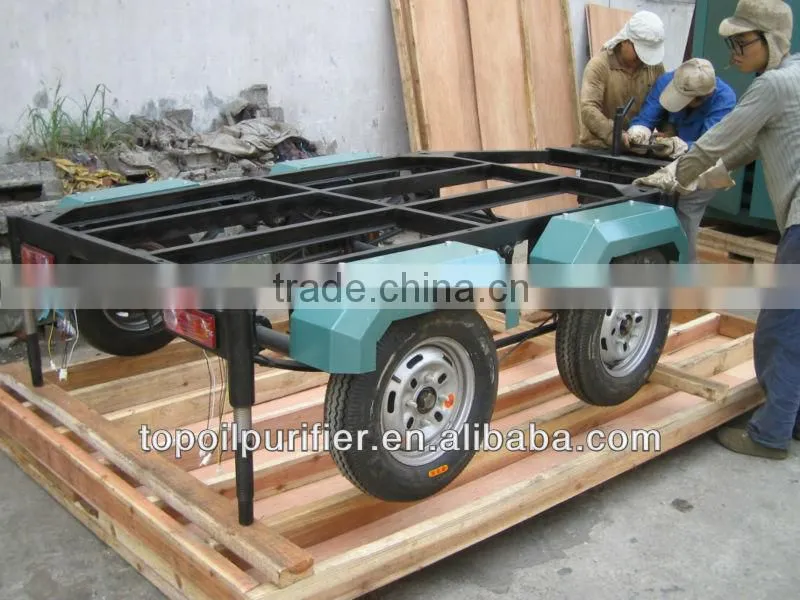

machine can be mounted on the trailer, move easily, outdoor using!
weather-proof, water-proof, dust-proof enclosure

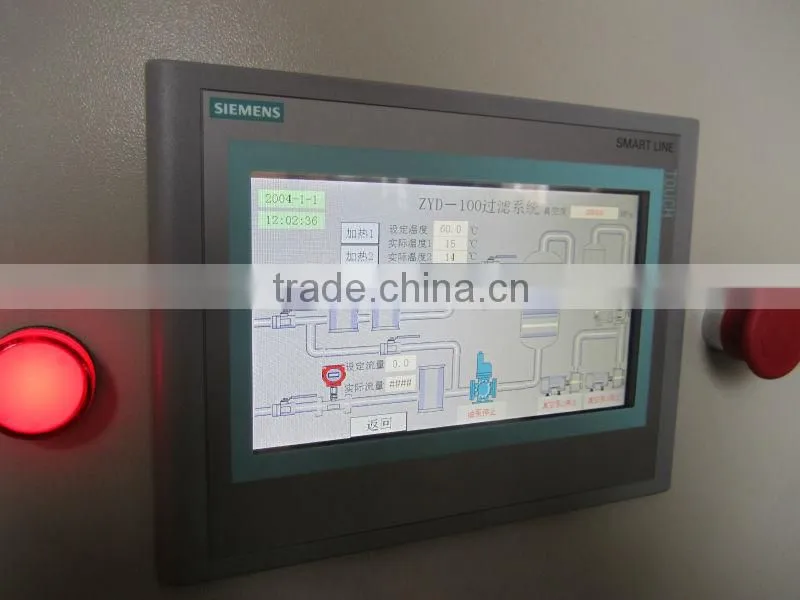

For special application, the operation can be controlled by P.L.C (Programmable Logic Controller)
CE& ISO Remark:
Delivery & Logistic:
About Us:
Chongqing Top Oil Purifier Co., Ltd is a professional leading manufacturer of oil purifiers and oil testers. We have tremendous strength in the fields of research, development and manufacturing with professional mass-production ability, perfect sales network, excellent after-sales service as well as a perfect image we earned in the competitive market.We specialized in oil purifier machine for more than 20 years.
Exquisite designed,advanced technology,good performance,high quality, low price, fast delivery,good qualiy package makes our purifier machine very competitive in the market all over the world.
Top Oil Purifiers are widespread in the fields of Electric Power, Petrifaction, Mineral, Shipbuilding, Steel Construction, Bridge, Automobile and Railway, playing a great role in the way of reducing energy consumption for the clients and meanwhile the environmental pollution.
Our company takes the mission of existing on the basis of quality as well as developing in regard to technical innovation, introduces foreign advanced technology of vacuum oil purifying, moreover, continues researching and manufacturing the oil purifying equipments that available both in the domestic and international market.
Our goal is ‘Not Best, Only Better’. We try our best to satisfy every customer from all over the world.
Our Company Main Products:
1. Transformer Oil Purifier: This kind of machine is used to purify used transformer oils by vacuum separation technology to remove water, gas, particles.
2. Lube Oil Purifier: This machine is to filter used lube oils, such as hydraulic oil, gear oil and other lubricants. It can effectively break emulsification and completely remove water, gas, particles.
3. Cooking oil recycling machine: This machine is used to recycle waste cooking oil, dirty vegetable oil, drainage oil, swill oil and animal oil etc., it effectively and completely removes particles, odor, water, gas, etc. from waste oil. The treated oil is clean and good smell.
4. Transformer Oil BDV Tester: This tester with automatic operation system is ued to online monitor transformer oil's dielectric strength.
5. Oil Water Content Testing Machine: This device is designed to test water content in oil to make sure the oil is suitable for further use.
Oil Purifier Series:
Oil Testing Equipment Series:
Application Field:
Top Oil Purifiers are widespread in the fields of Electric Power, Petrifaction, Mineral, Shipbuilding, Steel Construction, Bridge, Automobile and Railway, playing a great role in the way of reducing energy consumption for the clients and meanwhile the environmental pollution.
