Specification:
1.trailer type, closed structure
2.less power consumption, waterproof
3.Moisture content less than 5 ppm
4.safe and reliable

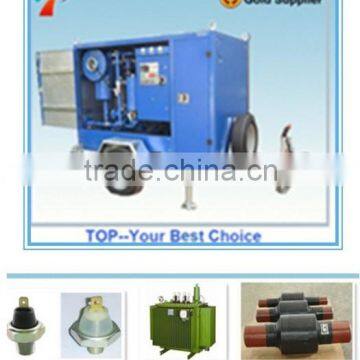

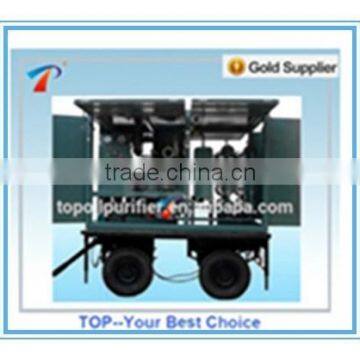

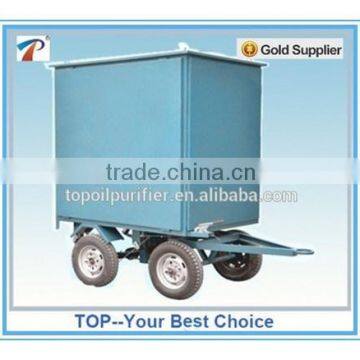

TOP insulation,Transformer oil filtering machine ZYM-20,car types with Bridge shock absorber, braking system
What is the usage of Series ZYM?
According to fieldwork requirement, this machine equips the car wheels, which can be easy to move to any work point by traction. It is special suitable for purifying the transformer oil which locate in different fields. This machine can recover the seriously transformer oil. The treated transformer oil can reuse again in transformer.
Features:
1. Mobile (trailer) type, completely closed structure, waterproof, dust-proof, move easy.
2. Installation of car types, Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Advantages:
Mobile (trailer) type, completely closed structure, waterproof, dustproof, it can move long distance working in field.
Work Process:
The oil is injected in the primary filter through oil inlet valve, when the oil purifier starts working. The big impurities are purified, and the oil including particles released into vacuum tank after heating. Under the low vacuum pressure and deaeration element, the vapor is separated from oil and vaporized quickly then condensate into water by cooler or drained away by vacuum system. The oil without any water is transferred into secondary filter and precision filter through oil pump then is eliminated all impurities. At last, we get the purified oil.

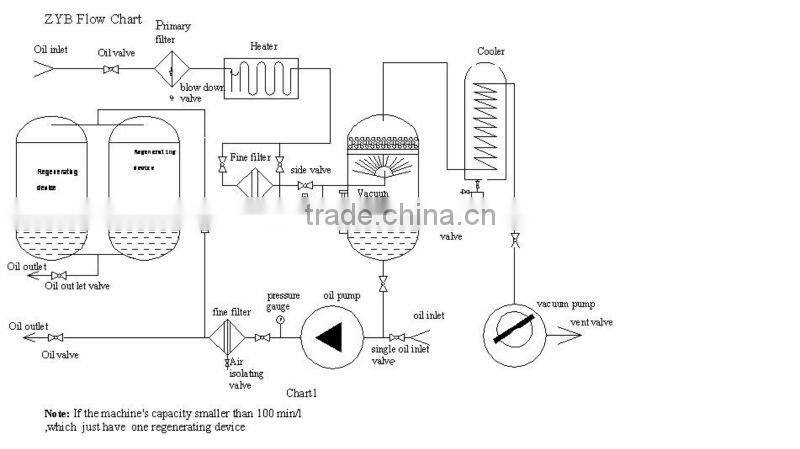

Flow Chart:
Technical Parameters:
Parameters |
Unit |
ZYM-6 |
ZYM-10 |
ZYM-20 |
ZYM-30 |
ZYM-50 |
ZYM-100 |
ZYM-150 |
ZYM-200 |
ZYM-300 |
|||||||||
Flow rate |
L/h |
360 |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|||||||||
Vacuum degree |
MPa |
-0.06~-0.095 |
|||||||||||||||||
Working pressure |
MPa |
≤0.3 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
|||||||||
Temperature range |
℃ |
20 ~ 80 |
|||||||||||||||||
Continuous working |
H |
150 |
|||||||||||||||||
Power supply |
|
Three phase,50HZ ,380V(or as per customer requirement) |
|||||||||||||||||
Working noise |
dB(A) |
60 |
61 |
63 |
70 |
70 |
75 |
70 |
70 |
70 |
|||||||||
Heating power |
kW |
9 |
11 |
13 |
15 |
30 |
48 |
58 |
70 |
85 |
|||||||||
Total power |
kW |
9.7 |
12.5 |
14.5 |
16.5 |
33.5 |
53 |
65 |
76 |
94 |
|||||||||
Oil inlet/outlet |
mm |
φ20 |
25 |
φ25 |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
|||||||||
Weight |
Kg |
150 |
230 |
250 |
270 |
300 |
500 |
700 |
900 |
1100 |
|||||||||
Size |
L |
mm |
970 |
1050 |
1100 |
1150 |
1200 |
1600 |
1600 |
1800 |
1900 |
||||||||
W |
mm |
630 |
750 |
850 |
900 |
950 |
1000 |
1100 |
1200 |
1200 |
|||||||||
H |
mm |
900 |
1300 |
1400 |
1450 |
1500 |
1800 |
1800 |
1900 |
1900 |
|||||||||
Guarantee Value:
Item |
Guarantee indexes |
Moisture content |
≤5 PPM |
Impurity size |
≤1 micron |
Gas content |
≤0.1% |
Breakdown voltage |
≥70 |
Why TOP Is Your Best Choise???
Exquisite designed, good performance,high quality,new advanced technology adopted,low price!!!
Chongqing TOP Oil Purifier Co.LTD., with more than 20 years manufacture experience, is specialized in oil purifier machine and oil testing equipment.
- Technical innovation constantly made, novel designed oil purifier appearance to attract consumers buying interests.
- Excellent & reliable after-sales service, two years free warranty for products quality,free training, installation and testing are available. Lifelong maintenance service,spare parts supply offered and engineers available to overseas for technical support.
We could desigen & customize the colour, configurations, shape of oil purifier to meet your demands
Benefits And Interests We Can Bring To You:
- We put the results of several years researching from the filter industry into practice and serve for various industry field,saving cost for more consumers. In this way, you can save a lot of oil cost by wasted oil recycling.
By using the convenient and quick way of innovative marketing mode of key-words searching can provide customers to get nice promotion. We have got satisfied feedbacks from so many consumers.
-
Our machine can recycling waste oil by using eco-friendly technology, non-pollution, efficient energy saving.

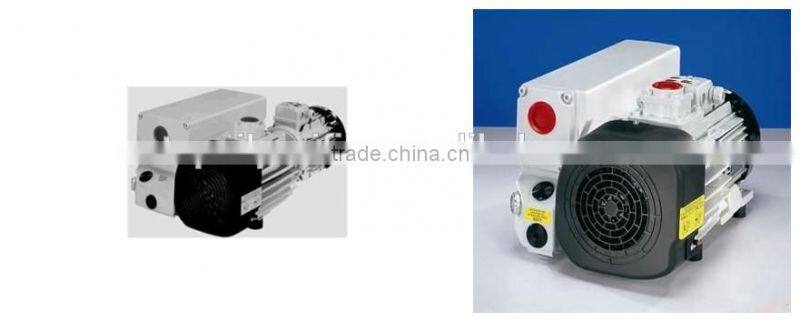

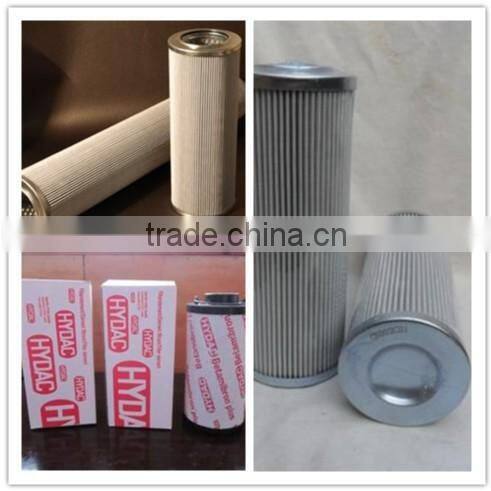

We always using good quality raw material:

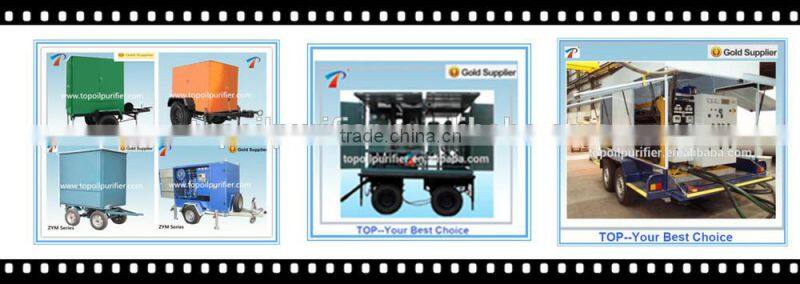

Different Color For Your Reference:

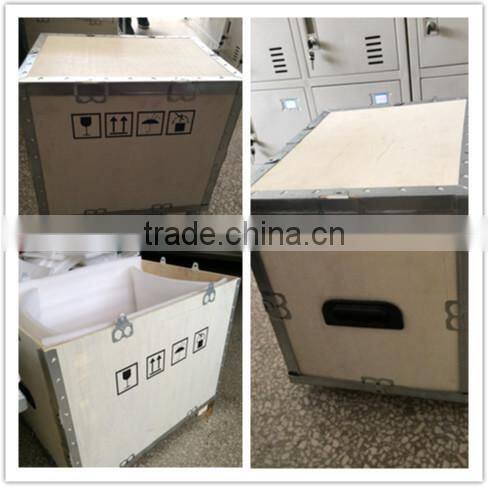

Packing and transport:
International standard packaging without any logo, can adjust to customers' requests
Bubble bags inside and international standard wooden cases outside
About us:
Our main products are: Insulting oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, transformer oil filtering machine, fuel oil restoration, steam-turbine Oil reconditioner, dielectric fluid regeneration system, vircuit-breaker oil recovering system, compressor oil recovering machine, gear oil renewal machine, coolant oil treatment, quenching oil reclaiming machine, oil and water separator, steel-rolling oil regeneration equipment, waste automobile oil Recycling Equipment, petroleum machine and oil Tester, etc.

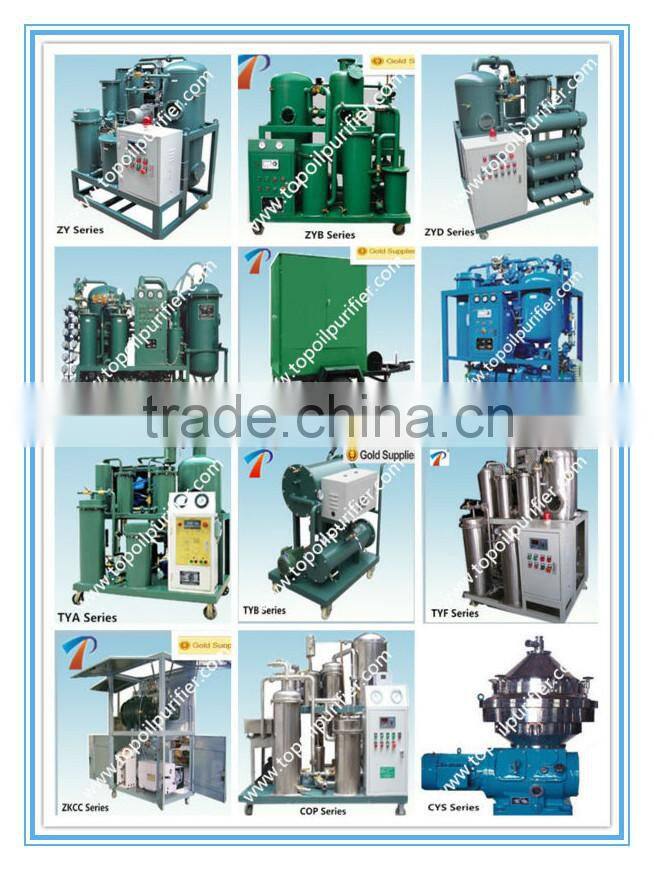

Oil Purifier Series:
1. Transformer Oil Purifier: This kind of machine is used to purify used transformer oils by vacuum separation technology to remove water, gas, particles.
2. Lube Oil Purifier: This machine is to filter used lube oils, such as hydraulic oil, gear oil and other lubricants. It can effectively break emulsification and completely remove water, gas, particles.
3. Cooking oil recycling machine: This machine is used to recycle waste cooking oil, dirty vegetable oil, drainage oil, swill oil and animal oil etc., it effectively and completely removes particles, odor, water, gas, etc. from waste oil. The treated oil is clean and good smell.
Oil Testing Instrument Series:
1. Transformer Oil BDV Tester: This tester with automatic operation system is ued to online monitor transformer oil's dielectric strength.
2. Oil Water Content Testing Machine: This device is designed to test water content in oil to make sure the oil is suitable for further use.
