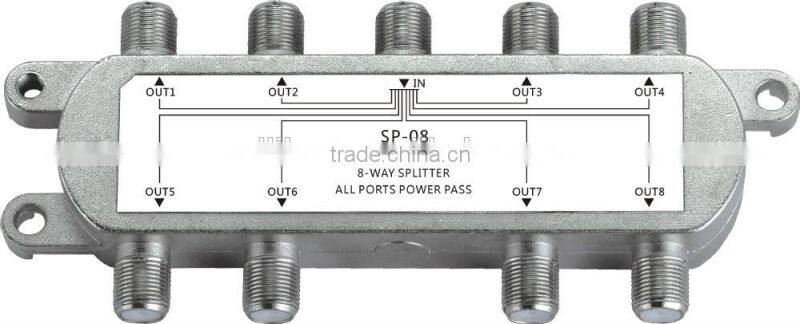

8-way satellite signal splitter 5-2400MHz for SATV/CATV SP8
Satellite 8-Way Splitter
JS-SP08
Features :
1, Zinc die-cast housing, tin-plated
2,Light weight and compact size
3,Easy installation with two edge hole sites
4,Screening factor: 5-2400MHz≥100dB
5,Low insertion loss, high isolation, perfect performance index
6,Designed for SATV/CATV
7,Power passing-24V 0.8A(MAX.)
8,All ports F-(f)connector,75Ohm
Specifications :
Frequency Range (MHz) |
Insertion Loss(dB) |
Mutual Isolation(dB) |
Return Loss(dB) |
5-40 |
≤12.0 |
≥20 |
≥10 |
40-1000 |
≤12.5 |
≥20 |
≥12 |
1000-1750 |
≤14.5 |
≥20 |
≥12 |
1750-2400 |
≤16.0 |
≥20 |
≥10 |
Product :
Our factory :
Sample offer:
1.Free samples are offered but the post charge would be collected
2.Free samples are sent during 3 or 4 days
Why us?
1.Professional manufacturer and exporter of distribution box , intelligent home system , wifi system
2.Over 16 years manufacturing experience
3.8000 square meters of workshop and 120 staff
4.ISO9001 certificate, ROHS and REACH
5.Good service: we treat our clients as friends
Q: What payment terms do you accept?
A: T/T,L/C,Western Union and Paypal are accepted,other terms can be discussed accordingly
Q: Could you provide samples for test?
A: Yes, we provide 1-2 pcs of samples for customers
Q: How do you guarantee the quality of the products we order?
A: Generally, the warranty is 16 months. If the products go bad or function-failed in 16 months after you order, we take the responsibility for its replacement. Out of warranty, we are still willing to replace the goods at your expense.
Q: Are your products compliant with ROHS regulation?
A: Yes, all materials of our products are compliant with ROHS.
If this still can't solve your problem, you are welcomed to contact us!
