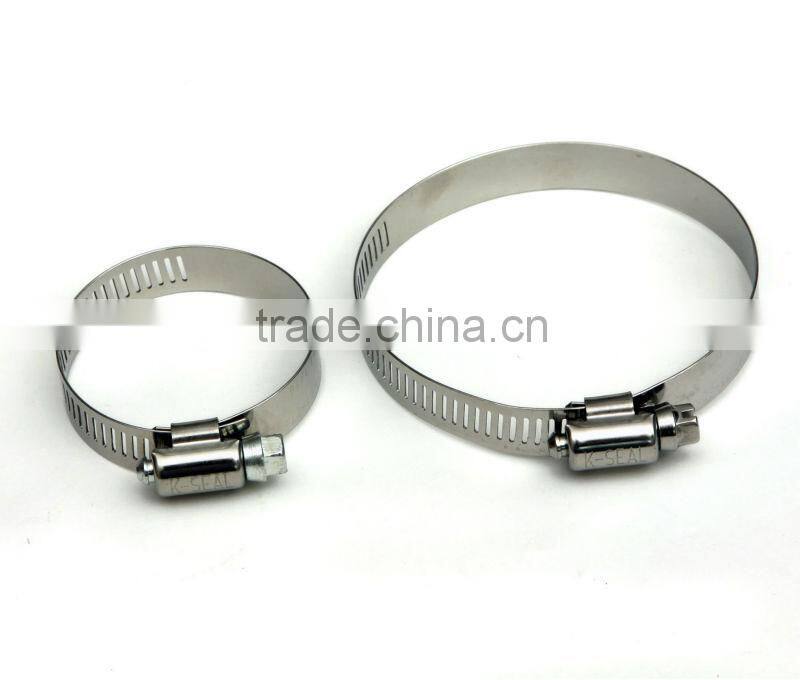

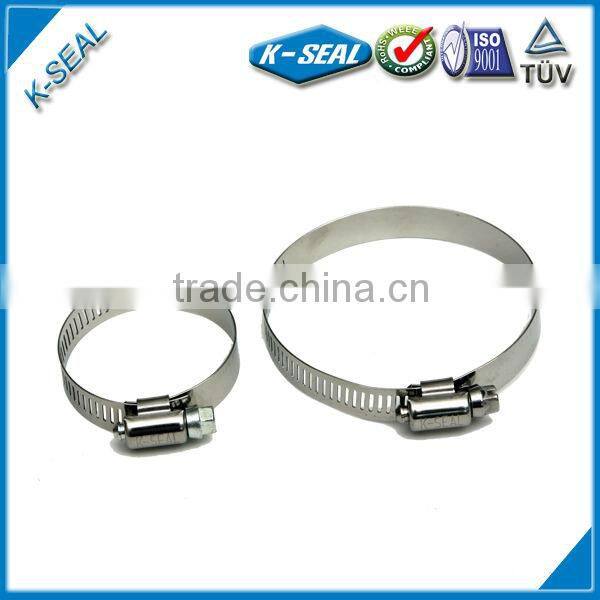

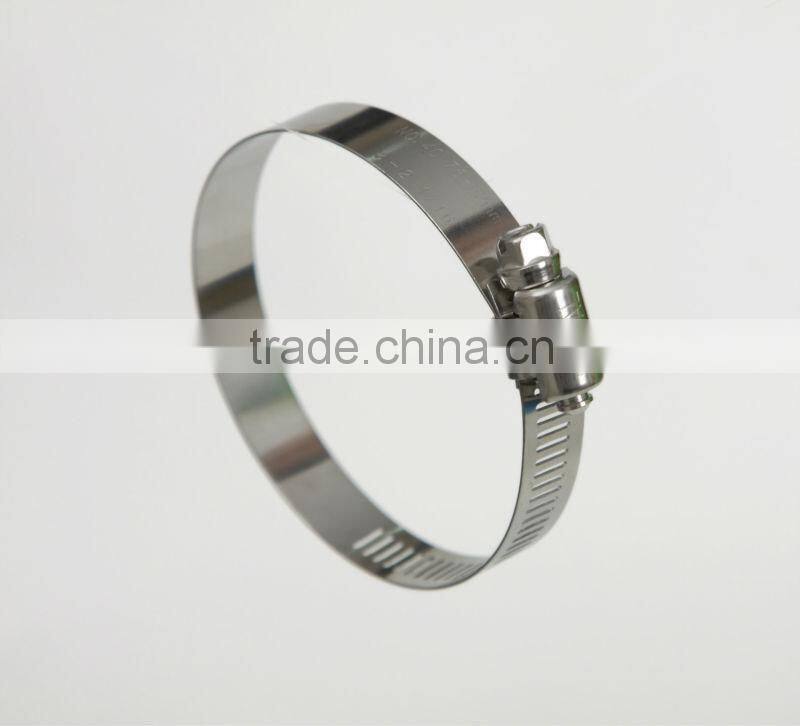

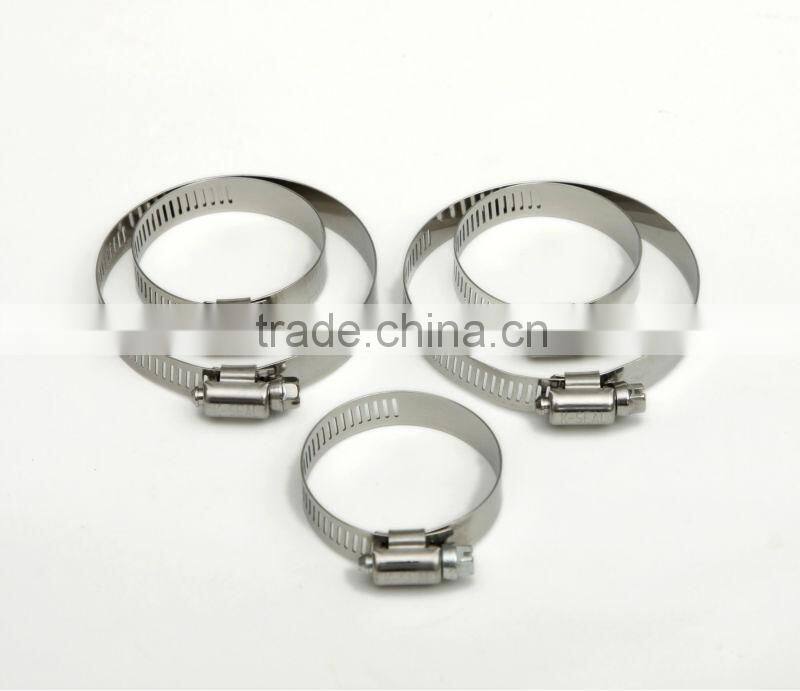

American type hose clamps Fitting Swimming pool
- 240000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card
- FK-ETD54 clip clamp,material sus301 stainless steel,Surface Cleaning,Easy to assemble, stable clamping force.
- RM14 Clamp, RM14 Double PIN clip , RM14 core clamps,wholesale inventories, quality assurance, delivery fast. Can provide customers with matching Core and Bobbin
- RM12 transformer clamp,RM12 with PIN, RM12 core clamps,wholesale inventories, quality assurance, delivery fast. Can provide customers with matching Core and Bobbin
- DIN3352 F4 Resilient Non-rising Gate Valve
- High Quality Low Price Oil&Gas Pipe Fitting Clamp Metal Pipe External Pipe Line Up Clamp Cage Type Clamp
- manual type external line up clamp made in China with stocks
Product Details
Place of Origin: | Anhui, China | Brand Name: | K-Seal | Model Number: | K6SS |
Usage: | Other | Material: | Stainless Steel | Standard or Nonstandard: | Standard |
Product Description
Specifications
100 years American TechnologyChina Excellent Manufacturing
Partner of Fortune top 500
A Leading Brand in hose clamp Industry
1)bandwidth: 12.7mm Thickness:0.6mm
2)diameter : 11-20 mm
3) Installation Torque : 4.0-5.1N.M, Ultimate torque6.8 N.M
4)The hose clamp material different, its corrosion resistance is also different. Customers can choose a suitable hose clamps according to their practical application.
| KMxxSS | KMFxxSS | |||||||
Material for Band | AISI 200 Series SS | AISI 300 Series SS | |||||||
Material for Housing | AISI 200 Series SS | AISI 300 Series SS | |||||||
Material for Screw | AISI 200 Series SS | AISI 300 Series SS | |||||||
Detail | Heat-treated |
| |||||||
corrosion resistance | good | Better | |||||||
Rated Ultimate Torque | 20in.lbs. min.(2.3Nm) | 15in.lbs. min.(1.7Nm) | |||||||
Recommended Installation Torque | 12-15in.lbs.(1.4-1.7Nm) | 10-12in.lbs.(1.1-1.4Nm) | |||||||
| |||||||||

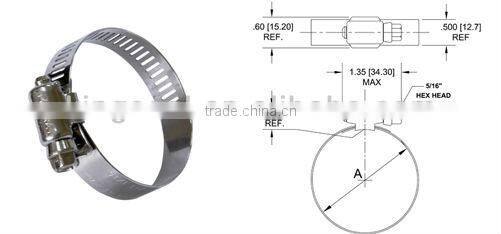

Part Number | "A" Diameter Range | ||||||||
SAE Ref. | "200"Series SS | "300"Series SS | Millimeters | Inches | |||||
4 | KM4SS | KMF4SS | 8 | ~ | 16 | 5/16 | ~ | 5/8 | |
6/8 | KM5SS | KMF5SS | 8 | ~ | 23 | 5/16 | ~ | 29/32 | |
10 | KM10SS | KMF10SS | 14 | ~ | 27 | 9/16 | ~ | 1-1/16 |
Kxx | KxxSS | KFxxSS | KLxxSS | |
Material for Band | AISI 200 Series SS | AISI 200 Series SS | AISI 300 Series SS | AISI 316 SS |
Material for Housing | AISI 200 Series SS | AISI 200 Series SS | AISI 300 Series SS | AISI 316 SS |
Material for Screw | Carbon Steel | AISI 200 Series SS | AISI 300 Series SS | AISI 316 SS |
Detail | Heat-treated, double-plated with zinc plus trivalent chromate. | |||
Corrosion resistance | ordinary | good | better | Best |
Rated Ultimate Torque | 50in.lbs. min.(5.6Nm) | 60in.lbs. min.(6.8Nm) | 60in.lbs. min.(6.8Nm) | 60in.lbs. min.(6.8Nm) |
Recommended Installation Torque | 30-40in.lbs.(3.4-4.5Nm) | 35-45in.lbs.(4.0-5.1Nm) | 35-45in.lbs.(4.0-5.1Nm) | 35-45in.lbs.(4.0-5.1Nm) |
56 | K56 | K56SS | KF56SS | KL56SS | 78 | 102 | 3-1/16 | 4 | |||
60 | K60 | K60SS | KF60SS | KL60SS | 84 | 108 | 3-5/16 | 4-1/4 | |||
64 | K64 | K64SS | KF64SS | KL64SS | 90 | 114 | 3-9/16 | 4-1/2 | |||
72 | K72 | K72SS | KF72SS | KL72SS | 103 | 127 | 4-1/16 | 5 | |||
80 | K80 | K80SS | KF80SS | KL80SS | 116 | 140 | 4-9/16 | 5-1/2 | |||
88 | K88 | K88SS | KF88SS | KL88SS | 129 | 152 | 5-1/16 | 6 |
| ||
96 | K96 | K96SS | KF96SS | KL96SS | 141 | 165 | 5-9/16 | 6-1/2 |
| ||
104 | K104 | K104SS | KF104SS | KL104SS | 154 | 178 | 6-1/16 | 7 |
| ||
116 | K116 | K116SS | KF116SS | KL116SS | 165 | 197 | 6-1/2 | 7-3/4 |
| ||
128 | K128 | K128SS | KF128SS | KL128SS | 144 | 216 | 5-11/16 | 8-1/2 |
| ||
140 | K140 | K140SS | KF140SS | KL140SS | 163 | 235 | 6-7/16 | 9-1/4 |
| ||
152 | K152 | K152SS | KF152SS | KL152SS | 182 | 254 | 7-3/16 | 10 |
| ||
164 | K164 | K164SS | KF164SS | KL164SS | 201 | 273 | 7-15/16 | 10-3/4 |
| ||
176 | K176 | K176SS | KF176SS | KL176SS | 225 | 292 | 8-11/16 | 11-1/2 |
| ||
188 | K188 | K188SS | KF188SS | KL188SS | 239 | 311 | 9-7/16 | 12-1/4 |
| ||
200 | K200 | K200SS | KF200SS | KL200SS | 259 | 330 | 10-3/16 | 13 |
| ||
212 | K212 | K212SS | KF212SS | KL212SS | 277 | 349 | 10-15/16 | 13-3/4 |
| ||
224 | K224 | K224SS | KF224SS | KL224SS | 296 | 368 | 11-11/16 | 14-1/2 |
| ||
236 | K236 | K236SS | KF236SS | KL236SS | 315 | 387 | 12-7/16 | 15-1/4 |
|
