Portable Transformer Oil, Lubricating Oil Quality Analyzer, Online Oil Pollution Control and Test

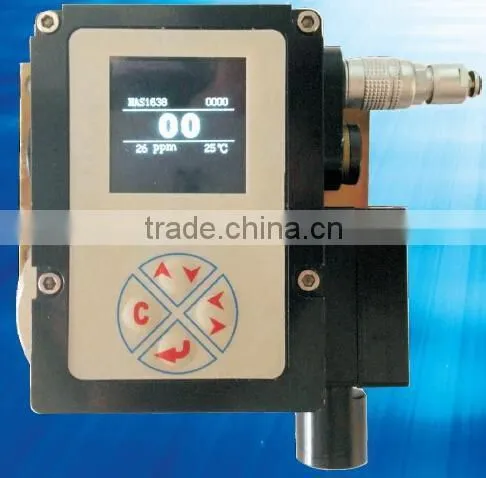

Portable Transformer Oil, Lubricating Oil Quality Analyzer, Online Oil Pollution Control and Test photo-1

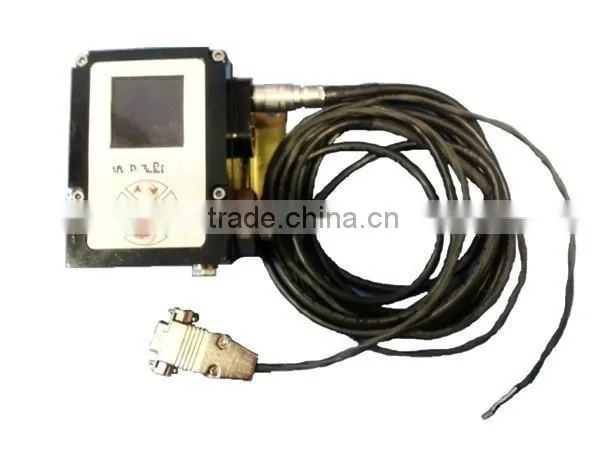

Portable Transformer Oil, Lubricating Oil Quality Analyzer, Online Oil Pollution Control and Test photo-2
US$ 1 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
TOP
Model Number:
PTT-002
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Chongqing other main ports of China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Chongqing, China
Brand Name TOP
Model Number PTT-002
Product Description


Portable Transformer Oil, Lubricating Oil Quality Analyzer, Online Oil Pollution Control and Test



Applications:

PTT-002 online oil quality analyzer is an intelligent, portable and effective analyzing equipment. It could online test and display degree of pollution of oil from hydraulic and lubricating system, so that maintenance staff could take preventive measures in early period, avoiding abrasion and damage upon hydraulic components from containments. In this way, it not only help you minimize maintenance expense, but also help decrease the shutdown time of equipment. Series PTT-002 could also help improve security of system and extend the performance time of your equipment.


Features:

PTT-002 adopts OLED display screen and display the degree of pollution of oil in digit. It could test degree of pollution in mineral oils or phosphate synthetic oils, such as hydraulic oil, lubricant oil, transformer oil(insulation oil), turbine oil, gear oil,engine oil and so on. Currently, PTT-002 is widely used in the fields of Aerospace, Electricity, Petroleum, Chemical Industry, Transportation, Harbour, Metallurgy, Machinery, Automobile Manufacturing etc.


Technical Parameter:

Weight
538 g
Dimension
63mm×88mm×45 mm
Oil Temperature
-20℃~80℃
Storage Temperature
-40℃~85℃
Humidity
Operation under 20%~85%RH; Storage under 98%RH
Particulate
Size:2µm,5µm,15µm,25 µm or 4µm(c),6µm(c),14µm(c),21 µm(c)
Connecting Screw Thread
M10×1mm

Standards of Pollution Degree
ISO 4406 01~29
NAS 1638 00~12
PPM
Online Oil Flow Rate
50mL/min ~300 mL/min
Power Supply
DC 9V ~ 18V (Power Supply Ripple Wave<30mVp-p)
Precision of Repeatability
±0.5 ISO Grade
Our Company


Chongqing TOP Oil Purifier Manufacture Co., Ltd is a professional leading manufacturer of oil purifiers and oil testers. We takes the mission of existing on the basis of excellent quality as well as developing technical innovation,and introduces advanced technology.
TOP's pruducts are widely used in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway. They help a lot with reducing energy consumption and also environmental pollution.
Top will as always make great effort to and also be proud of supplying you the best oil purifying equipments.


Our tester factory

Customer's  visiting view

Our Service

Pre-Sales Service

* Professional pre-sale model/configuration selection advise and technical support -- offered by experienced technician.

* Free on-site installation, debugging and technical training -- offered by strictly trained technology application engineers.

After-Sales Service

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.

* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.

* We build instrument service profile for our clients to record the product service and maintenance conditions

* After instruments start service, we will pay follow-ups to collect the service conditions
