TYA Series Multi-stage Filtration System Portable Used Engine Oil/hydraulic Oil Refining Machine

TYA Series Multi-stage Filtration System Portable Used Engine Oil/hydraulic Oil Refining Machine photo-1
TYA Series Multi-stage Filtration System Portable Used Engine Oil/hydraulic Oil Refining Machine photo-2
TYA Series Multi-stage Filtration System Portable Used Engine Oil/hydraulic Oil Refining Machine photo-3

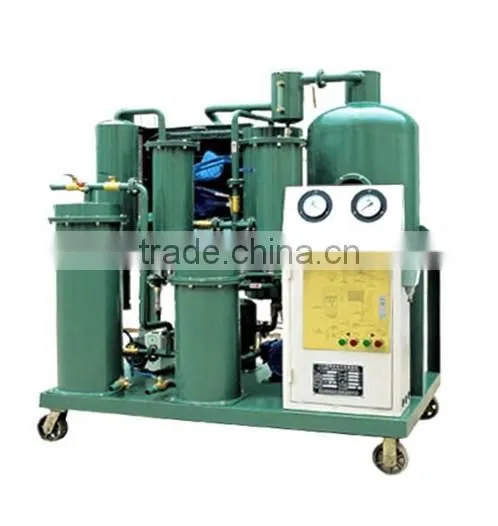

TYA Series Multi-stage Filtration System Portable Used Engine Oil/hydraulic Oil Refining Machine photo-4
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Flow:
600~18000L/H
Working Pressure:
≤0.4 Mpa
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Chongqing other main ports of China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Flow 600~18000L/H
Working Pressure ≤0.4 Mpa
Place of Origin Chongqing, China
Brand Name TOP
Model Number TYA
Usage Lubricant Oil
Voltage 380v 50hz
Power(W) 38~147KW
Dimension(L*W*H) Depends on model
Weight 350-750kg
Certification CE; ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description

TYA series multi-stage filtration system portable used engine oil/hydraulic oil refining machine



Application:


TYA series oil refining machine is the most widely used for the regeneration of used hydraulic oil, frozen oil, resistant hydraulic oils and high purify lubricating oil.  It can remove water, gas and eliminate mechanical impurities, light acid and light hydrocarbon from oil, and improve oil quality, resume its lubricating property and ensure normal operation of the equipment.


Features:

1.It is capable of water removal, degassing,and purifying

alescence separation filter combined with vacuum system removing moisture in oil effectively.

3.Equipped with multistage filtration system.

4. Equipped with automatic backwash system

Technical parmeter of the TYA Series
Parameters
Unit
TYA-10
TYA -20
TYA -30
TYA -50
TYA -100
TYA -150
TYA-200
TYA-300
Flow rate
L/h
600
1200
1800
3000
6000
9000
12000
18000
Vacuum degree
Mpa
0.06~0.095
Working pressure
Mpa
≤0.4
Temperature degree
0~100
Power supply
3Phase, 380V, 50Hz(or as needed)
Working noise
dB(A)
≤65~80
Electric heating power
kW
36
40
45
72
80
90
120
135
Total electric power
kW
38
42
47
75
87
101
135
147
Inlet (outlet) caliber
mm
Ф25
Ф25
Ф25
Ф32
Ф42
Ф50
Ф50
Ф60
Size
mm
1500x1000x 1600
1500x1050x 1600
1500x1050x1650
1600x1150x1700
1750x1150x1750
1900x1600x1950
1950x1600x1950
2100x1600x2000
Weight
Kg
380
400
450
550
650
700
750

Guarantee Value:

Item
Guarantee indexes
Moisture content
≤50 PPM
Demulsification value
New oil≤15min,running oil≤30min
Impurity size
≤1 micron
Gas content
≤0.1%
Clean degree
≤4 Grade (NAS1638)

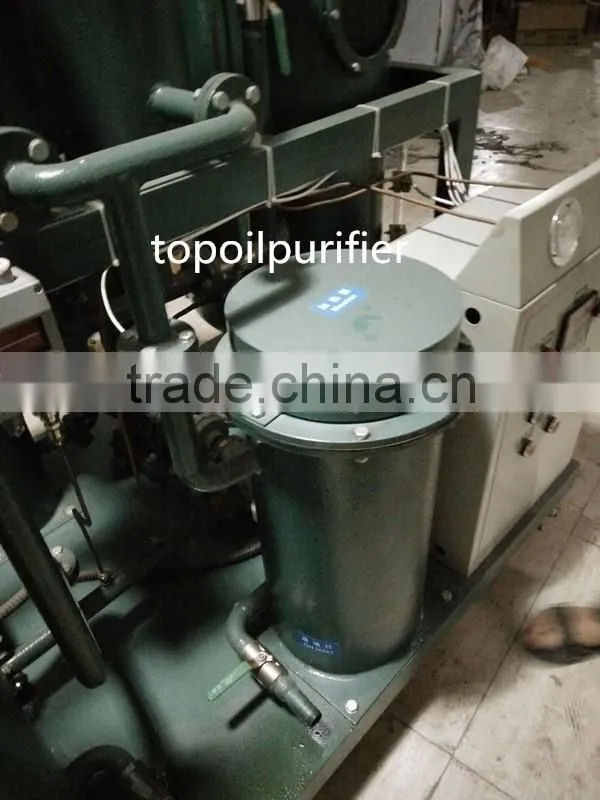

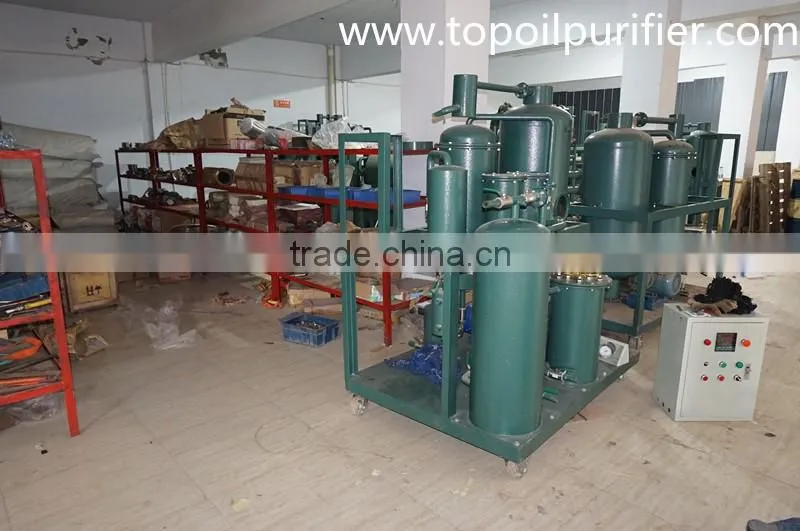

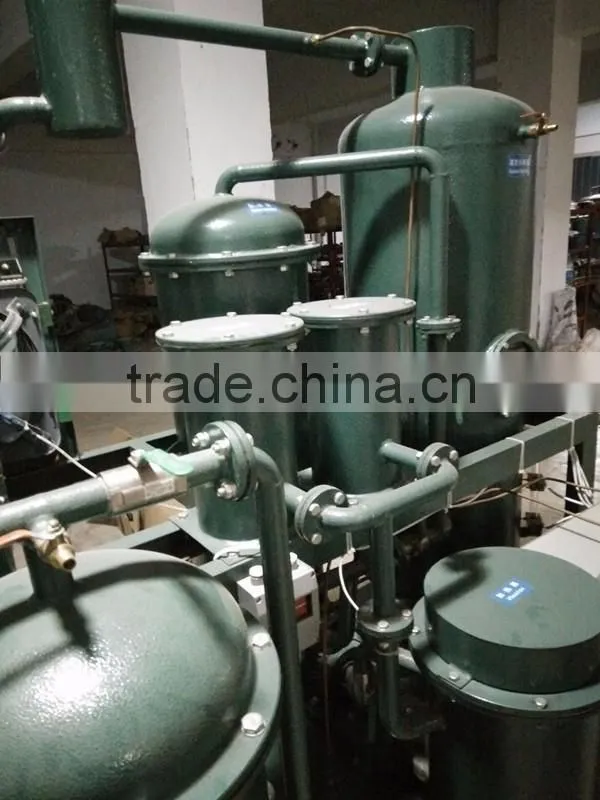

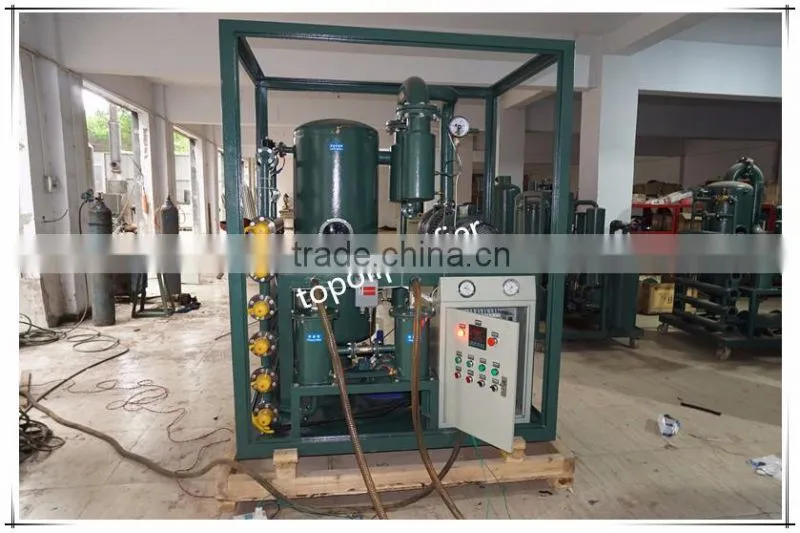

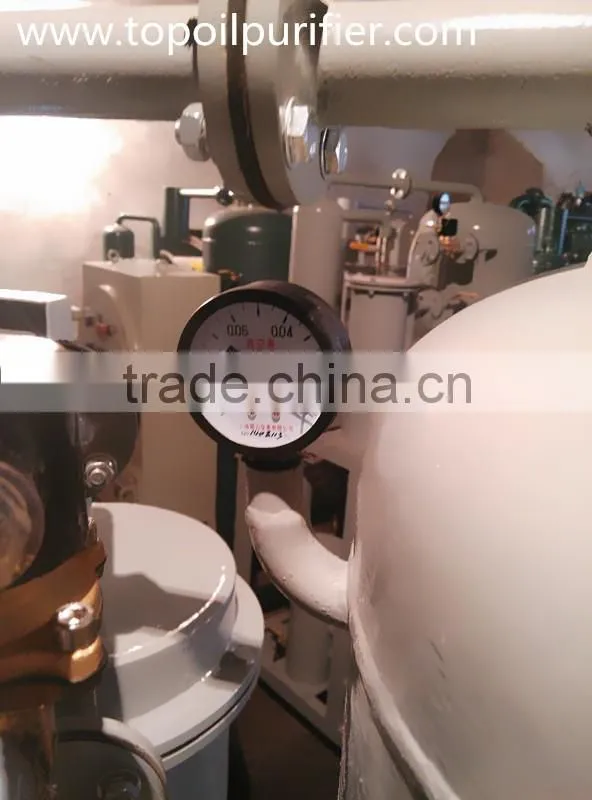

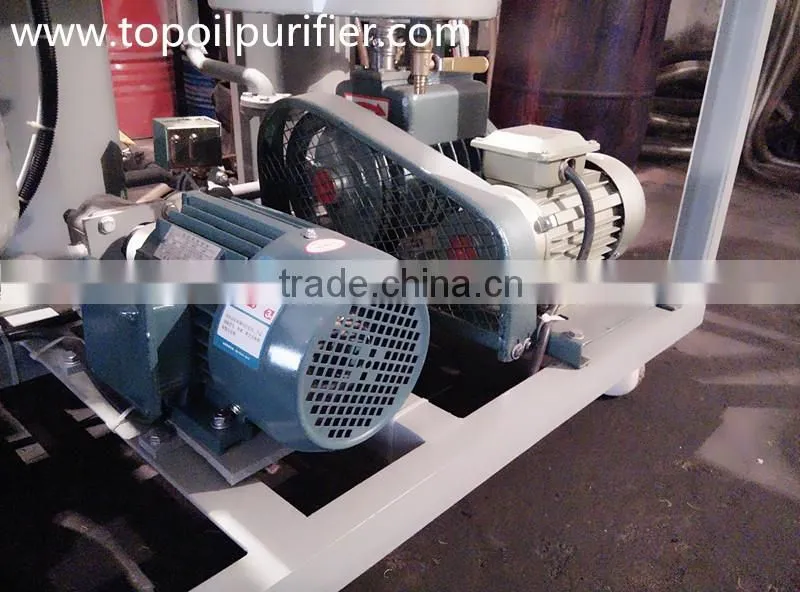

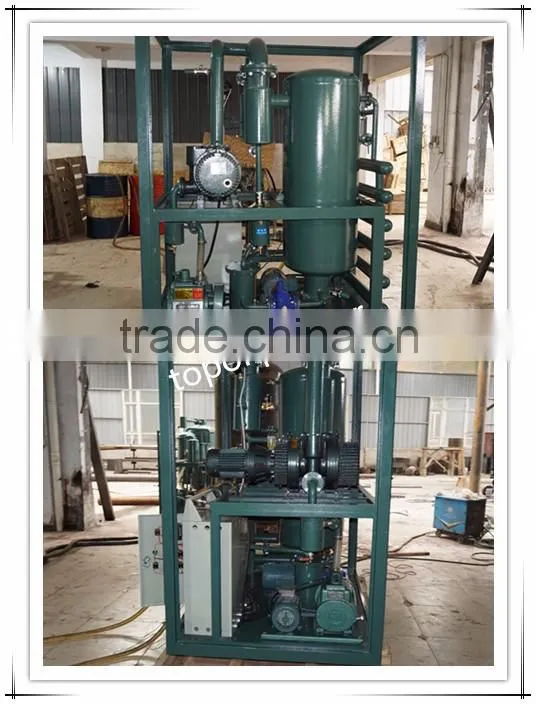

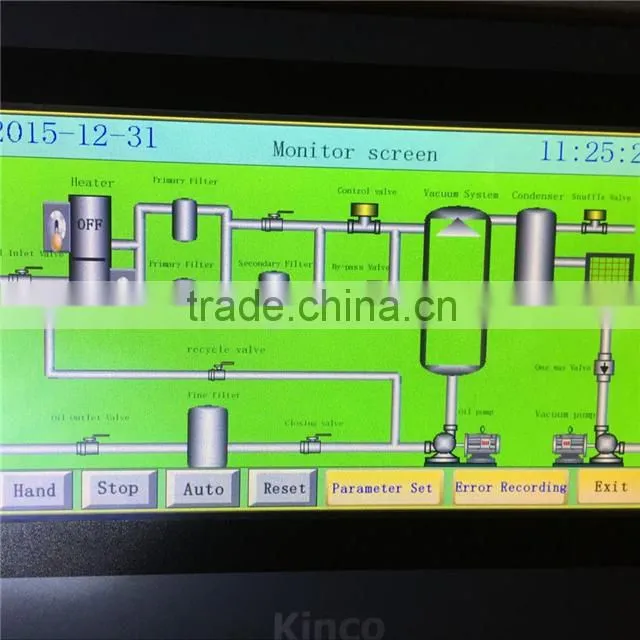

Detailed Images
Our Company


Chongqing TOP Oil Purifier Co.,Ltd is a leading professional manufacture of oil purifiers and oil testers from China. We practiced in this line for more than 20 years and has grown to be a full skilled team in tech research, operating,  producing with rich experience.We work out oil solution projects aiming at customers’ oil problems and needs.

We strongly cared our products are in good function,high efficiency, great cost performance, security,and ecological attention with environmental protection.

Our products help you

save oil change cost
• solve oil disposal problem
• keep equipment working more efficiently
• protect machinery and reduce maintenance time
• create a cleaner environment

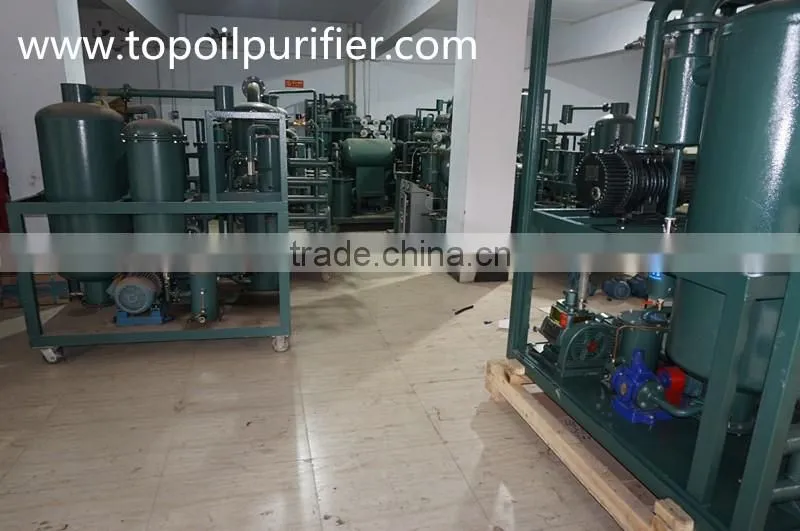

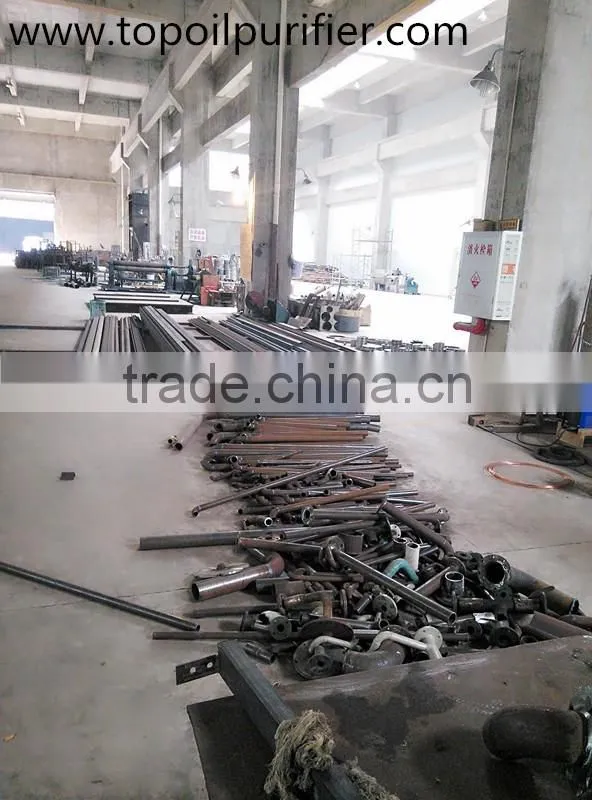

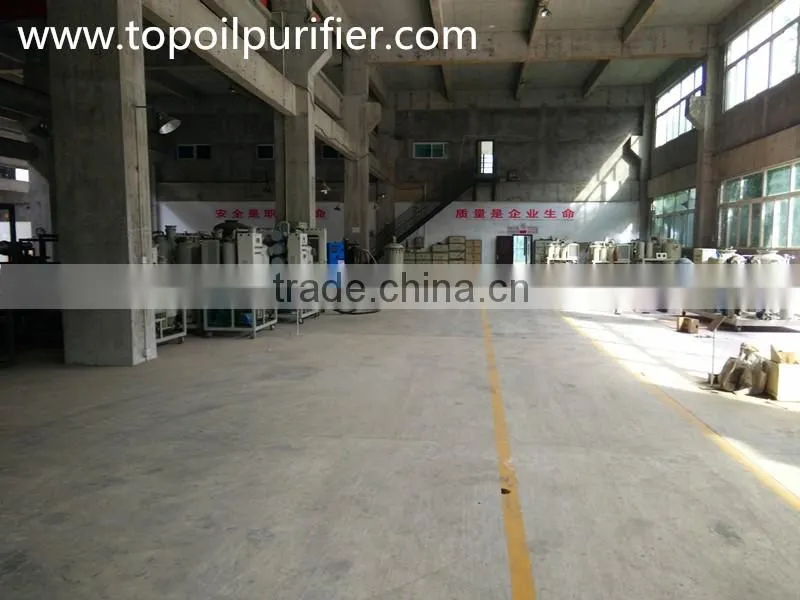

Our factory and certificate
