Used Cooking Oil Filtration System/Oil Decoloring/Coconut Oil Filter Machine

FOB Price

USD $1,000 - $40,000 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Shanghai or other main port of China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Flow	Choose from 600 to 18000L/h as per you need
Working Pressure	≤0.4 Mpa	Place of Origin	Chongqing, China
Brand Name	TOP	Model Number	COP Series
Usage	Other, cooking oil/vegetable oil/animal oil/coconut oil etc	Voltage	380V (Customizable)
Power(W)	As per capacity(customizable)	Dimension(LWH)	As per capacity
Weight	As per capacity	Certification	CE, ISO9001
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Cooking oil regenerator, virgin coconut oil filter machine, VCO coconut oil purifier

(COP Series)

Application:

COP Series vacuum oil purifier is applied to purify used cooking oil, vegetable oil, coco oil, sunflower oil, trench oil, swill oil, animal oil, lubricating oil etc. It is an ideal purification machine for fried food factory, oil restaurant, cooking oil factory, vegetable oil factory, waste oil collecting store and biodiesel factory etc.

COP vacuum cooking oil cleaning machine effectively removes particles, water, gases and alcohol etc from the oil.

With our regeneration decoloring and deodoring device specially designed for cooking oil, it can also effectively remove the dark color and bad smell from oil.

Features:

1.The filters of COP, made of the stainlessness steel, is anti-rust and anti-corrupt. It makes sure the filtered oil is completely clear without any impurity. The precision is quite high and the service life is long. Also, it has a large volume for storing the impurities.
2. After the water separator treat the oil, it just contains the tiny water and soluble water.
3. The vacuum separator adopts three-dimensional duplex evaporation and film evaporation. The tiny water, soluble water, acid, alcohol, other volatility liquid and so on can be removed completely and effectively.
4. It adopts back flushing system, which can clear impurities automatically.
5. Simple operation, reliable, and safe.

Technical Parameter

Parameters	Unit	COP-10	COP-20	COP-30	COP-50	COP-100	COP-150	COP-200	COP-300
Flow Rate	L/min	10	20	30	50	100	150	200	300
Work Vacuum	MPa	-0.06 ～ -0.095
Work Pressure	MPa	≤0.4
Temperature	℃	0 ～ 100
Power supply	380V,50Hz, 3 phase (or as needed)
Working noise	dB(A)	≤75	≤75	≤75	≤78	≤78	≤78	≤80	≤82
Heating power	KW	36	40	45	72	80	90	120	135
Total power	KW	38	42	47	75	87	101	135	147
Inlet/outlet	mm	25	25	25	32	42	50	50	60
Net weight	Kg	450	550	600	750	850	1000	1200	1500
Overall dimensions	mm	1500×1000×1200	1500×1050×1600	1500×1050×1650	1600×1150×1700	1750×1250×1800	1900×1600×1950	1900×1700×2000	2100×1700×2100

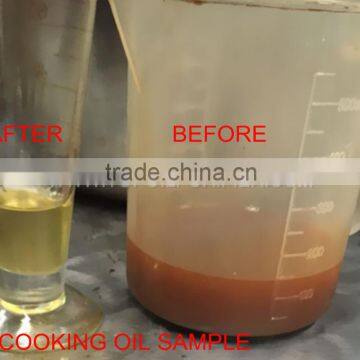

Oil index after treated by our COP

Item	Guarantee indexes
Moisture content	≤50 PPM
Demulsification value	New oil≤15min, running oil≤30min
Impurity size	≤1 micron (no free carbon)
Gas content	≤0.1%
Clean degree	≤4 Grade (NAS1638)

Detailed Images

According to the treated oil usage, you can choose different machine body.

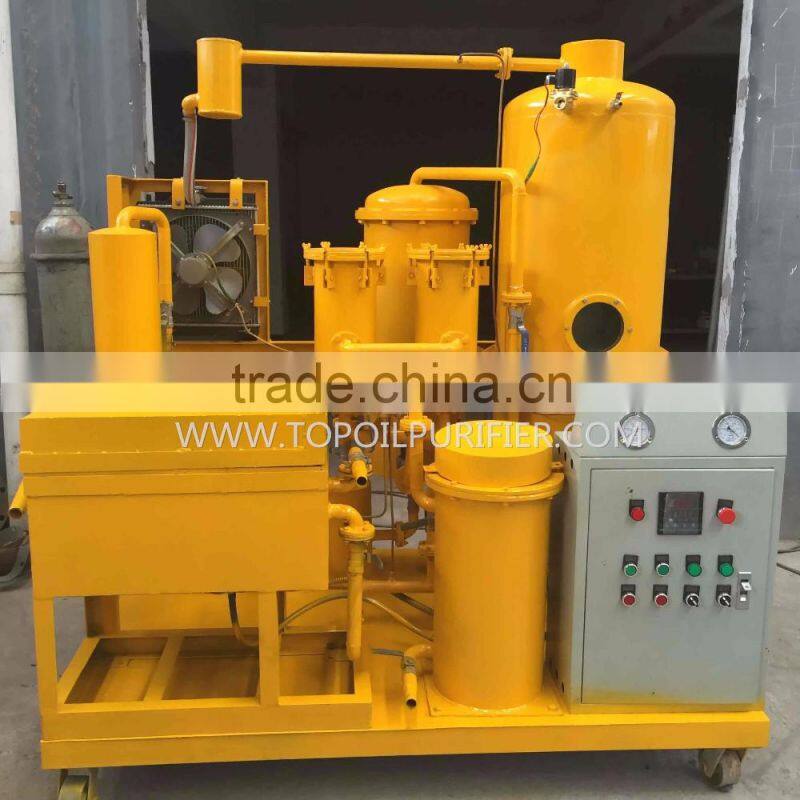

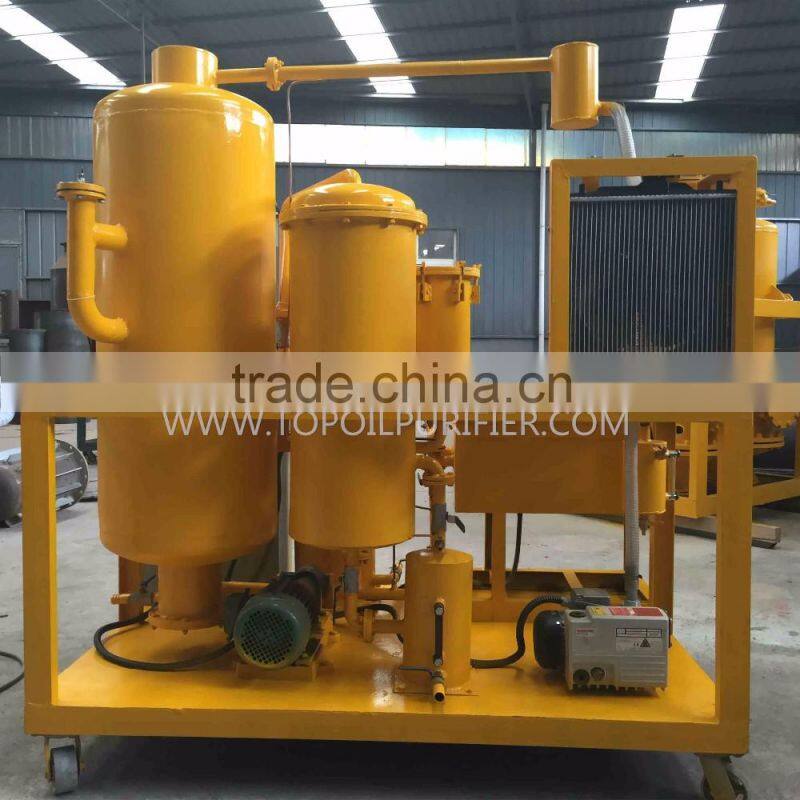

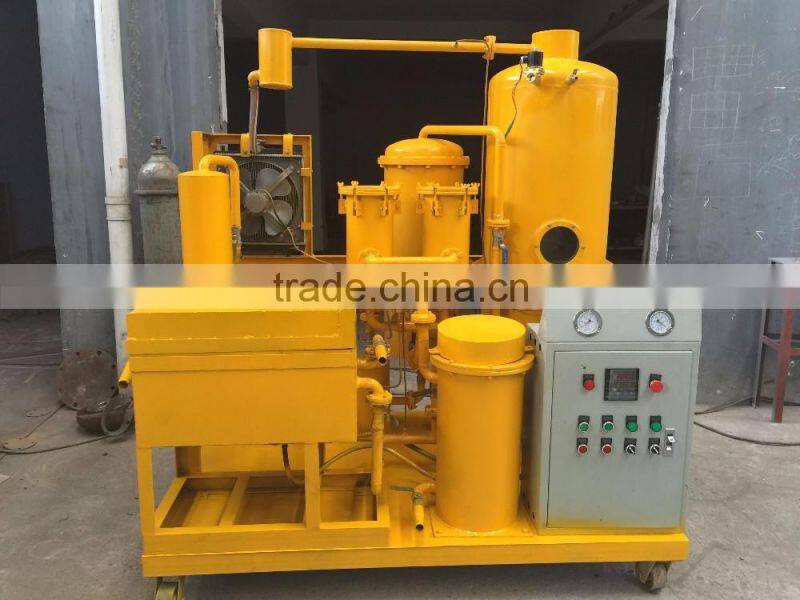

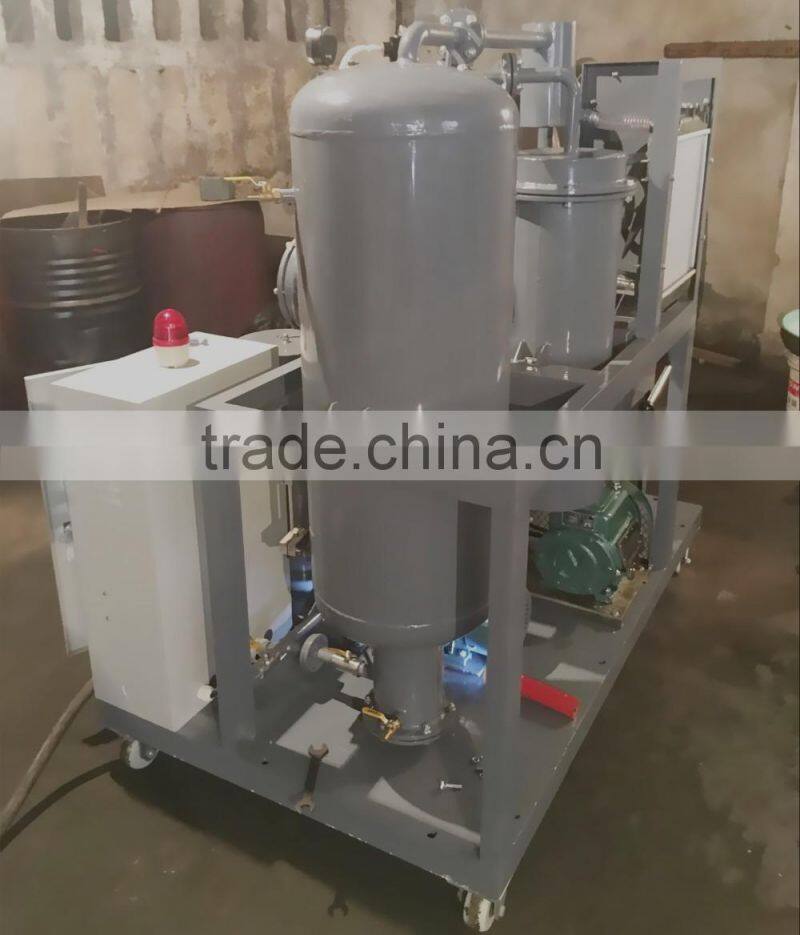

Carbon steel machines

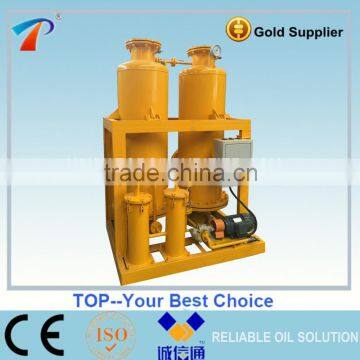

Discoloring device for cooking oil purifier machine

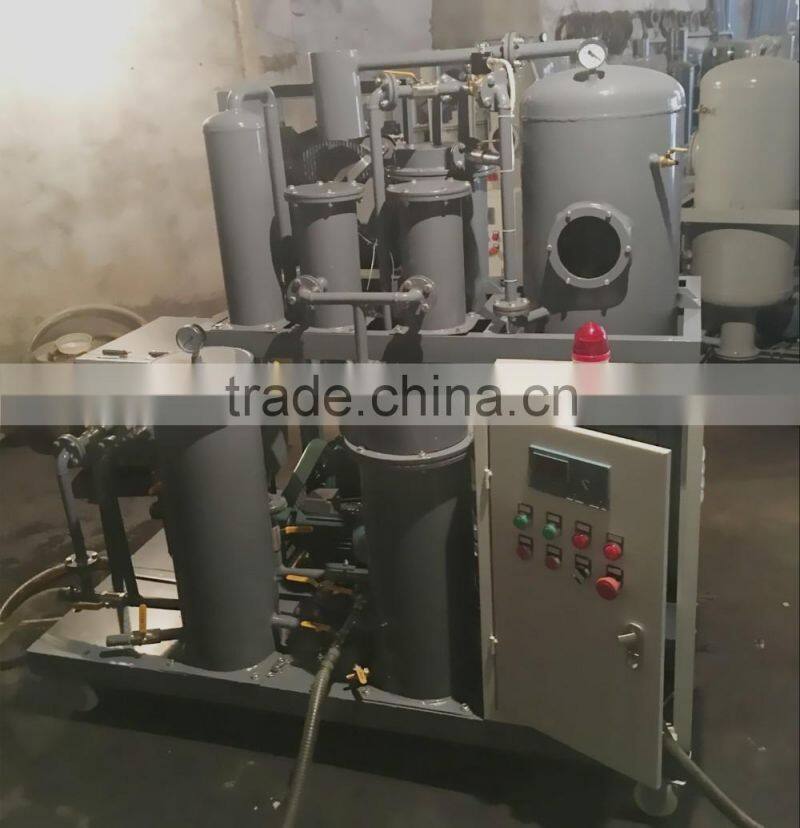

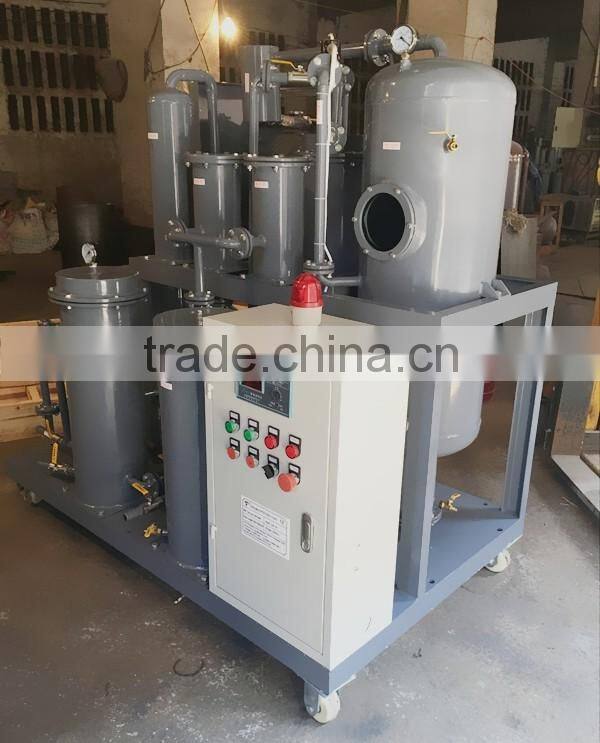

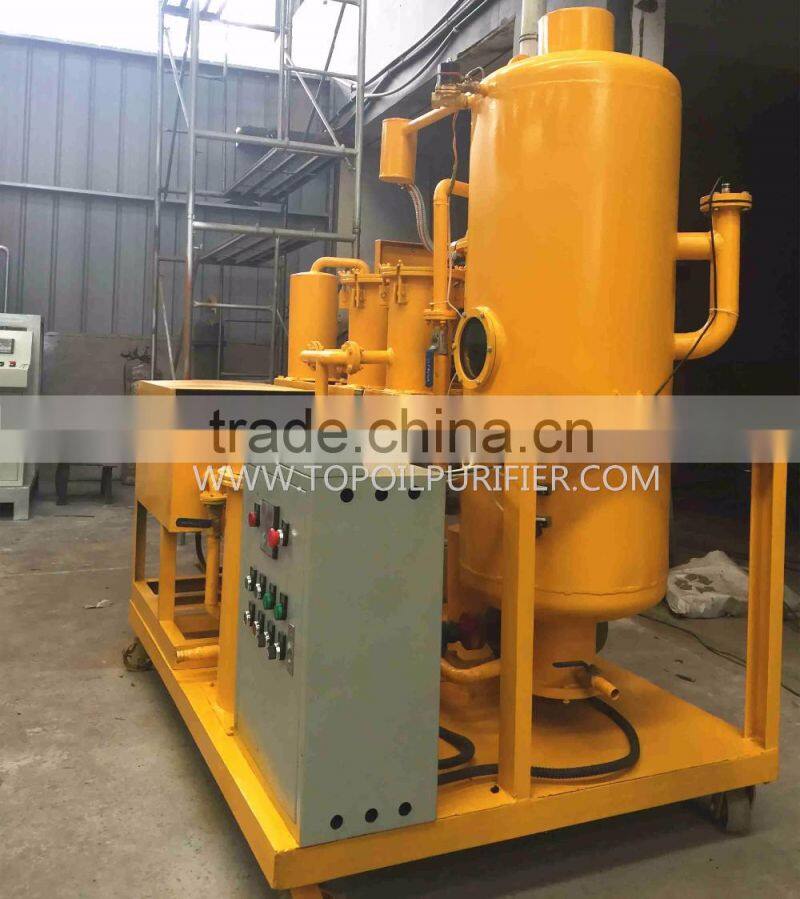

Other color machine bought by clients.

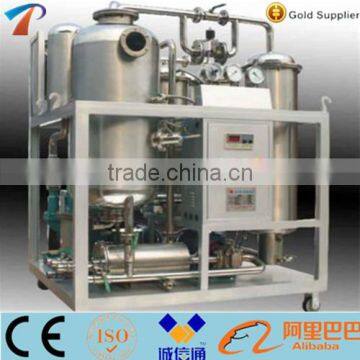

Stainless steel machine

On site of customer's place in Greece (for pre-filtration of further biodiesel production.)

Our Company

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.

Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.

Certificates

Office & Factory

Onstock & Customers

Our oil purification / recycling machines

Our customer site
