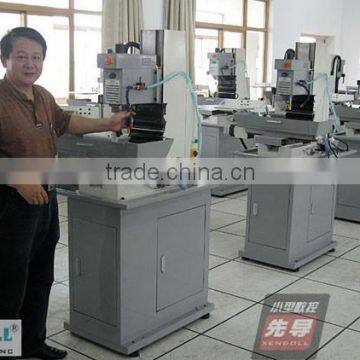

C31A Mini Cnc Mill,Mini CNCMilling Machine,Micro CNC Milling&Drilling Machine,XENDOLL CNC Milling
US$ 2,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Xendoll
Payment & Shipping
Payment Methods:
Port of Shipment:
Rongqi
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini CNCMilling Machine,Micro CNC Milling&Drilling Machine,XENDOLL CNC MillingUS$ 2,000 - 5,000MOQ: 1 Set -
Mini CNC Engraving and Milling MachineUS$ 2,000 - 5,000MOQ: 1 Set
-
J10002-CNC-A Mini Cnc MillUS$ 1,000 - 3,000MOQ: 1 Set
-
W10004M-CNC Mini CNC MillNegotiableMOQ: 1 Set
-
XENDOLL W20001 Mini On-hand Machine Sanding Grinding Christmas Gift DIY TOOLS Model MakingNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Guangdong, China
Brand Name
Xendoll
Model Number
C000031A
Type
Vertical
CNC or Not
CNC
Voltage
220V
Power(W)
1100W
Dimension(L*W*H)
900mm*950mm*1750mm
Weight
300KG
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
C000031A mini cnc millcan be operated by hand or computer
easy to learn and control
best choice for vocational education
ProductName: Mini CNC Milling&Drilling Machine
Model Number: C000031A
Technical indicators:
X-axis travel: 300 mm
Y-axis travel: 175 mm
Z-axis travel: 270 mm
Table Dimensions: 450 mm*160 mm
Spindle speed: 300~3500 rpm
Spindle motor power: 1100W
Spindle bore taper: MT#3
The largest diameter of milling cutter: 16 mm
Positioning accuracy: 0.03 mm
Repeated positioning accuracy: 0.02 mm
T-Slot size: 3-12-50 mm
Rapid feed rate: X-axis 2500 mm/min
Y-axis 2500 mm/min:Z-axis 2000 mm/min
Cutting feed rate: 1500 mm/min
CNC Controller:HNC-18XP/M or GSK 980MDc or Sinumerik 808D
Input voltage: AC220V/50Hz
Net/gross weight: 300KG/350KG
Machine tool size: 900mm*950mm*1750mm
Package size: 1100mm*1040mm*2000mm
Optional accessoies:
The forth axis
Tailstock
Flexibility mill collet
HSS milling cutter
Stand milling cutter MT#3
58 pcs kit assemble board
