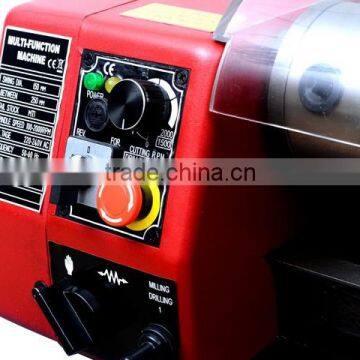

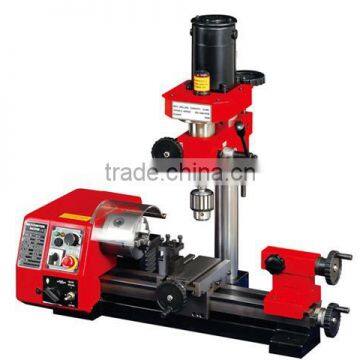

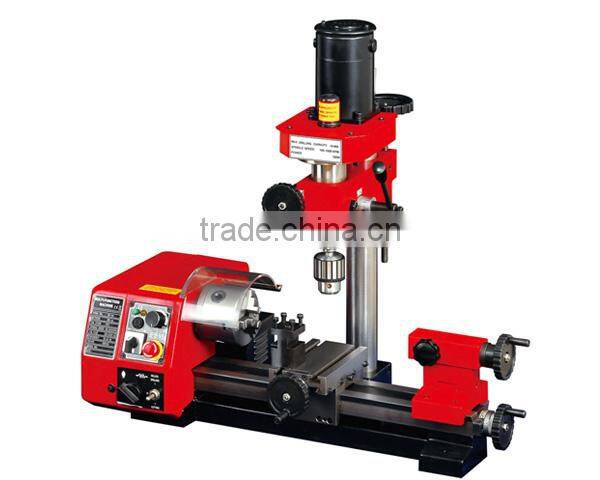

Mini Lathe & Drilling Machine, MT9510 Micro Multi-Purpose Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Xendoll
Payment & Shipping
Payment Methods:
Port of Shipment:
Rongqi
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Lathe With Digital Display J1001-A Micro Lathe,xendoll Machine,xendoll LatheNegotiableMOQ: 1 Set -
Mini Lathe,Light Duty Gear Head Lathe,small Metal Lathe for SalesNegotiableMOQ: 1 Set
-
Mini Variable Speed Drilling&milling Machine,mini Milling Machine,xendollNegotiableMOQ: 1 Set
-
Metal Band Saw,mini Band Saw,micro Band SawNegotiableMOQ: 1 Set
-
Hot Sell!!! Newest Hobby Mini Lathe XD0618NegotiableMOQ: 1 Set
Condition
New
Place of Origin
Guangdong, China
Brand Name
Xendoll
Model Number
MT9510
Type
Vertical
CNC or Not
Normal
Voltage
220V
Power(W)
150W
Dimension(L*W*H)
700*500*400mm
Weight
45KG
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Micro Multi-Purpose Machine
Feature:

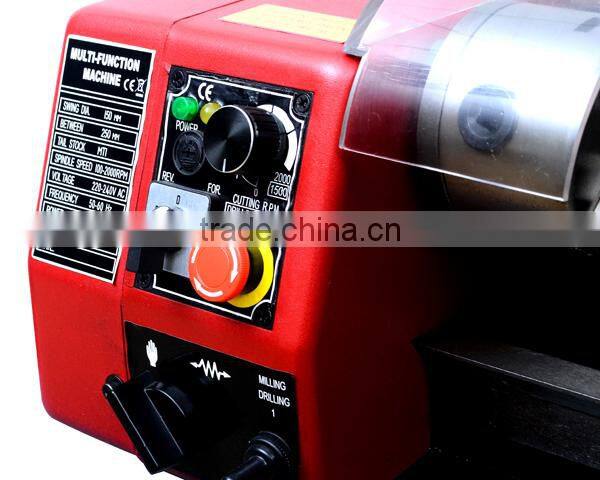

1) Safety switch
2) Variable speed
3) Four positions turret post

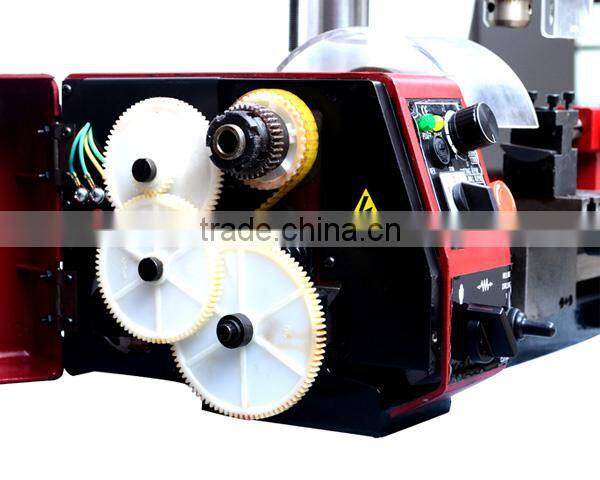

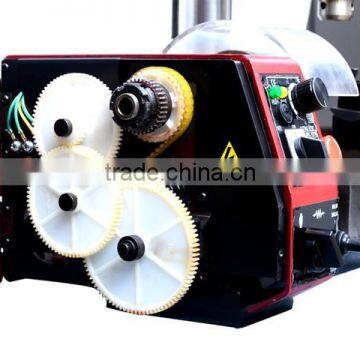

4) Complete set of change gear
5) Highly accurate
Specifications:
Cutting: | |
Process exact |
0.02mm |
Swing over bed |
140mm |
Distance between centers |
250mm |
Spindle taper |
MT#2 |
Tailstock taper |
MT#1 |
Spindle speed |
100 - 2,000rpm |
Range of threads |
a) Metric: 0.5 - 1.25mm (5 thread pitches) |
Output power |
150W |
Drilling and milling: | |
Max. drilling / milling capacity |
10mm |
Travel of drilling / milling spindle |
30mm |
Drilling / milling spindle speed |
100 - 1,300rpm |
T-slot |
8mm |
Output power |
150W |
Outer packing: | |
Carton dimensions |
700 x 500 x 400mm |
N.W |
40kg |
G.W |
45kg |
